Product Overview

The Lo-Carbon Solo Plus range from Vent-Axia has been specially designed for through the wall and ducted applications, suitable for internal bathrooms, toilets and other small rooms. Finished in white, the Lo-Carbon Solo Plus can be flush or surface mounted, with a 2 position 100mm circular spigot for rear entry or connecting to a vertical ducting system. The powerful centrifugal impeller allows installations using 100mm ducting in straight runs, whilst still achieving 15l/s as required by Building Regulations Approved Document F.

Continuous running products, such as the Lo-Carbon Solo Plus, installed in all wet areas of a dwelling are classed as a wholehouse ventilation system and therefore only need to move the amount of air as outlined in table 5.1a and 5.1b of Building Regulations Approved Document F.

The Lo-Carbon Solo Plus has an adjustable boost speed which is set at installation variable between a wall or duct setting for boost/override operation to meet Building Regulations thus ensuring minimum energy usage and low sound levels. All models have an optional speed for constant trickle ventilation (12l/s), selectable at installation. Depending on the model, the fan will switch from trickle (if selected) to boost via the pullcord/light switch/humidity sensor/PIR.

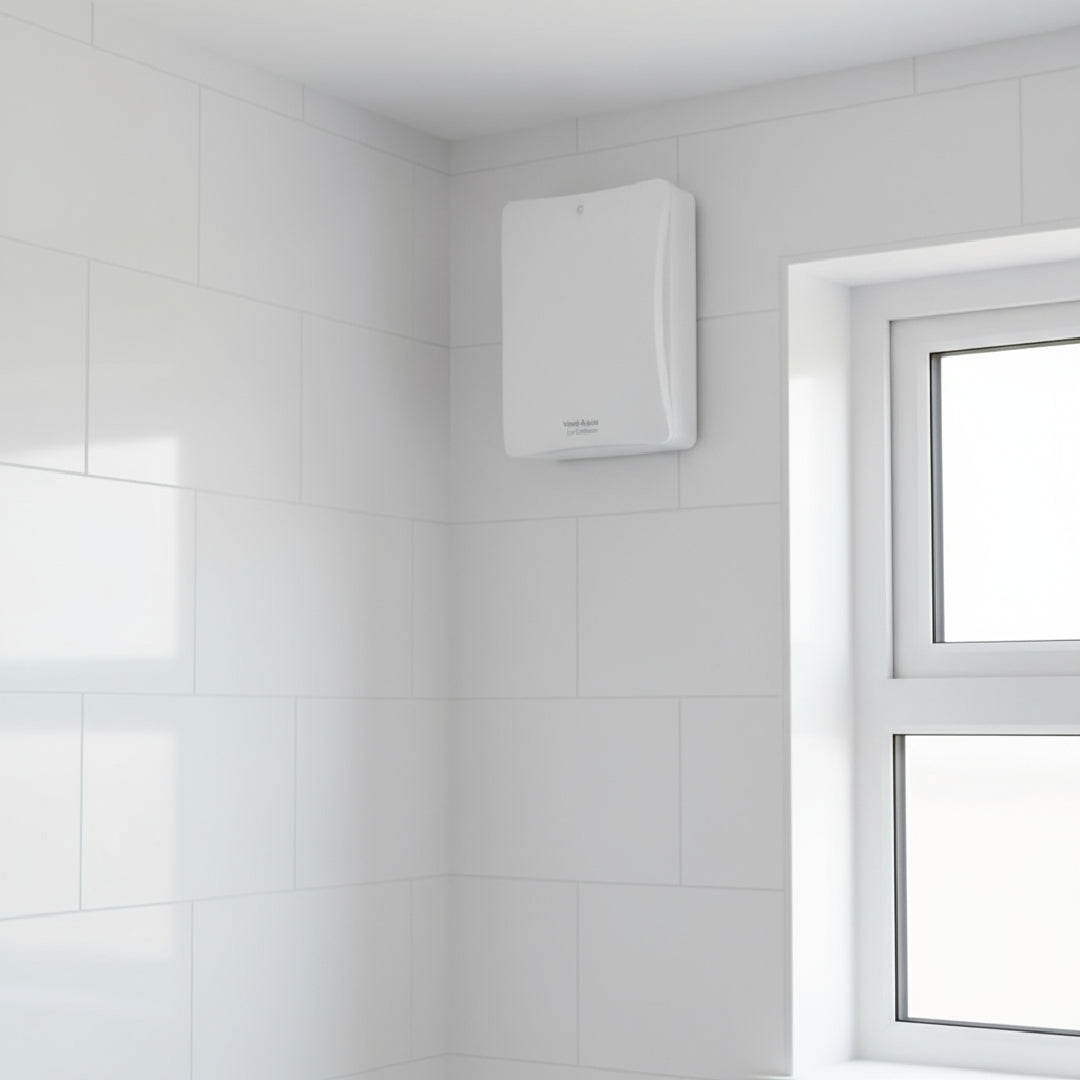

All models can be wall, panel or ceiling mounted and can be connected to either circular, rectangular or Vent-Axia’s flat ducting. Enclosure of the electrical components is manufactured from flame retardant grade material.

Criteria

• Specification:
  • Extract Performance l/s (m³/hr)-Low Trickle: 8 (28.8)
  • Extract Performance l/s (m³/hr)-High Trickle: 12 (43.2)
  • Extract Performance l/s (m³/hr)-Boost: 18 (64.8)
  • Power consumption-Low Trickle: 2.3W
  • Power consumption-High Trickle: 2.9W
  • Power consumption-Boost: 6W
  • Sound@3m - Low Trickle: 23.5 dB(A)
  • Sound@3m - High Trickle: 27 dB(A)
  • Sound@3m - Boost: 33.5 dB(A)
  • SFP (W/l/s)@ 0Pa: 0.33
  • Voltage: 240VAC~50Hz
  • Dimensions: H: 263mm x W: 224mm x D: 161mm
  • Product Weight: 2.2kg
• Features:
  • Reduces the home's carbon footprint
  • Up to 70% Energy Saving
  • Intergral Lo-Carbon Power Supply
  • Built-in washable filters
  • Meets current Building Regulations Appoved Documents F & L
  • IPX4 Rated
  • Flush or surface mountable
  • Adjustable rear or side exit spigot
  • Extremely low sound levels
  • 5 Year Motor Guarantee
  • Suitible for wall, ceiling, and panel mounting
  • SELV Models - Supplied with a remote transformer
  • SELV Version IPX7 Rated
Dimensions
• Manufacturer Code: 427485
• Barcode: 5015135427948

Features

• Reduces the home's carbon footprint
• Up to 70% Energy Saving
• Intergral Lo-Carbon Power Supply
• Built-in washable filters
• Meets current Building Regulations Appoved Documents F & L
• IPX4 Rated
• Flush or surface mountable
• Adjustable rear or side exit spigot
• Extremely low sound levels
• 5 Year Motor Guarantee
• Suitible for wall, ceiling, and panel mounting
• SELV Models - Supplied with a remote transformer
• SELV Version IPX7 Rated

Short Description

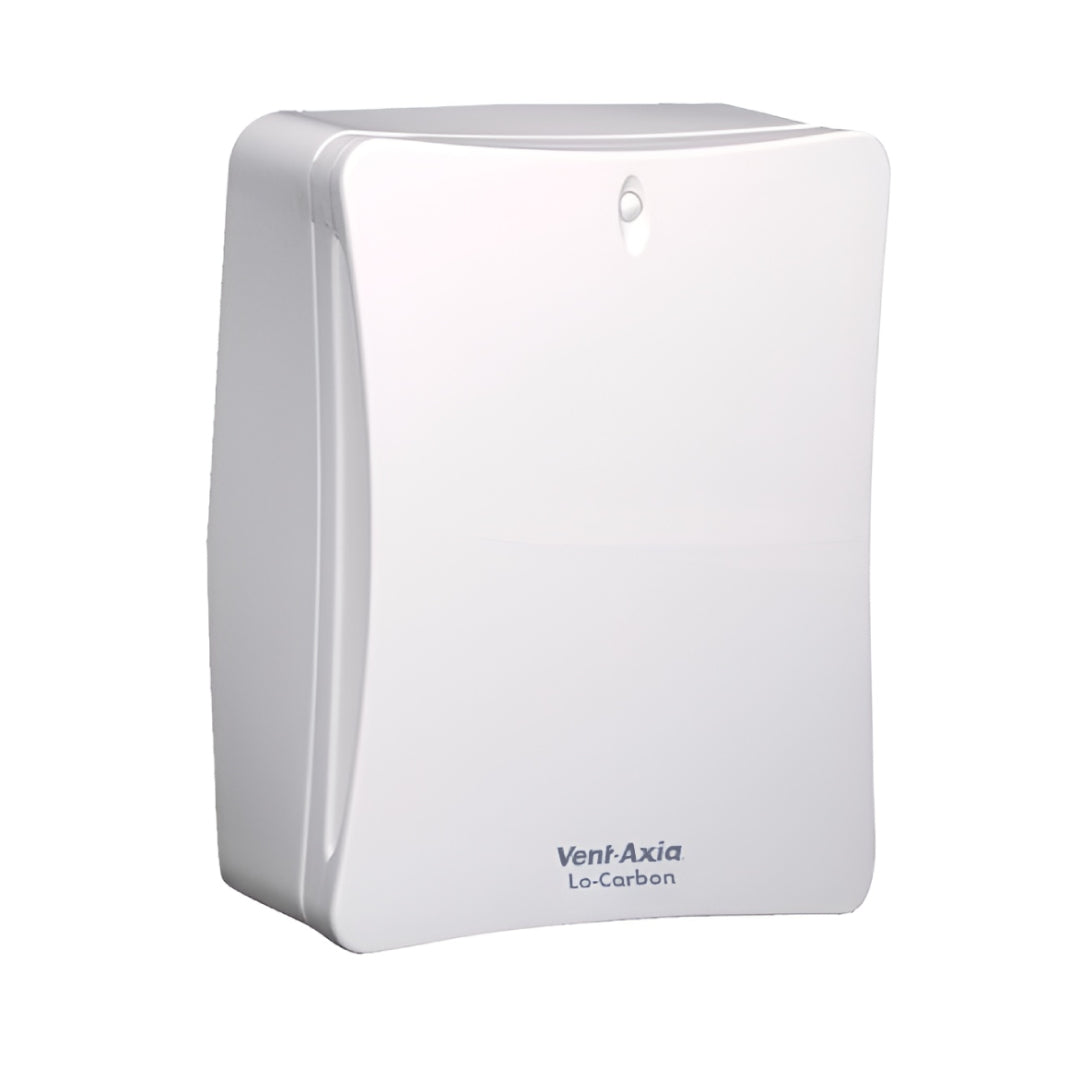

Vent-Axia Lo-Carbon Solo Plus SELV P Centrifugal Fan with pullcord - 427485

Specification

• Extract Performance l/s (m³/hr)-Low Trickle: 8 (28.8)
• Extract Performance l/s (m³/hr)-High Trickle: 12 (43.2)
• Extract Performance l/s (m³/hr)-Boost: 18 (64.8)
• Power consumption-Low Trickle: 2.3W
• Power consumption-High Trickle: 2.9W
• Power consumption-Boost: 6W
• Sound@3m - Low Trickle: 23.5 dB(A)
• Sound@3m - High Trickle: 27 dB(A)
• Sound@3m - Boost: 33.5 dB(A)
• SFP (W/l/s)@ 0Pa: 0.33
• Voltage: 240VAC~50Hz
• Diamensions: H: 263mm x W: 224mm x D: 161mm
• Product Weight: 2.2kg

Specification

Applicable Area	Bathroom, Laundry Room, Toilet
Backdraft Shutter	Yes
Collection Name	Solo Plus
Duct Size Diameter	105 mm
Extractor Type	Centrifugal
Fan Size Diameter	100 mm
Fan Speeds	3
Finish Or Colour	White
IP Rating	IPX7
Mounting	Ceiling, Panel, Wall
Pull Cord	Yes
Voltage	24 v
Depth	230 mm
Height	325 mm
Width	230 mm
