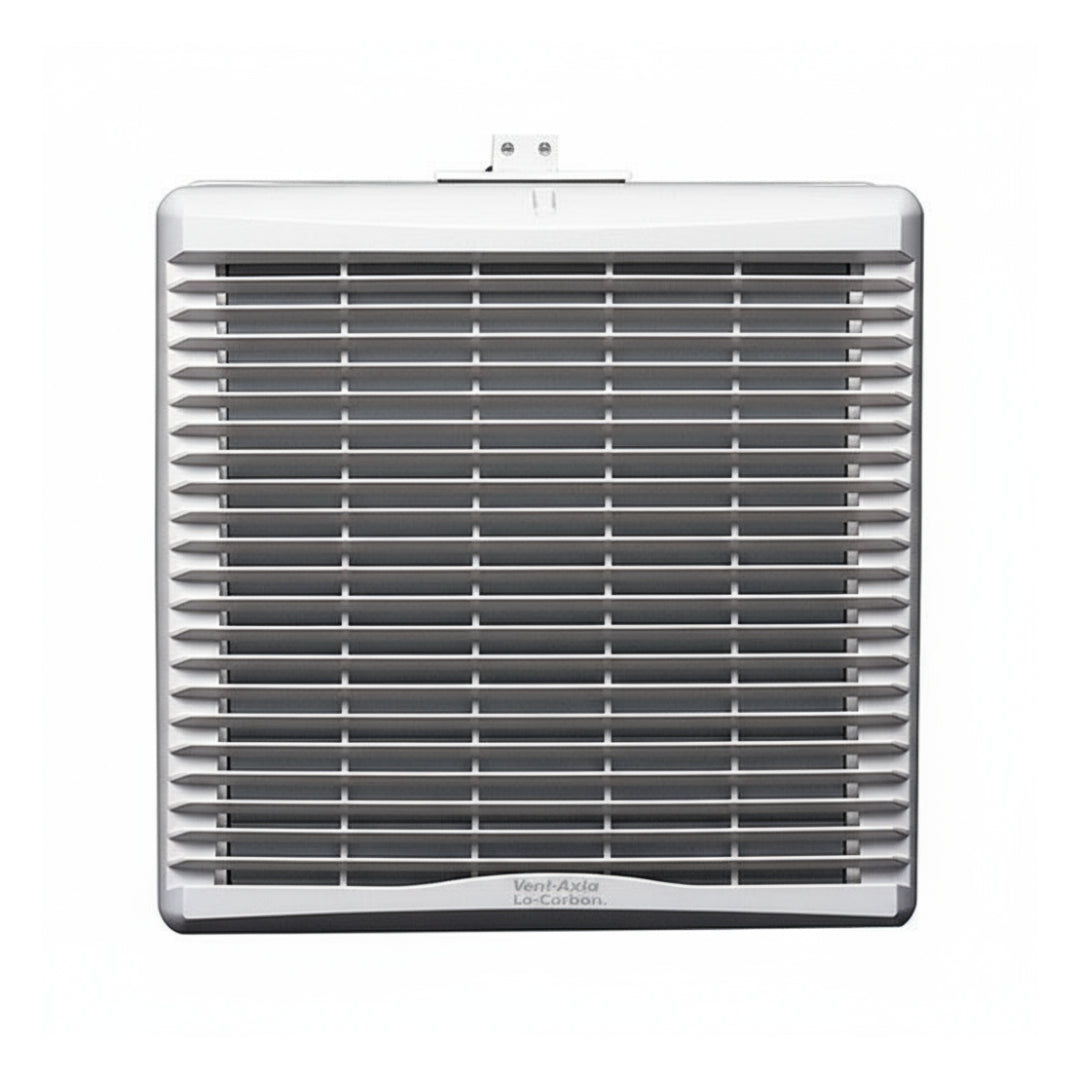

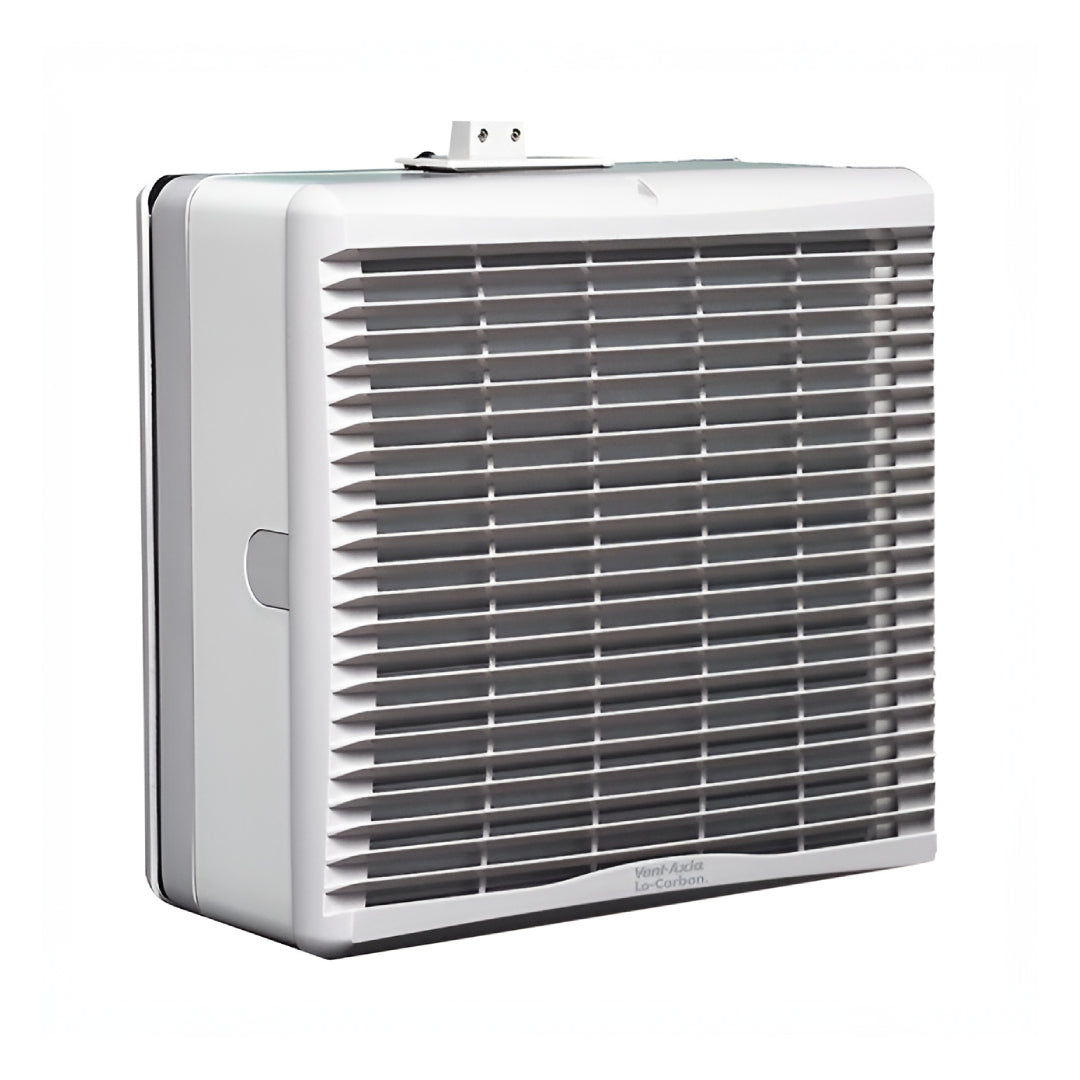

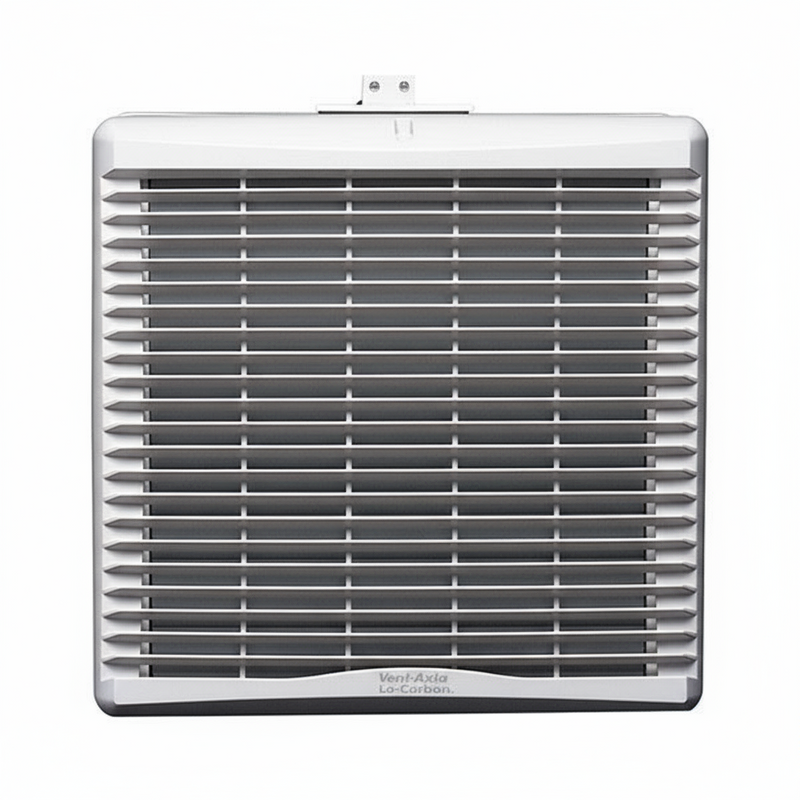

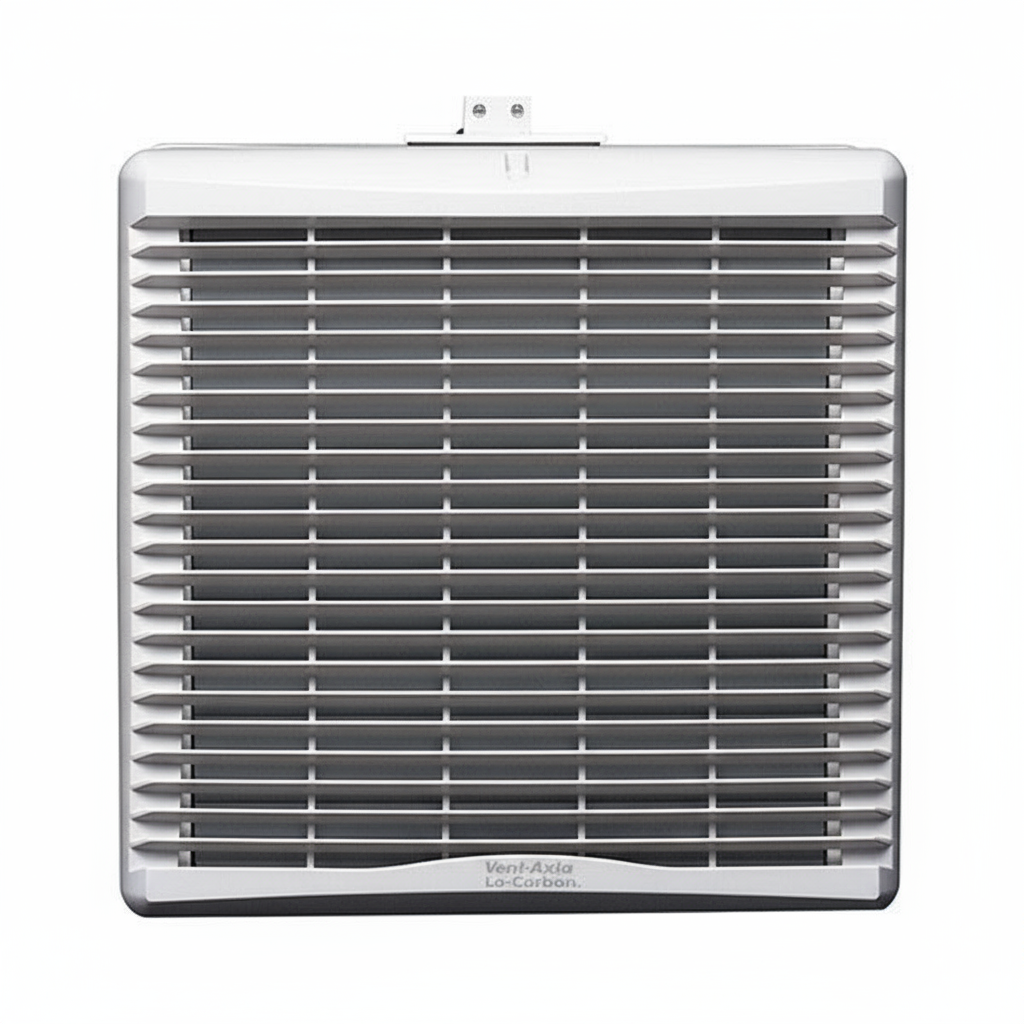

Vent-Axia Traditional T-Series TX12WW 12" Commercial Window Fan - W164110B

Product Overview

The Vent Axia Traditional T‑Series TX12WW 12″ Commercial Window Fan is a robust, high‑performance axial fan designed for commercial window installation. Powered by the brand’s M‑Tech motor, the unit delivers a strong airflow—up to 1,615 m³/h at its highest setting—while drawing only around 105 W of power and 0.51 A current at 240 V.

One of its standout features is the integrated, automatic louvre shutter behind the internal grille. This shutter opens instantly when the fan is active and can be set to remain open even when the fan is off—allowing natural ventilation while preserving security. The unit also supports glass or materials up to 32 mm thick for single or double glazing installations.

Installation and maintenance have been thoughtfully addressed: a top‑socket connector simplifies wiring, the unit is designed for mounting through glazing or wall/ceiling plates, and each component can be dismantled easily for cleaning without specialist tools. Operating noise is rated around 48 dB(A) at 3 m, making it suitable for noise‑sensitive commercial spaces.

Downloads

Download vent-axia-w164110-datasheet

Specification
