Product Overview

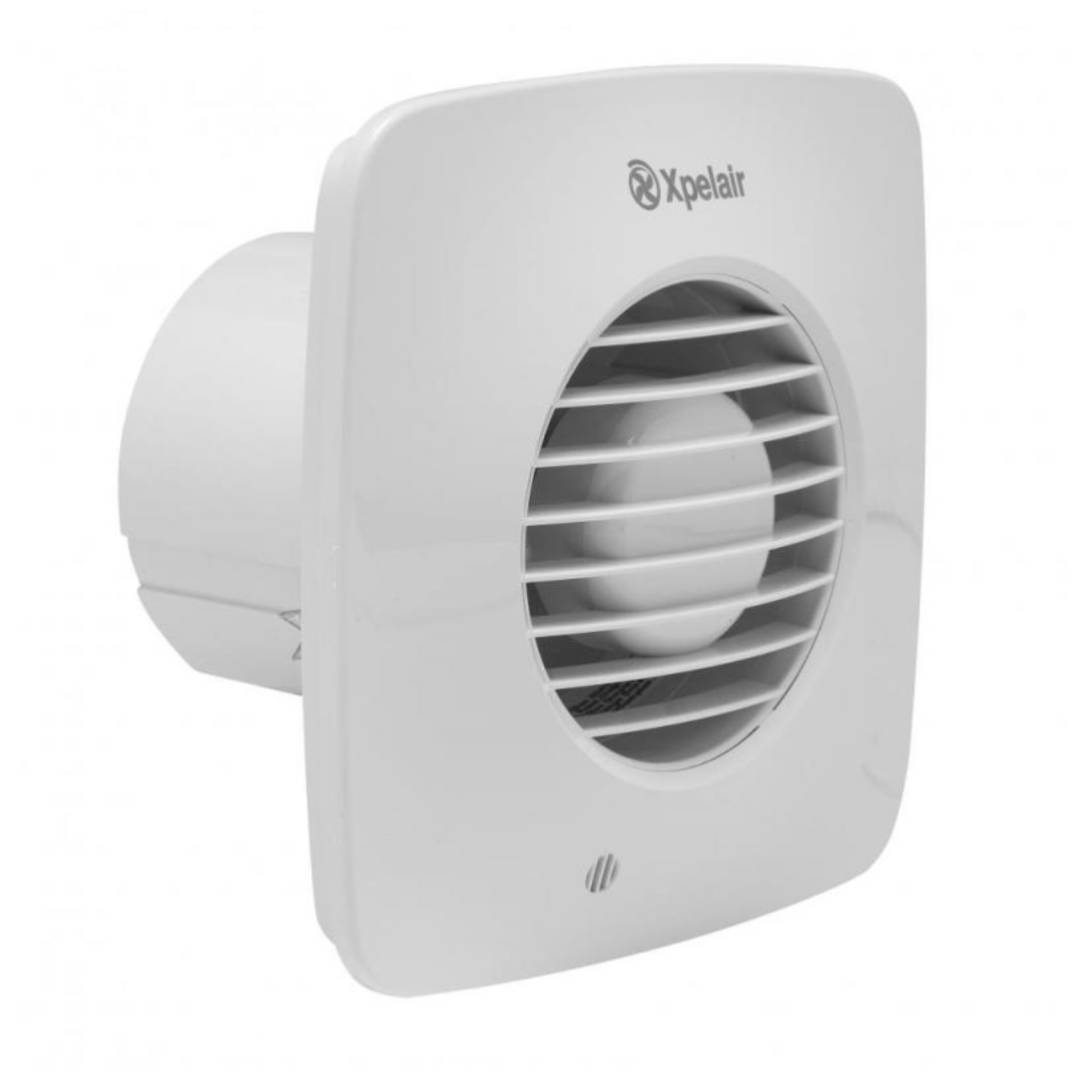

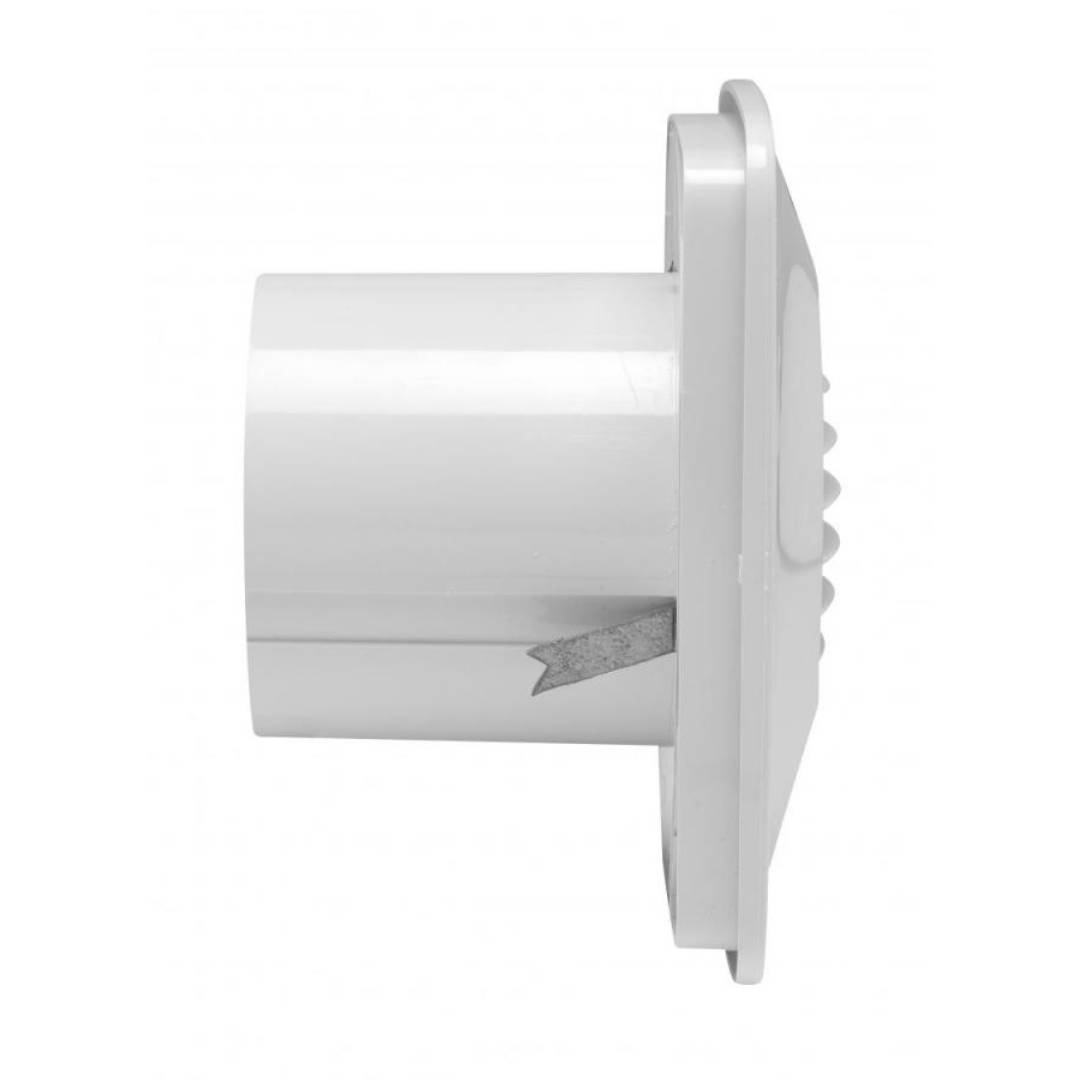

The Simply Silent DX100B two-speed, intermittent extractor fans are supplied as fan-only units and are ideal for replacement installation in bathrooms, shower rooms, cloakrooms and toilets. Just like the entire Simply Silent family, these fans control humidity, odours and mould growth, are finished in cool white and available in either round or square.

Criteria

• Specification:
  • Electrical power rating (W): 6.7 / 7.7
  • Extract performance (FID, M³/h) Max/Min: 54 / 76
  • Extract performance (FID, l/s) Max/Min: 15 / 21
  • Sound pressure level db(A)@3m: 22 / 34
  • Specific Fan Power (SFP) (W/l/s): 0.45 / 0.37
  • Operation Speeds: 2
  • UK Guarantee: 2 Years
  • IPX Rating: 4
  • Pullcord: Yes
• Features:
  • Extremely quiet running - only 22dBA@3M at low speed
  • Stylish traditional grille design available in square and round
  • 2 speeds 15l/s and 21l/s - selectable at install
  • Suitable for wall, ceiling, panel and window fitting
  • Complies with building regulations Part F and L
• Delivery_Info:

  Order by 7pm for Next Working Day Delivery

• Manufacturer Code: 93002AW

Features

• Extremely quiet running - only 22dBA@3M at low speed
• Stylish traditional grille design available in square and round
• 2 speeds 15l/s and 21l/s - selectable at install
• Suitable for wall, ceiling, panel and window fitting
• Complies with building regulations Part F and L

Specification

• Electrical power rating (W): 6.7 / 7.7
• Extract performance (FID, M³/h) Max/Min: 54 / 76
• Extract performance (FID, l/s) Max/Min: 15 / 21
• Sound pressure level db(A)@3m: 22 / 34
• Specific Fan Power (SFP) (W/l/s): 0.45 / 0.37
• Operation Speeds: 2
• UK Guarantee: 2 Years
• IPX Rating: 4
• Pullcord: Yes

Specification

Applicable Area	Bathroom, Laundry Room, Toilet
Backdraft Shutter	Yes
Extractor Type	Axial
Fan Size Diameter	100 mm
Fan Size Diameter Inches	4 INCH
Finish Or Colour	White
IP Rating	IPX4
Minimum Voltage	220 v
Mounting	Ceiling, Wall, Window
Number Of Speeds	2
Pull Cord	Yes
Silent Running	Yes
Voltage	240 v
Height	178.5 mm
Width	178.5 mm
