Product Overview

Simply Silent DX100 square grille fascia 4" 100mm extract fan, featuring Ghost Air Movement Technology for quiet running, with integral pullcord for on/off control. Features humidistat and timer control which boosts when humidity in the room increases while the timer continues to work after the fan is switched off. The timer is adjustable at installation from 30 seconds to 30 minutes.

Criteria

• Specification:
  • Electrical power rating (W): 6.7 / 7.7
  • Extract performance (FID, M³/h) Max/Min: 54 / 76
  • Extract performance (FID, l/s) Max/Min: 15 / 21
  • Sound pressure level db(A)@3m: 22 / 34
  • Specific Fan Power (SFP) (W/l/s): 0.45 / 0.37
  • Operation Speeds: 2
  • UK Guarantee: 2 Years
  • IPX Rating: 4
  • Pullcord: Yes
  • Timer: Yes
  • Humidistat: Yes
• Features:
  • Extremely quiet running - only 22dBA@3M at low speed
  • Stylish traditional grille design available in square and round
  • 2 speeds 15l/s and 21l/s - selectable at install
  • Suitable for wall, ceiling, panel and window fitting
  • Complies with building regulations Part F and L
• Delivery_Info:

  Order by 7pm for Next Working Day Delivery

• Manufacturer Code: 93020AW

Features

• Extremely quiet running - only 22dBA@3M at low speed
• Stylish traditional grille design available in square and round
• 2 speeds 15l/s and 21l/s - selectable at install
• Suitable for wall, ceiling, panel and window fitting
• Complies with building regulations Part F and L

Short Description

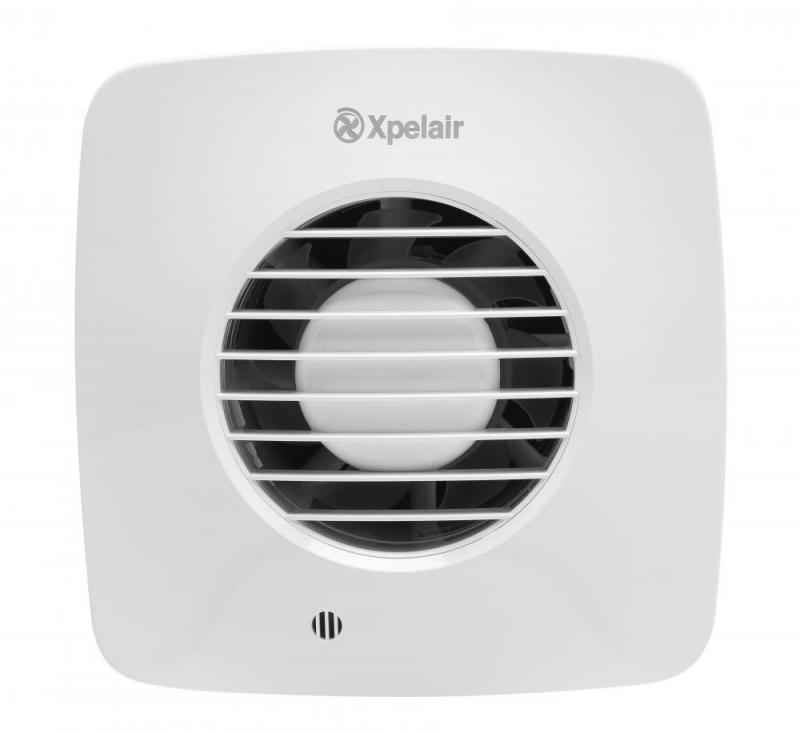

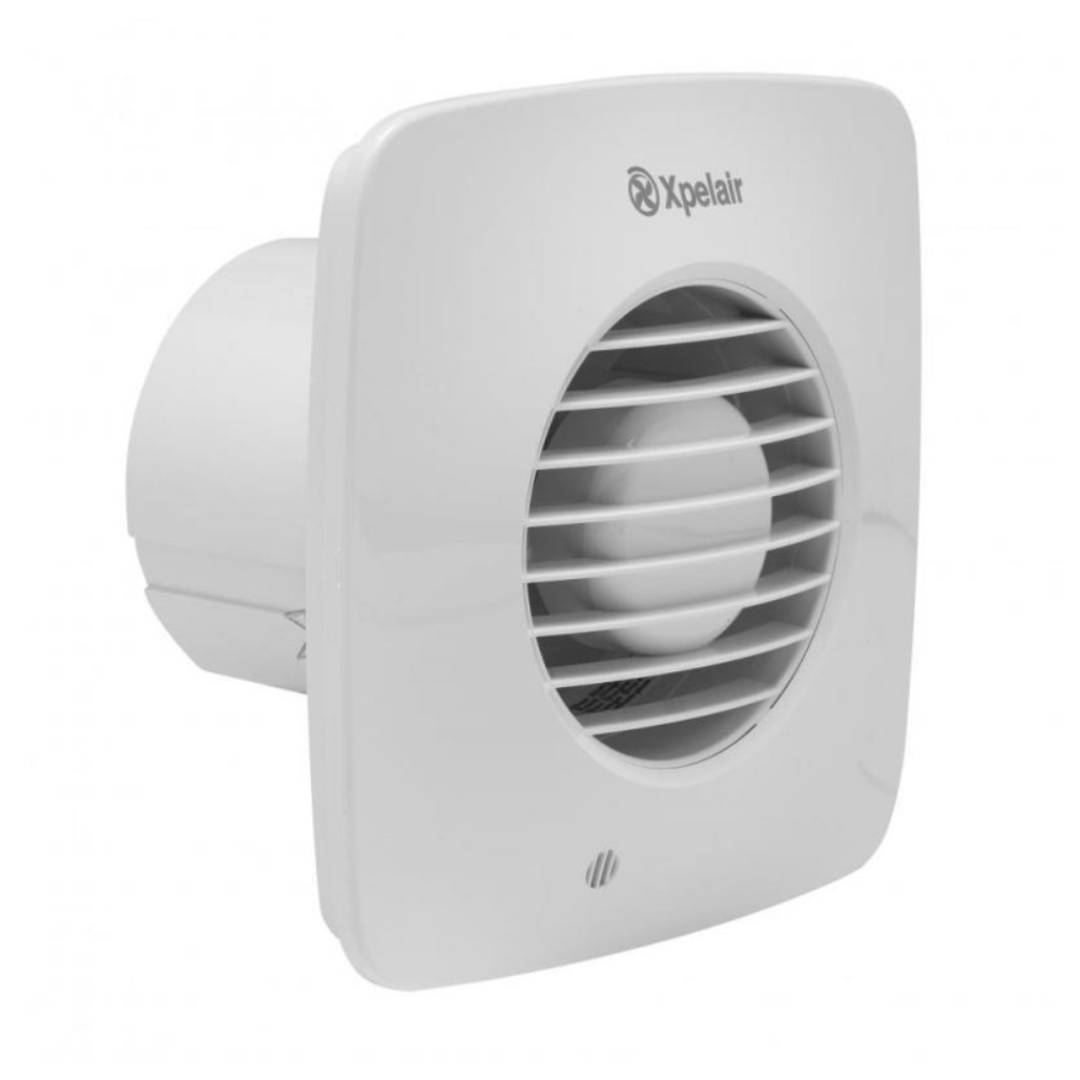

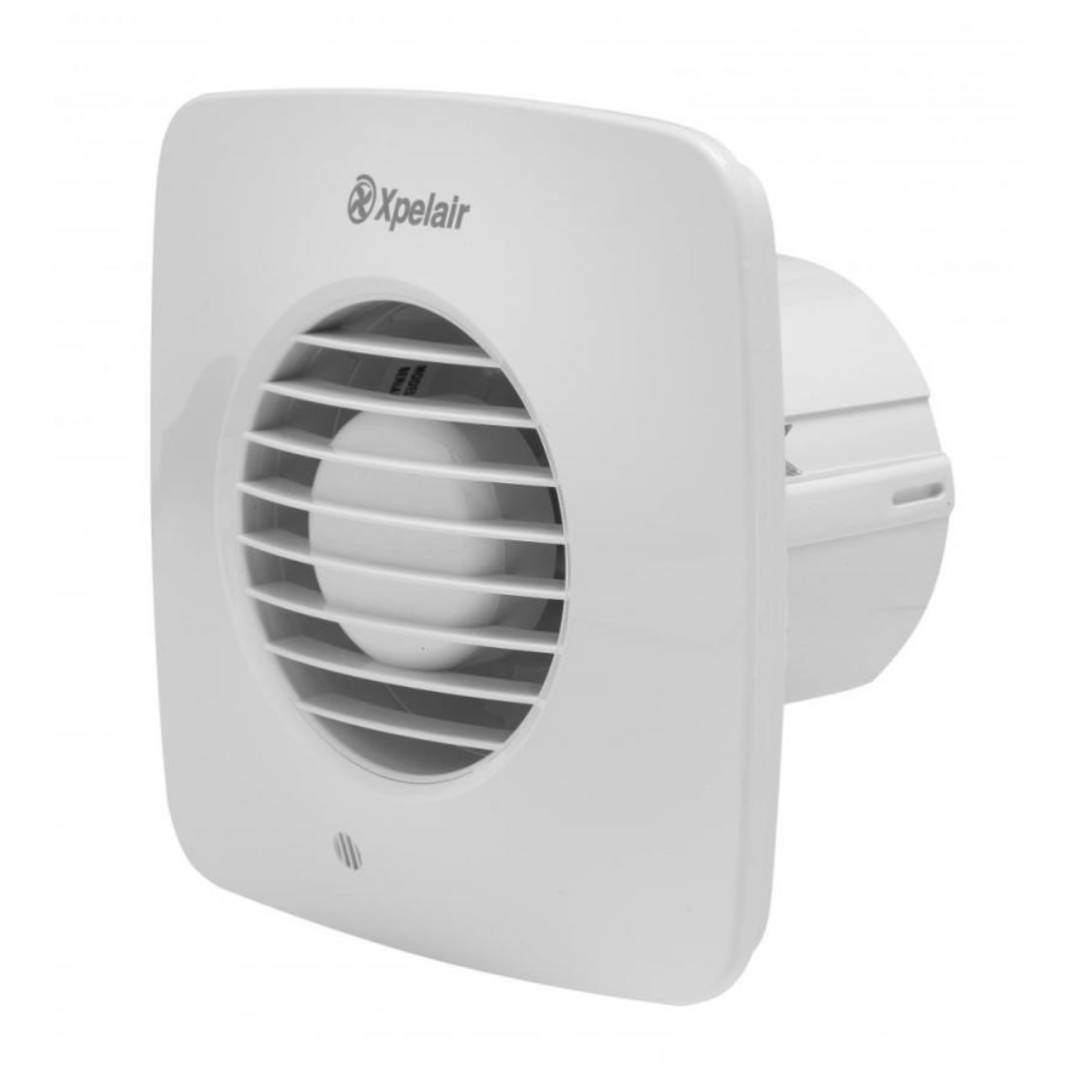

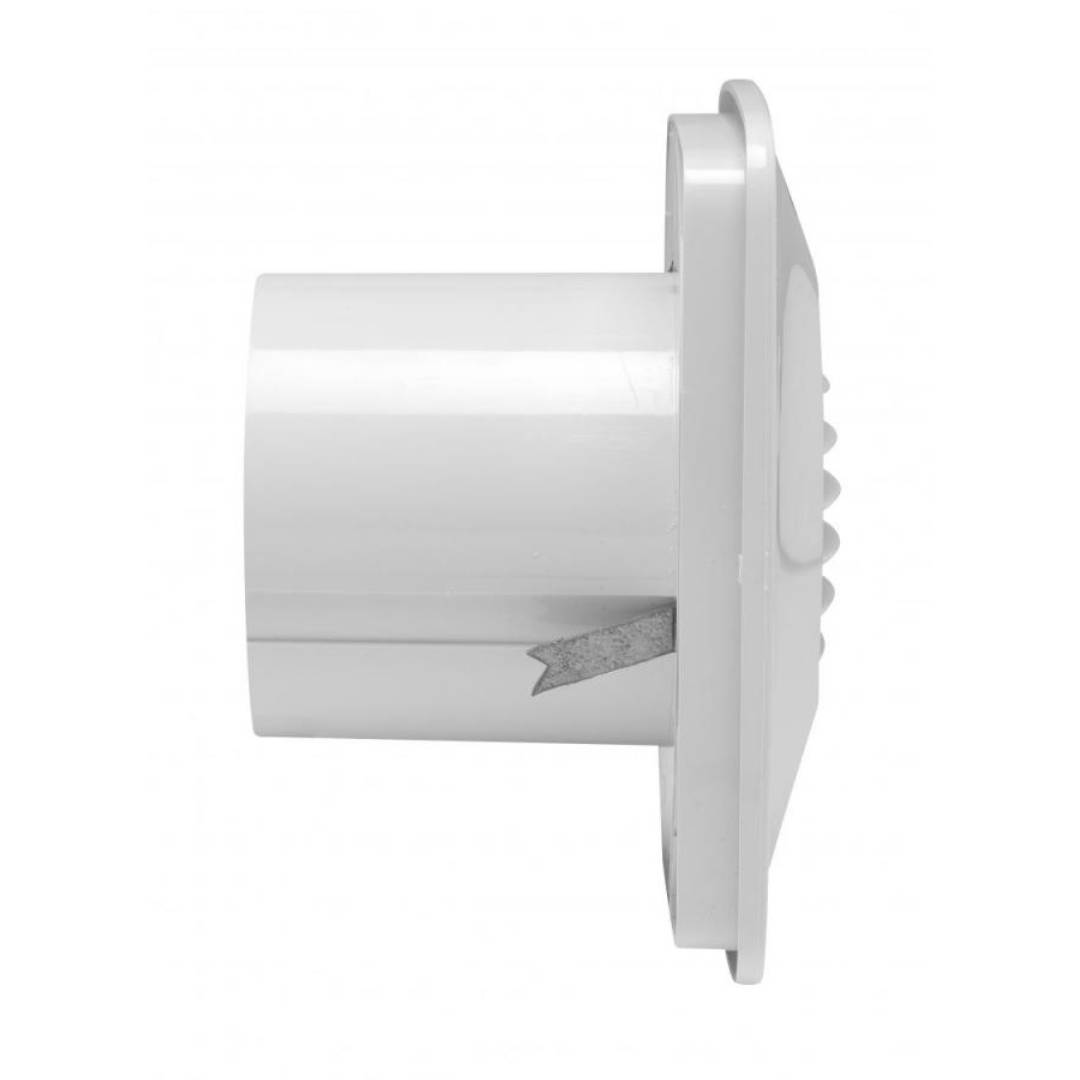

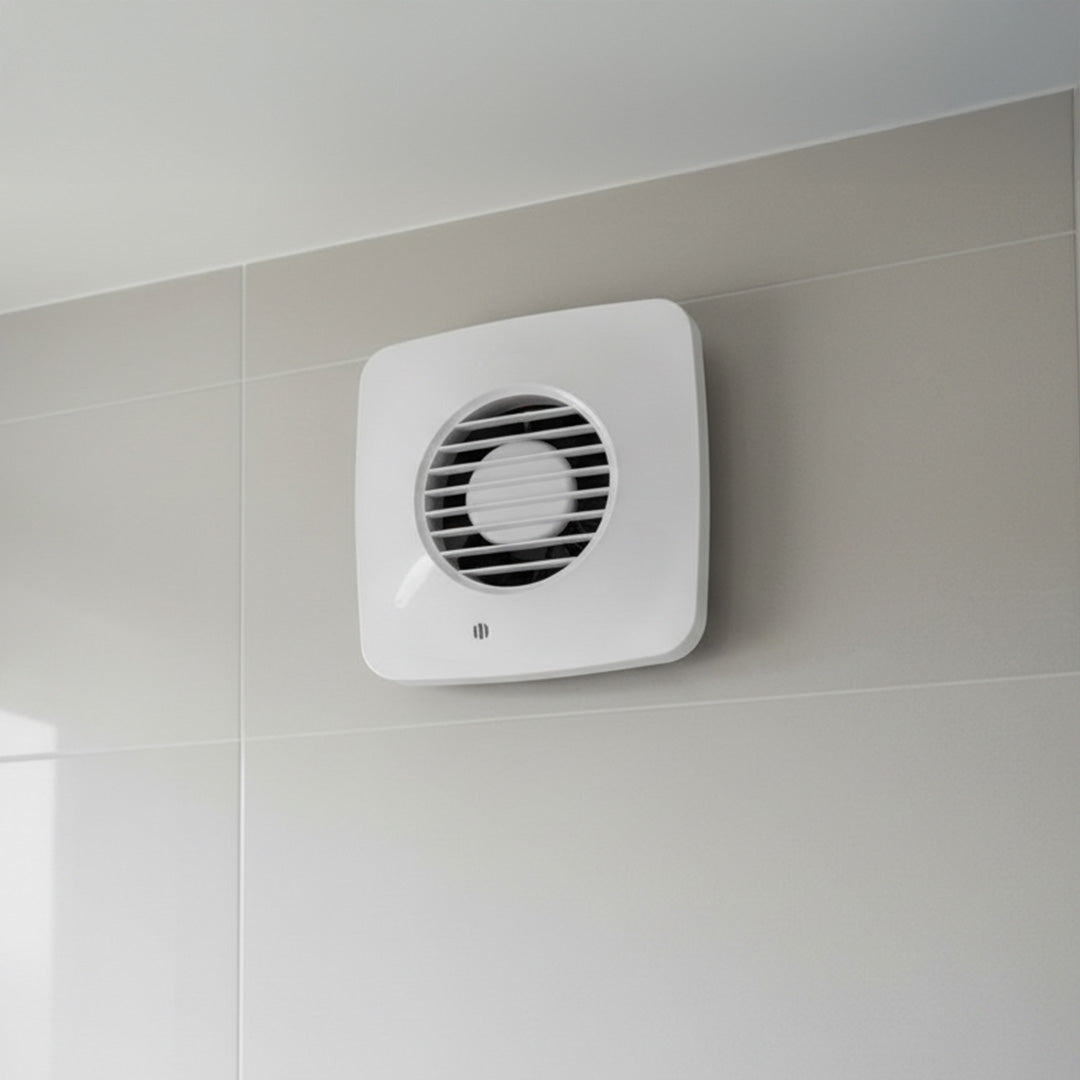

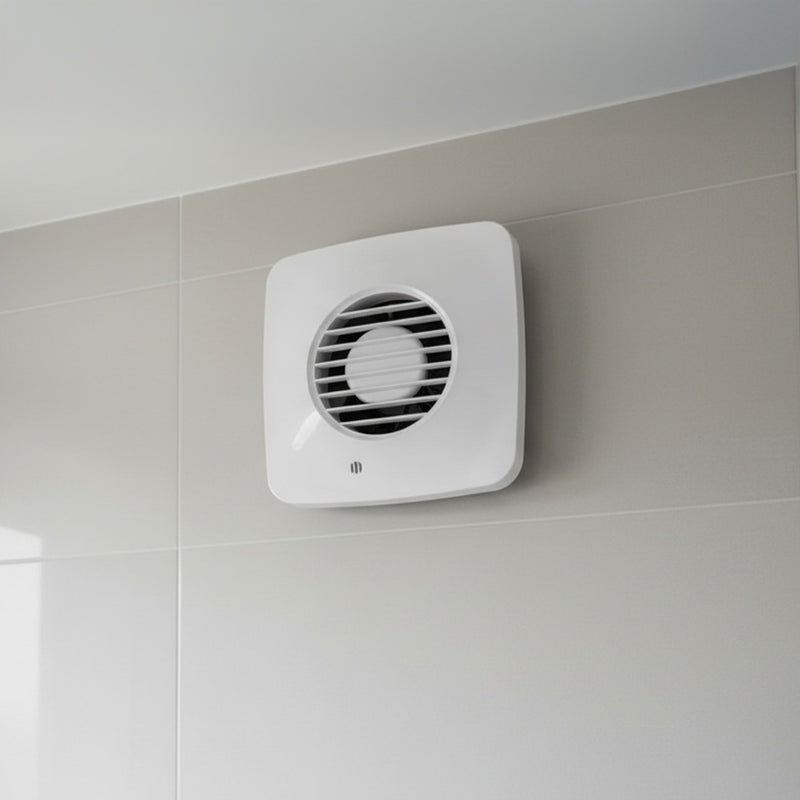

Xpelair 93020AW Simply Silent DX100BHTPS Humidistat Pullcord Square Extractor Fan

Specification

• Electrical power rating (W): 6.7 / 7.7
• Extract performance (FID, M³/h) Max/Min: 54 / 76
• Extract performance (FID, l/s) Max/Min: 15 / 21
• Sound pressure level db(A)@3m: 22 / 34
• Specific Fan Power (SFP) (W/l/s): 0.45 / 0.37
• Operation Speeds: 2
• UK Guarantee: 2 Years
• IPX Rating: 4
• Pullcord: Yes
• Timer: Yes
• Humidistat: Yes

Specification

Applicable Area	Bathroom, Laundry Room, Toilet
Backdraft Shutter	No
Collection Name	Simply Silent
Duct Size Diameter	98 mm
Extractor Type	Axial
Fan Size Diameter	4 INCH
Fan Speeds	2
Finish Or Colour	White
Humidistat	Yes
IP Rating	IPX4
Lip Depth	35.7 mm
Minimum Voltage	220 v
Mounting	Ceiling, Wall, Window
Pull Cord	Yes
Silent Running	Yes
Voltage	240 v
Height	178.5 mm
