Product Overview

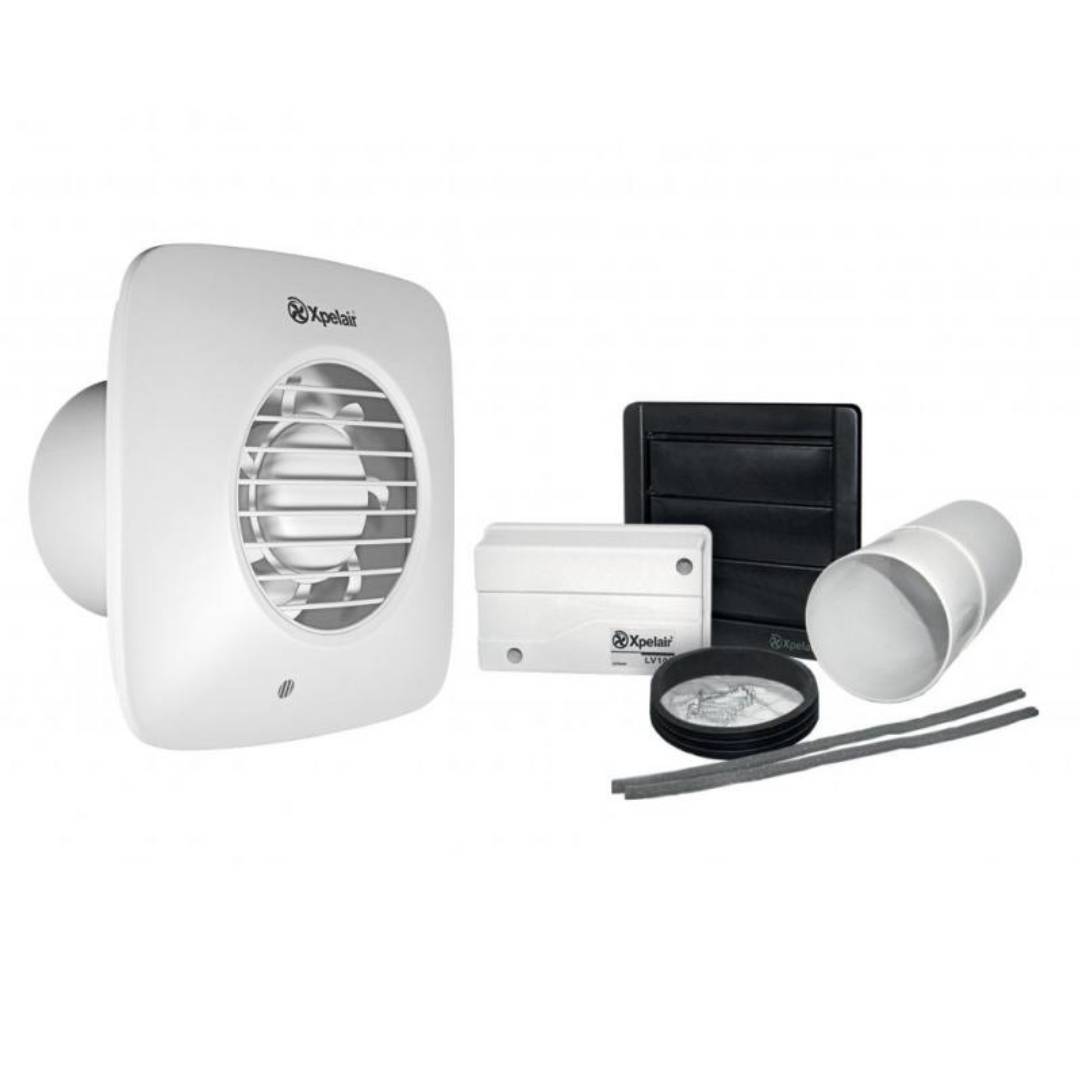

Simply Silent LV100 square grille fascia 4" 100mm extract fan with integral over-run timer featuring Ghost Air Movement Technology for quiet running. For use with an external switch or sensor. Is typically connected to the room lighting circuit. Fan continues to work after the fan is switched off. The timer is adjustable at installation from seconds to 30 minutes. Supplied with wall fitting kit comprising of outer grille, telescopic wall tube, gasket and foam strips. Supplied with 12V transformer.

Criteria

• Specification:
  • Electrical power rating (W): 7.4 / 8.4
  • Extract performance (FID, M³/h) Max/Min: 54 / 76
  • Extract performance (FID, l/s) Max/Min: 15 / 21
  • Sound pressure level db(A)@3m: 22 / 34
  • Specific Fan Power (SFP) (W/l/s): 0.49 / 0.40
  • Operation Speeds: 2
  • UK Guarantee: 2 Years
  • IPX Rating: 4
  • Timer: Yes
  • Universal Mounting Kit: Yes
• Features:
  • Extremely quiet running - only 22dBA@3M at low speed
  • Stylish traditional grille design available in square and round
  • Supplied with wall fitting kit - complete one-box installation solution
  • 2 speeds 15l/s and 21l/s - selectable at install
  • Suitable for wall, ceiling, panel and window fitting
  • Complies with building regulations Part F and L
  • Includes 12V SELV transformer
• Delivery_Info:

  Order by 7pm for Next Working Day Delivery

• Manufacturer Code: 93032AW

Features

• Extremely quiet running - only 22dBA@3M at low speed
• Stylish traditional grille design available in square and round
• Supplied with wall fitting kit - complete one-box installation solution
• 2 speeds 15l/s and 21l/s - selectable at install
• Suitable for wall, ceiling, panel and window fitting
• Complies with building regulations Part F and L
• Includes 12V SELV transformer

Short Description

Xpelair 93032AW Low Volt 12v Simply Silent Timer Square LV100TS

Specification

• Electrical power rating (W): 7.4 / 8.4
• Extract performance (FID, M³/h) Max/Min: 54 / 76
• Extract performance (FID, l/s) Max/Min: 15 / 21
• Sound pressure level db(A)@3m: 22 / 34
• Specific Fan Power (SFP) (W/l/s): 0.49 / 0.40
• Operation Speeds: 2
• UK Guarantee: 2 Years
• IPX Rating: 4
• Timer: Yes
• Universal Mounting Kit: Yes

Specification

Applicable Area	Bathroom, Laundry Room, Toilet
Backdraft Shutter	Yes
Collection Name	Simply Silent
Duct Size Diameter	98 mm
Extraction Rate Litres Second	21 l
Extractor Type	Axial
Fan Size Diameter	4 INCH
Fan Speeds	2
Finish Or Colour	White
Installation Kit	Yes
IP Rating	IPX4
Lip Depth	35.7 mm
Minimum Voltage	220 v
Mounting	Ceiling, Panel, Wall, Window
Silent Running	Yes
Timer	Yes
Voltage	12 v
Height	178.5 mm
Weight	0.01 KG
Width	178.5 mm
