Product Overview

The Simply Silent Contour C6 two-speed, intermittent extractor fan range has been designed to blend seamlessly with the surrounding decor. These fans control humidity, odours and mould growth effectively in kitchens, utility rooms, larger bathrooms and individual offices. Discover the beauty of silence.

Criteria

• Specification:
  • Electrical power rating (W): 12.9 / 28.4
  • Extract performance (FID, M³/h) Max/Min: 216 / 248
  • Extract performance (FID, l/s) Max/Min: 60 / 69
  • Sound pressure level db(A)@3m: 42.3 / 44.6
  • Specific Fan Power (SFP) (W/l/s): 0.22 / 0.41
  • Operation Speeds: 2
  • UK Guarantee (Years): 2
  • IPX Rating: 4
  • Timer: Yes
• Features:
  • Ghost Air Movement Technology enables quiet running
  • Sleek design with interchangeable fascia options available in square and round
  • 2 speeds 60l/s and 69l/s - selectable at install
  • Suitable for wall, ceiling, panel and window fitting
  • Knock-out section for side entry wiring
  • Complies with building regulations Part F and L
• Guarantee: 3 Years
• Manufacturer Code: 93172AW

Features

• Ghost Air Movement Technology enables quiet running
• Sleek design with interchangeable fascia options available in square and round
• 2 speeds 60l/s and 69l/s - selectable at install
• Suitable for wall, ceiling, panel and window fitting
• Knock-out section for side entry wiring
• Complies with building regulations Part F and L

Short Description

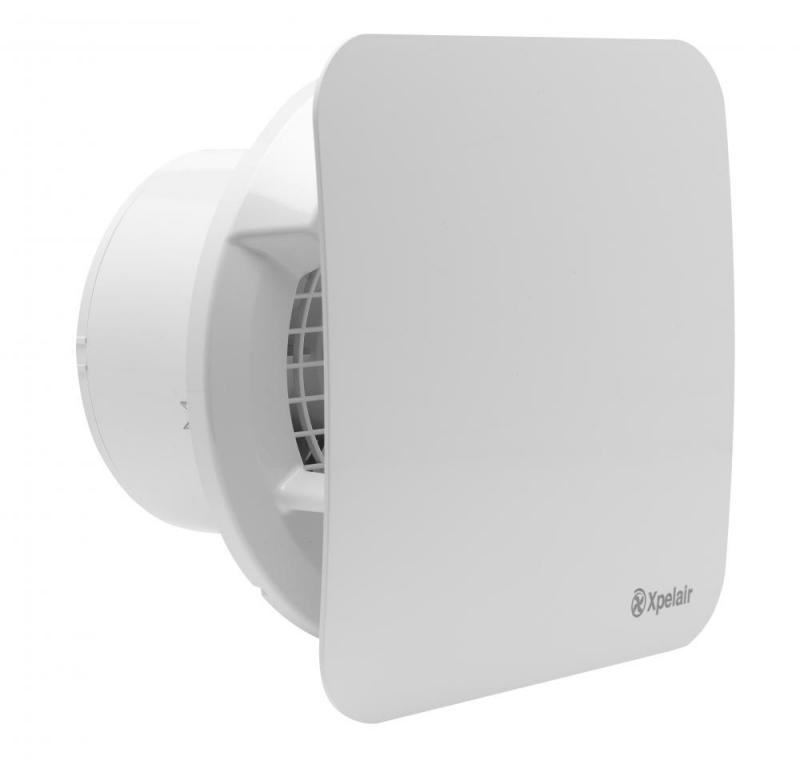

Xpelair C6TS Simply Silent Contour 6"/150mm Square Extractor Fan w/ Timer

Specification

• Electrical power rating (W): 12.9 / 28.4
• Extract performance (FID, M³/h) Max/Min: 216 / 248
• Extract performance (FID, l/s) Max/Min: 60 / 69
• Sound pressure level db(A)@3m: 42.3 / 44.6
• Specific Fan Power (SFP) (W/l/s): 0.22 / 0.41
• Operation Speeds: 2
• UK Guarantee (Years): 2
• IPX Rating: 4
• Timer: Yes

Downloads

Download Xpelair C6 Product Brochure

Specification

Applicable Area	Bathroom, Laundry Room, Office, Toilet
Collection Name	Simply Silent
Duct Size Diameter	148 mm
Extractor Type	Axial
Fan Size Diameter	150 mm
Finish Or Colour	White
IP Rating	IPX4
Lip Depth	52 mm
Minimum Voltage	220 v
Mounting	Ceiling, Panel, Wall, Window
Number Of Speeds	2
Pull Cord	No
Silent Running	Yes
Timer	Yes
Voltage	240 v
Height	228 mm
