Product Overview

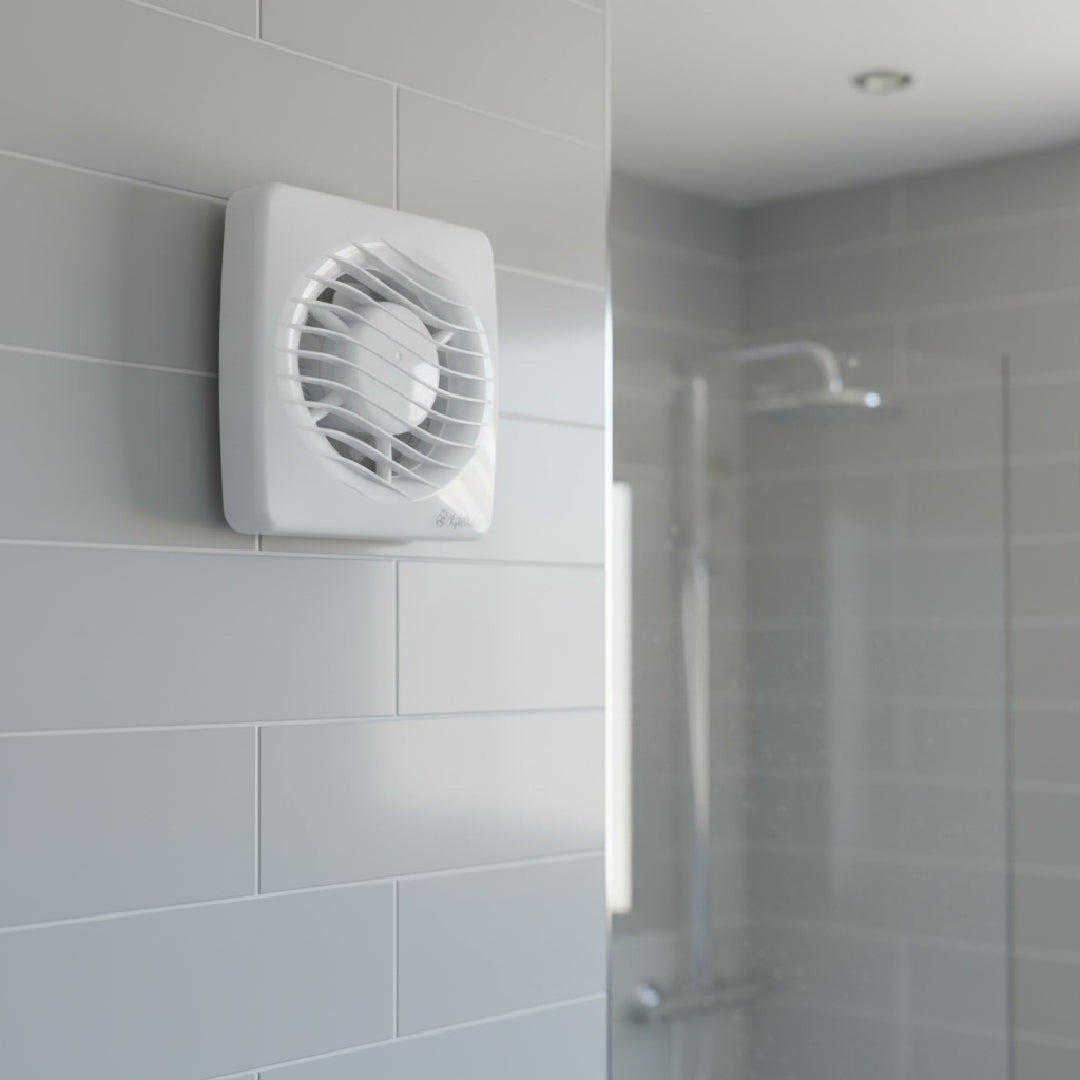

A bestseller, the Xpelair DX100 range are cost-effective, compact and easy-to install single speed extractor fans that are suitable for a wide range of domestic and commercial applications including bathrooms, shower rooms and toilets including zones 1 & 2.

This model, the DX100HTA (manufacturer’s code: 92567AW) is the 100 mm (4 inch) standard model with the valuable addition of an humidistat - to give flexible control options.

The humidistat can be configured to turn on the extractor fan automatically when the relative humidity is at a set-point between 50 and 90 per cent (adjustable on installation). This axial extractor fan is IP X5 rated and BEAB approved. The maximum fan performance is 21 l/s.

Available at our highly competitive prices (and backed by our Price Match Guarantee). We’ll even deliver it for free the next day to your home, commercial premises or site, if you order by 3pm.

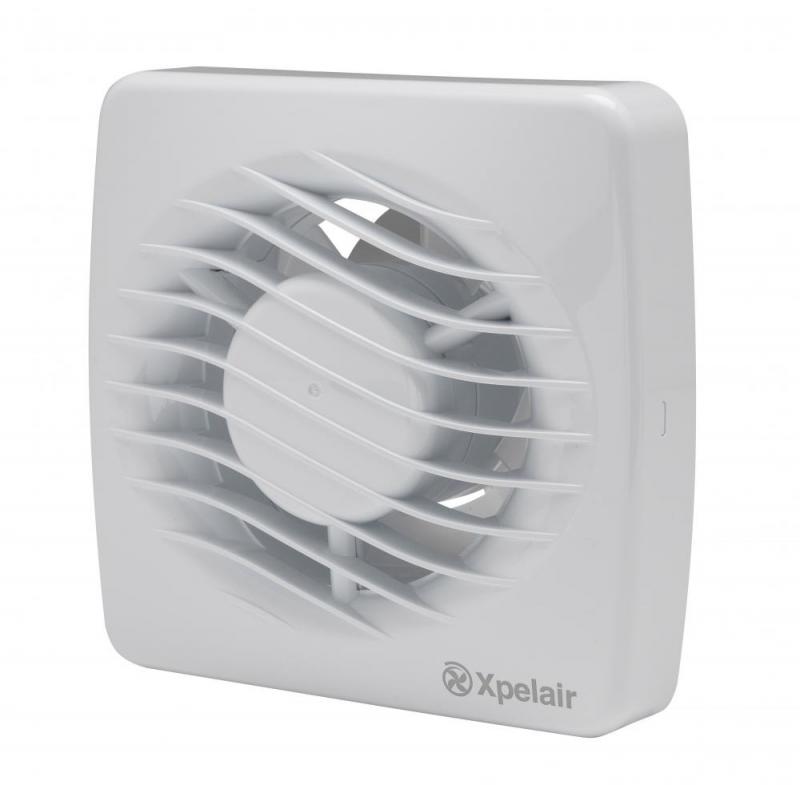

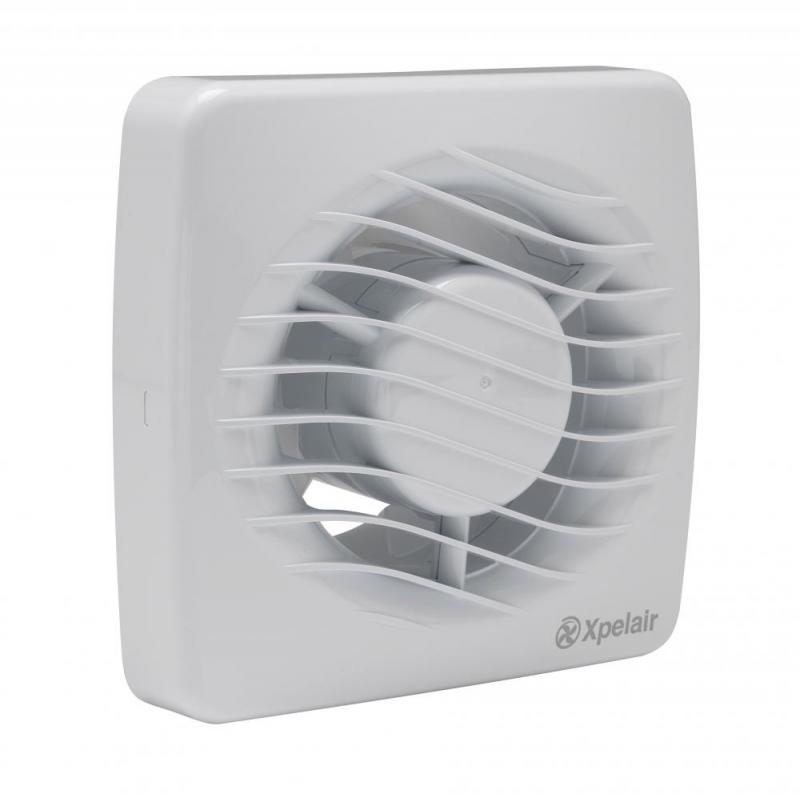

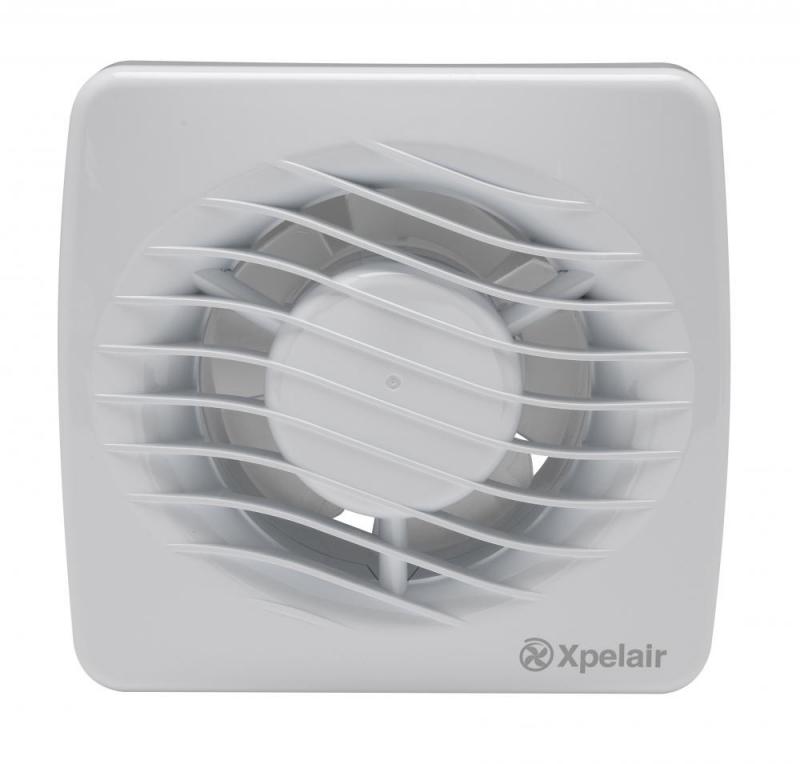

The DX 100HTA comes with a softly curved flow line grille design with will blend into wall or ceiling décor, whilst the shallow depth of the outlet spigot ensures compact window installation.

Also included is a universal mounting kit (wall tube, gasket x2, outer grille, skirt moulding for window). The well thought-out design incorporates an air operated backdraught shutter (to reduce energy loss), outer grille and ducting.

The grille simply clips off for easy cleaning and the DX100 has a lubricated-for-life motor and thermal cut-out protection for you peace of mind.

Criteria

• Specification:
  • 76 (FID, m³/h) Maximum Air Flow
  • 21 (FID, l/s) Maximum Air Flow
  • 35 (dB(A) @3m) Sound Pressure Level
  • 12W Electrical Power Rating
  • IPX5 IP Rating
  • 1.2Kg Weight
  • 4 Year Guarantee
• Features:
  • Single speed axial unit with humidistat.
  • Automatic On/Off operation by integral humidity sensor, adjustable from 50-90% RH.
  • Timer Function adjustable (2-20mins)
  • Includes universal mounting kit.
  • Integral adjustable run-on timer.
  • Humidity sensor
• Guarantee: 4 Years
• Manufacturer Code: 92567AW

Features

• Single speed axial unit with humidistat.
• Automatic On/Off operation by integral humidity sensor, adjustable from 50-90% RH.
• Timer Function adjustable (2-20mins)
• Includes universal mounting kit.
• Integral adjustable run-on timer.
• Humidity sensor

Short Description

Xpelair DX100HTA 100mm Axial Extract Fan (92567AW)

Specification

• 76 (FID, m³/h) Maximum Air Flow
• 21 (FID, l/s) Maximum Air Flow
• 35 (dB(A) @3m) Sound Pressure Level
• 12W Electrical Power Rating
• IPX5 IP Rating
• 1.2Kg Weight
• 4 Year Guarantee

Specification

Applicable Area	Bathroom, Laundry Room, Toilet
Collection Name	DX100
Duct Size Diameter	100 mm
Extraction Rate Litres Second	21 l
Extractor Type	Axial
Fan Size Diameter	4 INCH
Fan Speeds	1
Finish Or Colour	White
Humidistat	Yes
Installation Kit	Yes
IP Rating	IPX5
Lip Depth	43 mm
Minimum Voltage	220 v
Mounting	Ceiling, Wall, Window
Timer	Yes
Voltage	240 v
Height	155 mm
Weight	1.2 KG
Width	165 mm
