Product Overview

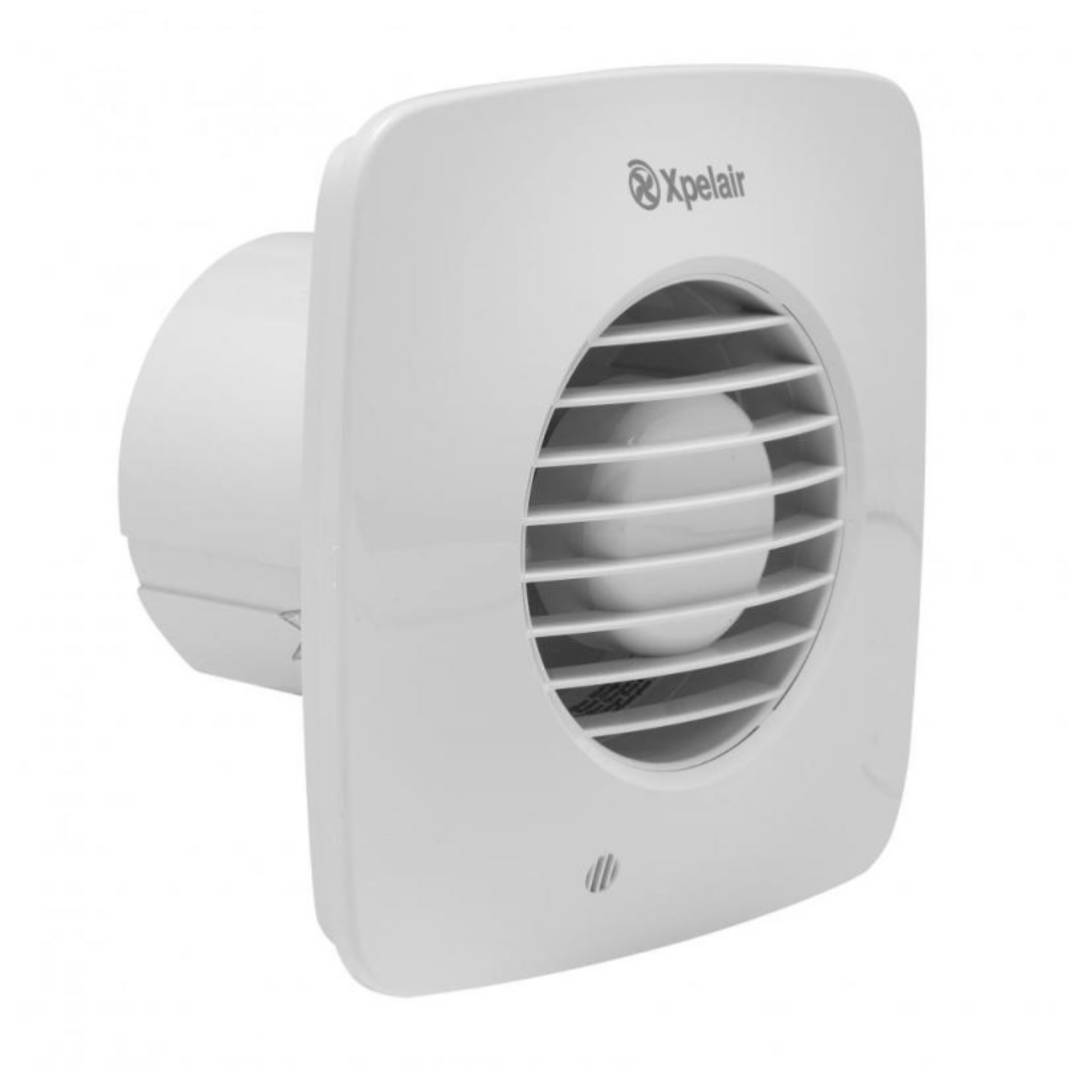

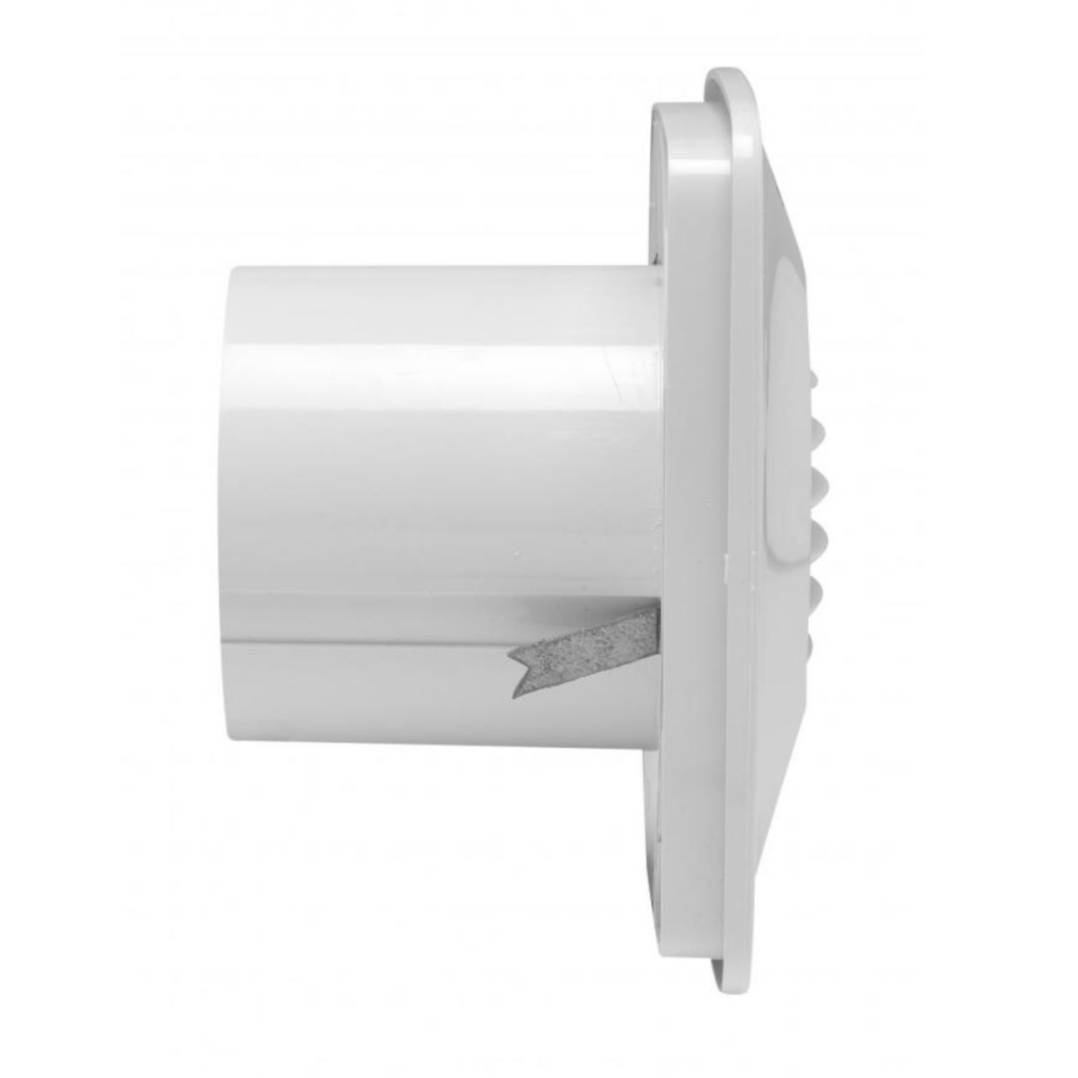

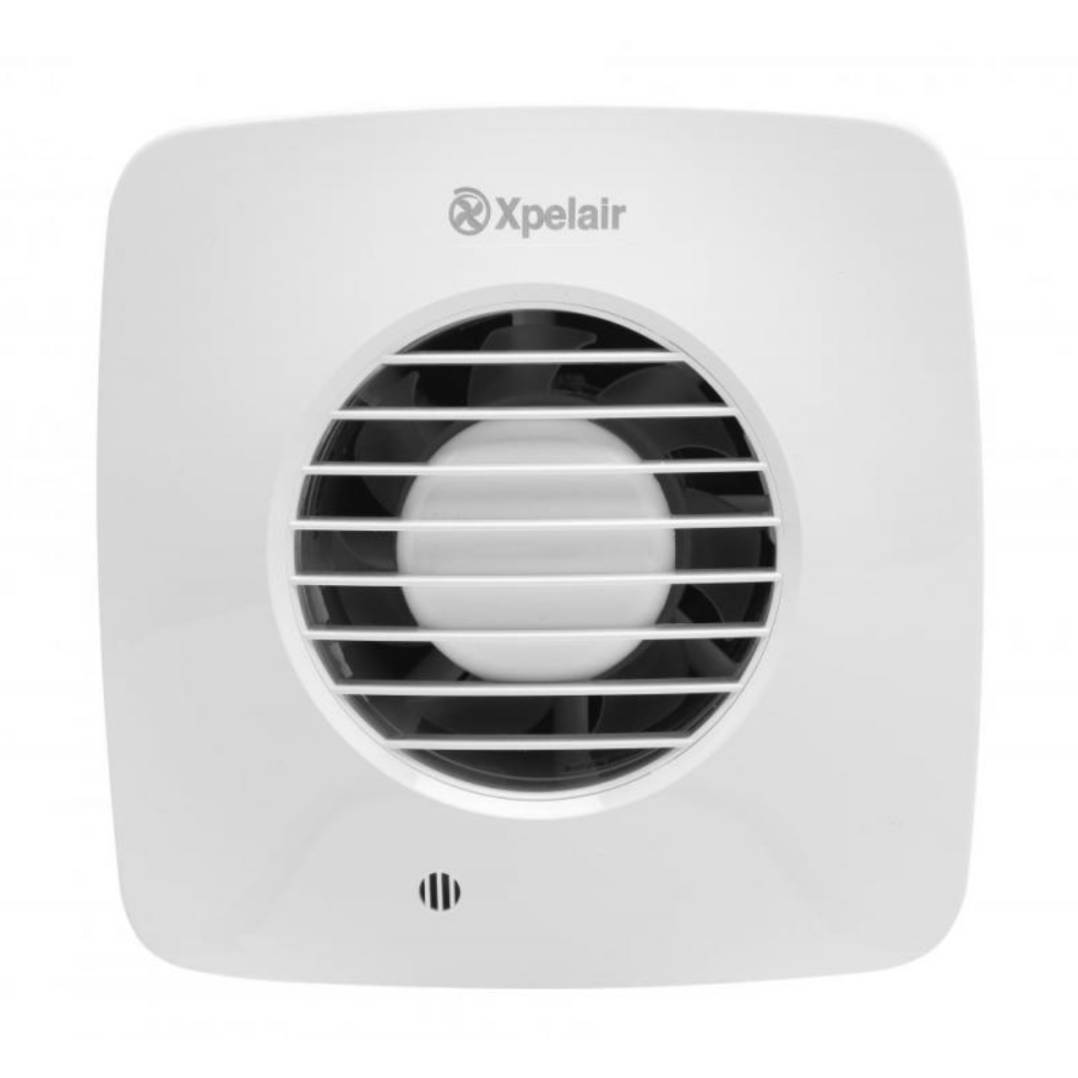

DX100PIRR 4" 100mm extractor fan with integral PIR proximity sensor to activate the fan when movement is detected in the room.

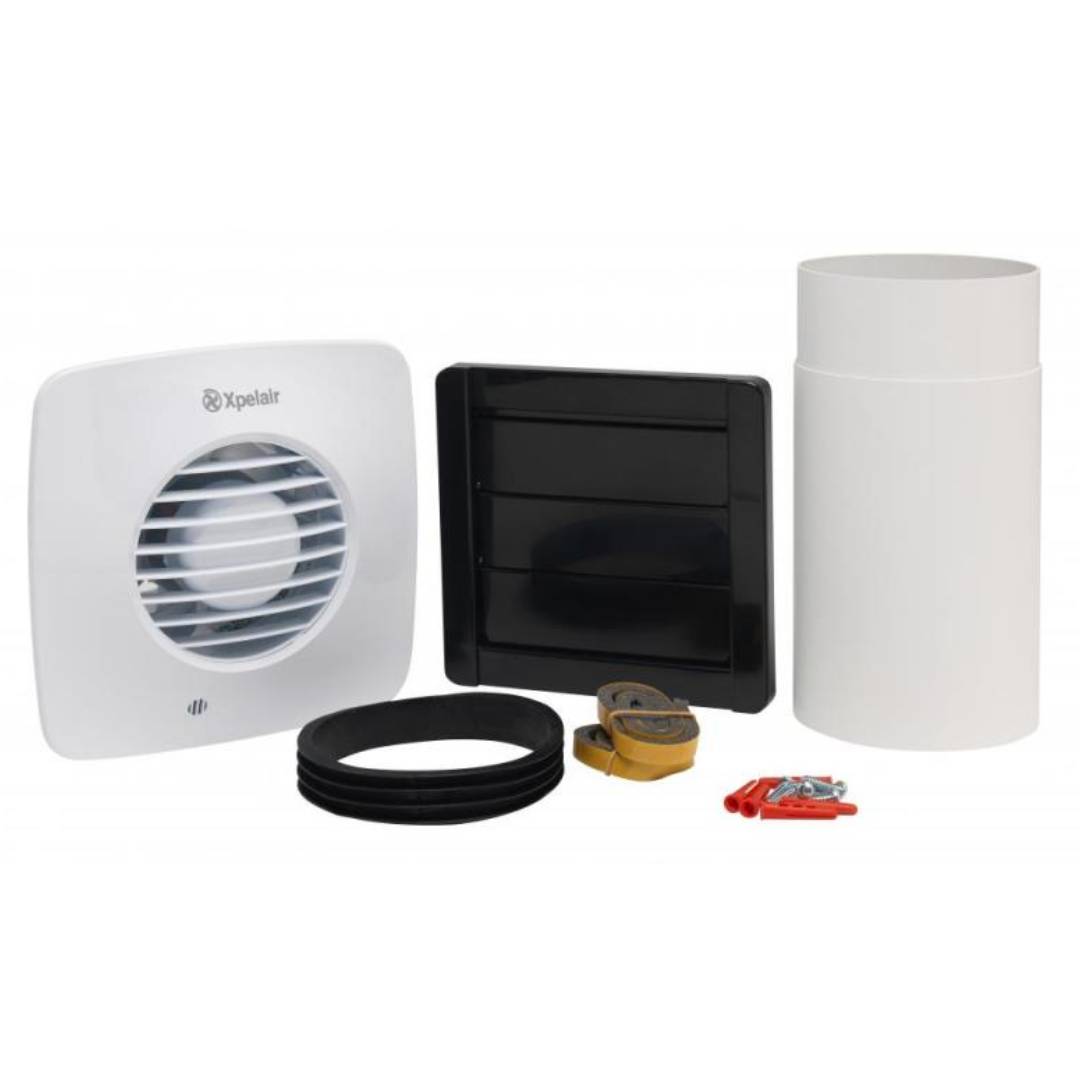

All DX100 extractor fans (except the CP clamp packed model) come complete with a universal mounting kit comprising of a wall tube, gasket x2, outer grille and skirt moulding for window mounting in single glazing up to 6mm. Also suitable for wall or ceiling mounting. DX100 models also include an outer grille and ducting.

Criteria

• Specification:
  • Style: Contemporary
  • Material: ABS
  • Installation Method: Screw-In
  • Sound Level: 22 dB
  • Box Contents: Extractor Fan/300mm telescopic wall tube/External Grille/Screws and Raw Plugs/Instruction Manual
• Features:
  • Ghost Air Movement Technology designed to deliver near-silent running
  • Twin speed extractor fan delivering selected extraction rate of 54 or 76 meters per hour

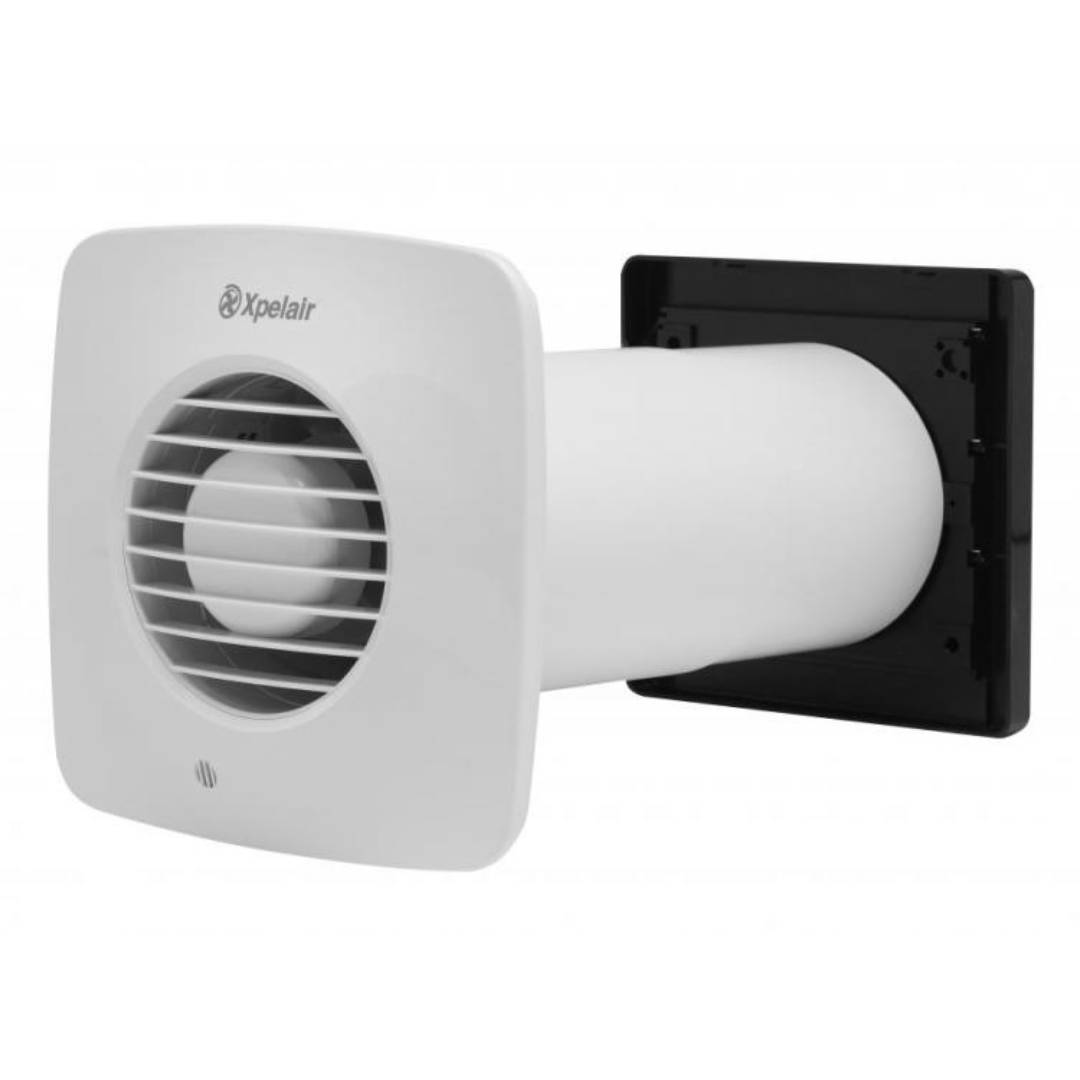

  • Wall kit with 300mm of telescopic wall tube and external grille
  • Designed for use in bathrooms and shower rooms, complies with building regulations Part F and L
• Guarantee: 3 Years
• Manufacturer Code: 93010AW

Features

• Ghost Air Movement Technology designed to deliver near-silent running
• Twin speed extractor fan delivering selected extraction rate of 54 or 76 meters per hour
• Wall kit with 300mm of telescopic wall tube and external grille
• Designed for use in bathrooms and shower rooms, complies with building regulations Part F and L

Short Description

Xpelair DX100PIRR PIR Control Round Extractor Fan with Wall Kit (93010AW)

Specification

• Style: Contemporary
• Material: ABS
• Installation Method: Screw-In
• Sound Level: 22 dB
• Box Contents: Extractor Fan/300mm telescopic wall tube/External Grille/Screws and Raw Plugs/Instruction Manual



Specification

Applicable Area	Bathroom, Laundry Room, Toilet
Backdraft Shutter	No
Collection Name	DX100
Duct Size Diameter	98 mm
Extractor Type	Axial
Fan Size Diameter	4 INCH
Fan Speeds	2
Finish Or Colour	White
Installation Kit	Yes
IP Rating	IPX4
Lip Depth	35.7 mm
Mounting	Ceiling, Wall, Window
Silent Running	Yes
Weight	0.01 KG
Width	178.1 mm
