Product Overview

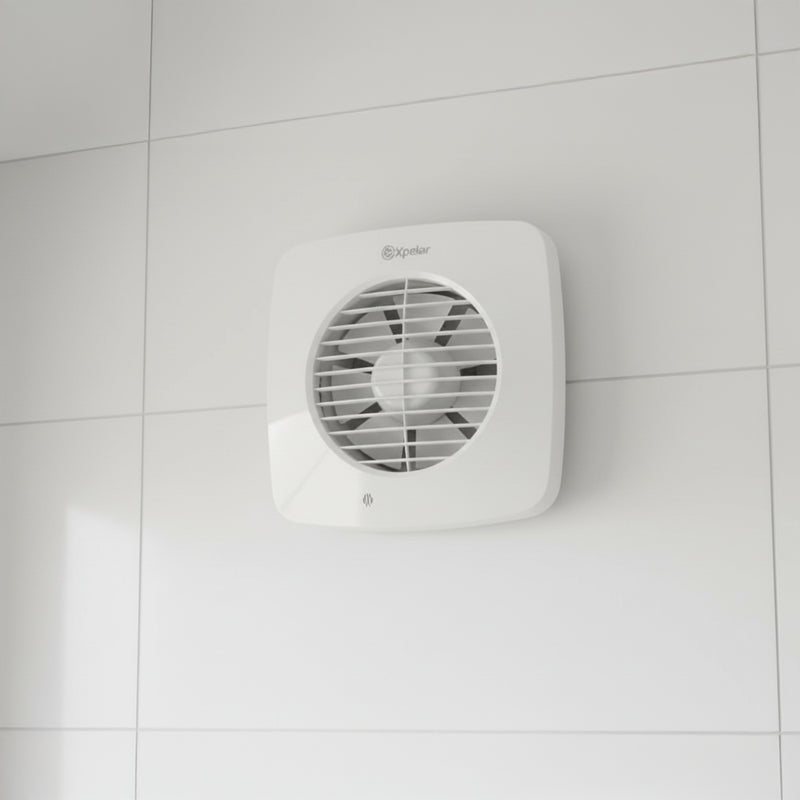

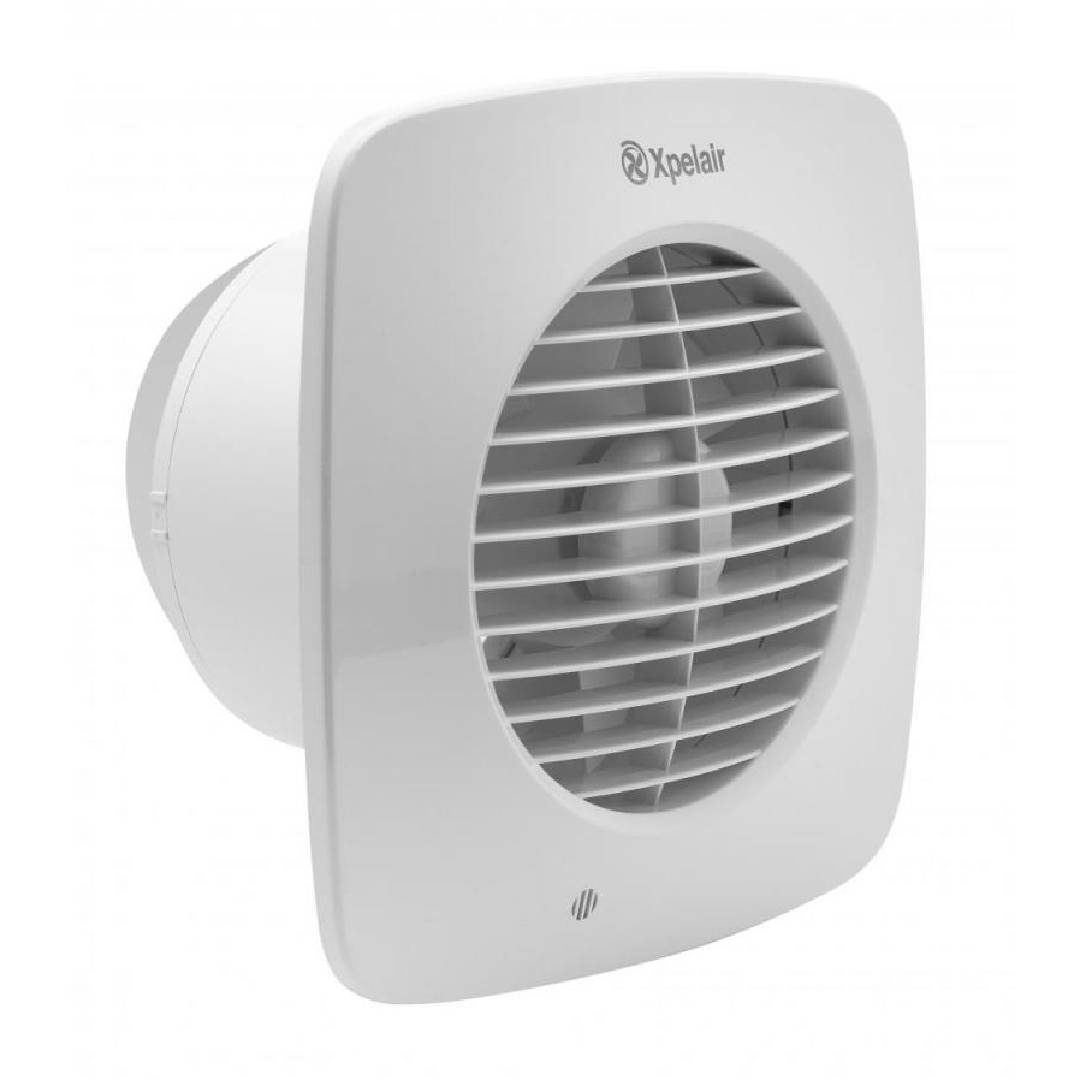

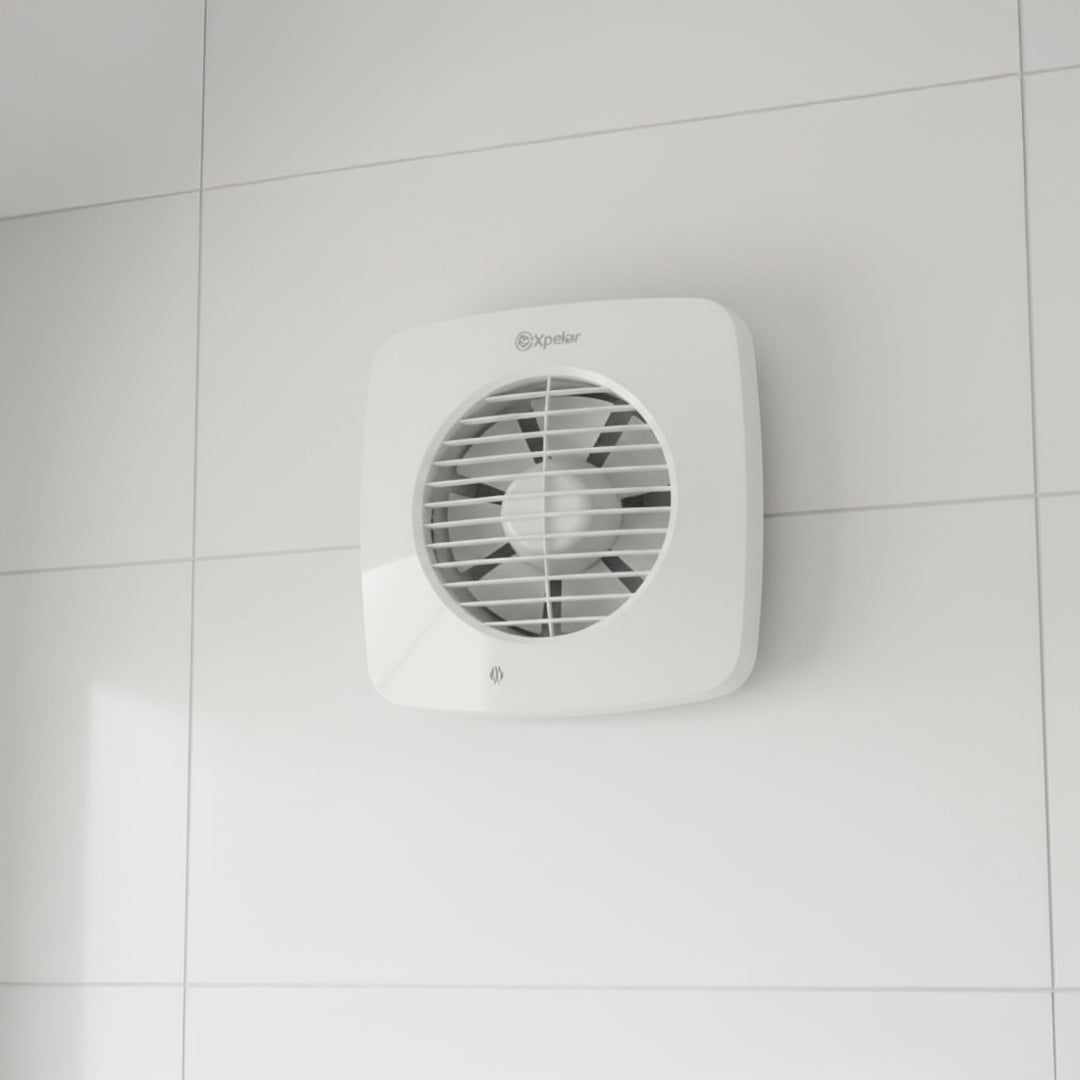

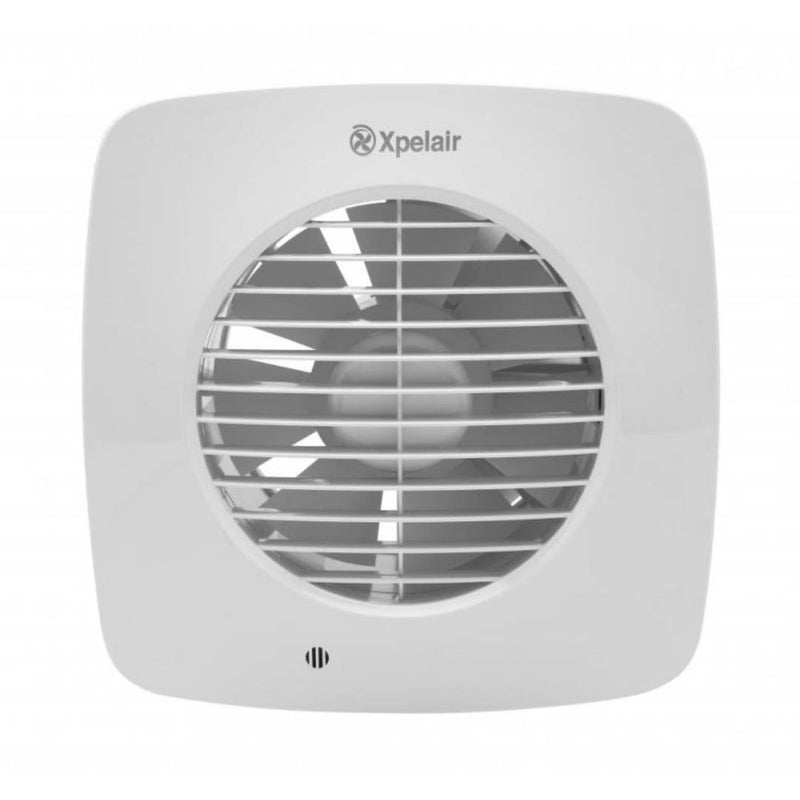

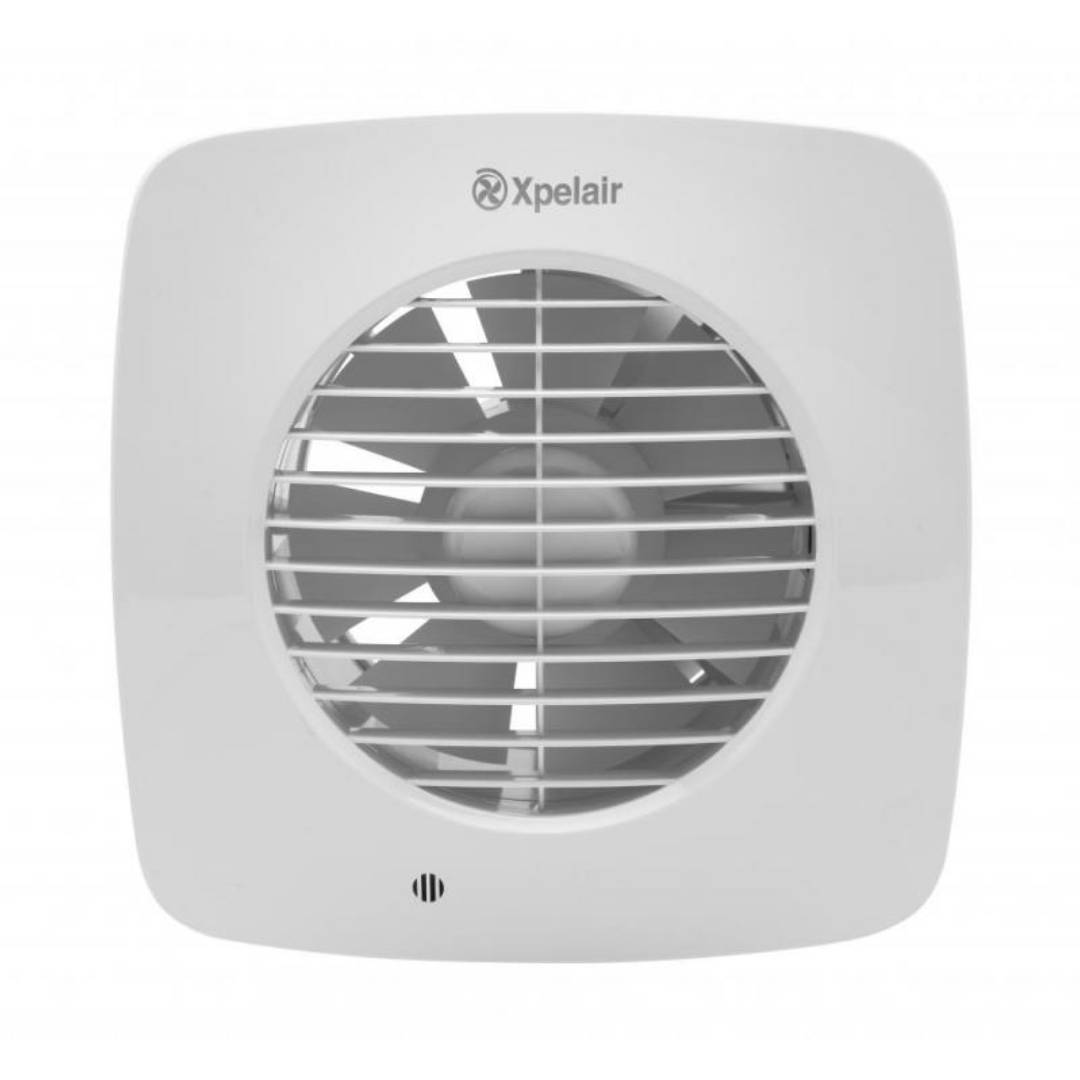

The Simply Silent DX150 two-speed, intermittent extractor fan range is designed to control humidity, odours and mould growth effectively in kitchens, utility rooms, larger bathrooms and individual offices. These fans feature a conventional grille-style fascia, are finished in cool white and available in either round or square.

Criteria

• Specification:
  • Electrical power rating (W): 12.7 / 28.1
  • Extract performance (FID, M³/h) Max/Min: 227 / 259
  • Extract performance (FID, l/s) Max/Min: 63 / 72
  • Sound pressure level db(A)@3m39.9 / 41.6 Specific Fan Power (SFP) (W/l/s)0.20 / 0.39 Operation Speeds 2 UK Guarantee (Years)2 IPX Rating 4 PullcordYes
• Features:
  • Ghost Air Movement Technology enables quiet running
  • Stylish traditional grille design available in square and round
  • 2 speeds 63l/s and 72l/s - selectable at install
  • Suitable for wall, ceiling, panel and window fitting
  • Knock-out section for side entry wiring
  • Complies with building regulations Part F and L
• Guarantee: 2 Years
• Manufacturer Code: 93074AW

Features

• Ghost Air Movement Technology enables quiet running
• Stylish traditional grille design available in square and round
• 2 speeds 63l/s and 72l/s - selectable at install
• Suitable for wall, ceiling, panel and window fitting
• Knock-out section for side entry wiring
• Complies with building regulations Part F and L

Specification

• Electrical power rating (W): 12.7 / 28.1
• Extract performance (FID, M³/h) Max/Min: 227 / 259
• Extract performance (FID, l/s) Max/Min: 63 / 72
• Sound pressure level db(A)@3m39.9 / 41.6 Specific Fan Power (SFP) (W/l/s)0.20 / 0.39 Operation Speeds 2 UK Guarantee (Years)2 IPX Rating 4 PullcordYes

Specification

Accreditations	Quiet Mark
Applicable Area	Bathroom, Kitchen, Laundry Room, Office, Toilet
Backdraft Shutter	Yes
Extractor Type	Axial
Fan Size Diameter	150 mm
Fan Size Diameter Inches	6 INCH
Finish Or Colour	White
IP Rating	IPX4
Minimum Voltage	220 v
Mounting	Ceiling
Number Of Speeds	2
Pull Cord	Yes
Silent Running	Yes
Voltage	240 v
Weight	1.3 KG
Width	150 mm
