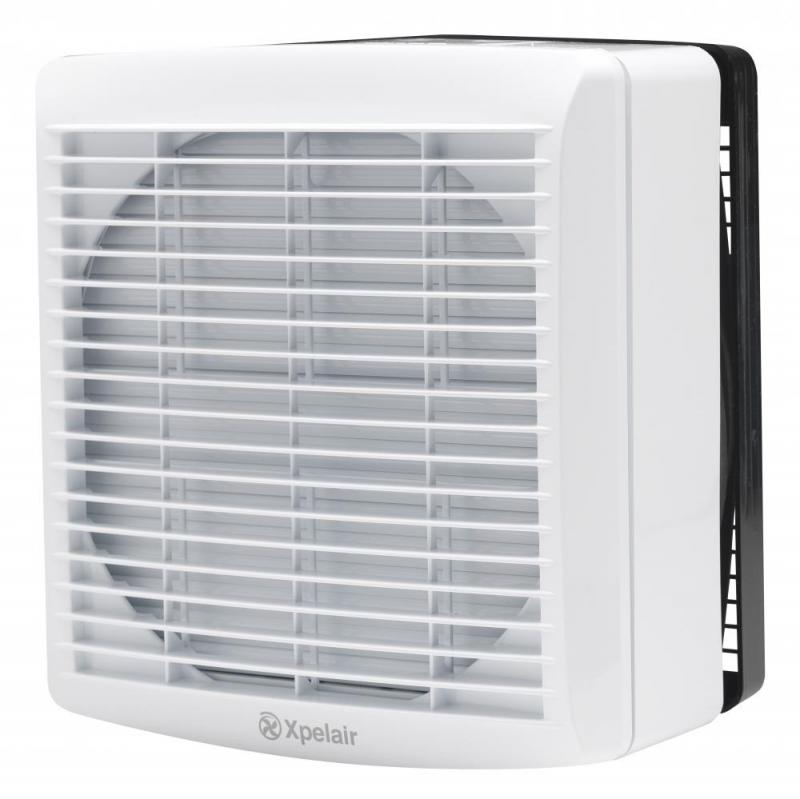

Xpelair GX12 Commercial Window Fan 12"/300mm - 90012AW

Xpelair GX12 Commercial Window Fan 12"/300mm - 90012AW

Quick Find Code: 90012AW

4 Year Warranty
Free Delivery on orders over £30 (excluding Highlands and Islands)

Specifications

Applicable AreaCommercial, Kitchen, Laundry Room, Office, Toilet, Warehouse
Backdraft ShutterYes
Collection NameGX12
Duct Size Diameter324 mm
Extractor TypeAxial
Fan Size Diameter300 mm

Xpelair GX12 Commercial Window Fan 12"/300mm - 90012AW

Quick Find Code: 90012AW

4 Year Warranty
Free Delivery on orders over £30 (excluding Highlands and Islands)

Specifications

Applicable AreaCommercial, Kitchen, Laundry Room, Office, Toilet, Warehouse
Backdraft ShutterYes
Collection NameGX12
Duct Size Diameter324 mm
Extractor TypeAxial
Fan Size Diameter300 mm

£179.95 (inc. VAT)

Show ex. VAT

Buy more, save more!

QuantityPrice (inc. VAT)Saving Per Item
3+£176.36Save 2%
6+£174.56Save 3%

Product Overview

Airconcentre.co.uk offers the Xpelair 90012AW with an exclusive 4 Year manufacturer’s warranty, that is an additional 2 years warranty to the standard 2 years, giving you an amazing 4 years warranty free of charge!  Available only at Airconcentre.co.uk, we give you extra peace of mind at no extra cost!
________________________________________________________

Being at the forefront of extractor fan technology for over 40 years, Xpelair knows a thing or two about the manufacture of high quality, state of the art products. The GX12 commercial window fan is no exception.

Safe and easy to install, the GX12 is a reliable, hard working solution to the problems associated with excess moisture, stale air, or fumes in commercial environments. Harmonious with its surroundings, this unit is designed to be unobtrusive as well as stylish, with a white gloss housing that accentuates the inherent craftsmanship.

With integrated finger guard and a tamper proof plug and socket assembly, the GX12 places safety first, and its sickle blade rotors are pre-balanced to ensure a rattle-free, quiet operation.

Inexpensive to run, the Xpelair GX12 can be reversed to provide a flow of cool air into your premises, and to prevent the problem of backdraughts, the shutter cassette automatically closes when the unit is not in use. Kits are available, should you prefer to wall mount this model.

Criteria

  • Specification:
    • 2 Speeds
    • 1214-1614 (FID, m3/h) Extract Performance
    • 337-448 (FID, l/s) Extract Performance
    • 819-1002 (FID, m3/h) Intake Performance
    • 228-278 (FID, l/s) Intake Performance
    • 50-55 (dB(A)@3m) Sound Pressure Level
    • 85 (W) Electrical Power Rating
    • 324 (mm) Hole Diameter
    • 330 (mm) Hole Diameter with wall liner
    • 7.9 kg (Weight)
    • 4 year Guarantee
  • Features:
    • High performance intake/extract axial ventilation unit.
    • Choice of optional controllers.
    • Suitable for single and sealed double glazing windows and panels up to 25mm.

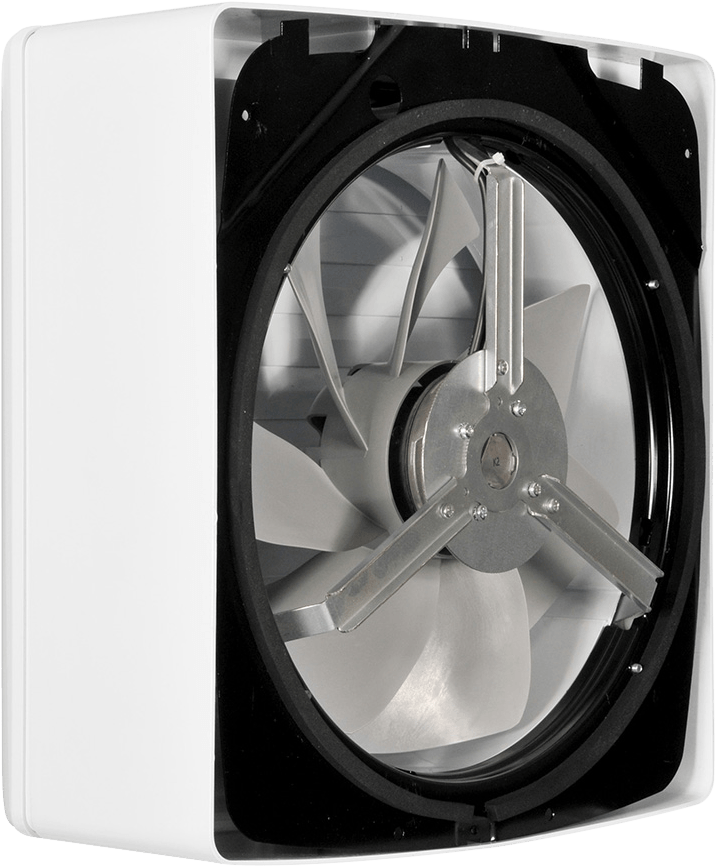

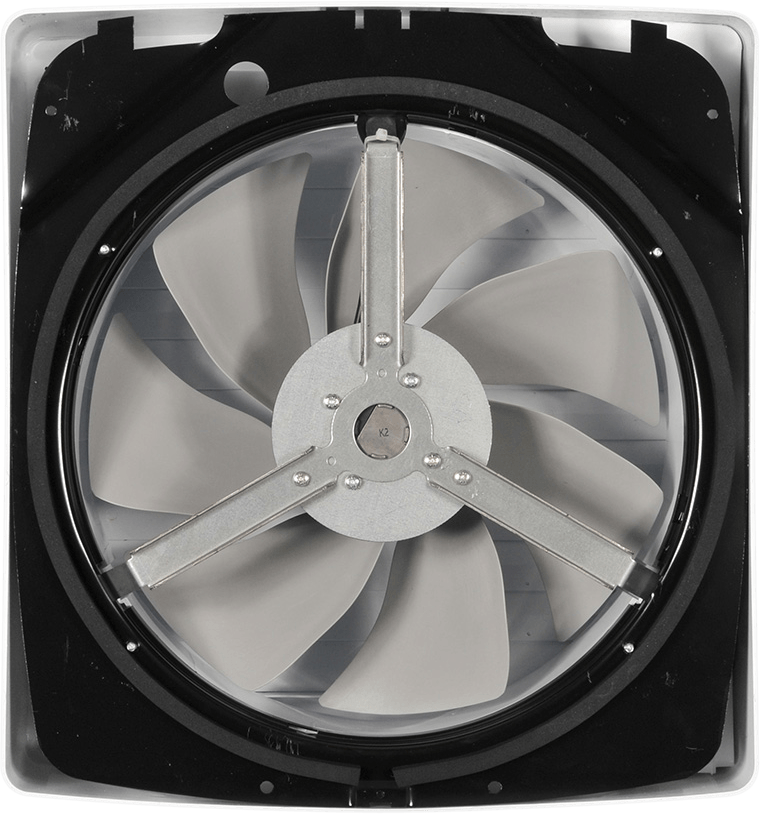

    • Balanced external rotor motor and impeller for quiet efficiency.
    • Sealed for life maintenance free bearings, suitable for running at any angle.
    • Built-in silent action electro-thermal shutter cassette.
    • Passive tricklevent facility for background ventilation with fan Off.
    • Easy clean high gloss ABS housing with integral finger safety guard.
    • Shadow grey external grille for unobtrusive external appearane.
    • Tamperproof internal connection safety plug and socket.
    • Unique metal ladderstrip / screw connection to external grille for security and weather tight seal.
  • Manufacturer Code: 90012AW

Features

  • High performance intake/extract axial ventilation unit.
  • Choice of optional controllers.
  • Suitable for single and sealed double glazing windows and panels up to 25mm.
  • Balanced external rotor motor and impeller for quiet efficiency.
  • Sealed for life maintenance free bearings, suitable for running at any angle.
  • Built-in silent action electro-thermal shutter cassette.
  • Passive tricklevent facility for background ventilation with fan Off.
  • Easy clean high gloss ABS housing with integral finger safety guard.
  • Shadow grey external grille for unobtrusive external appearane.
  • Tamperproof internal connection safety plug and socket.
  • Unique metal ladderstrip / screw connection to external grille for security and weather tight seal.

Specification

  • 2 Speeds
  • 1214-1614 (FID, m3/h) Extract Performance
  • 337-448 (FID, l/s) Extract Performance
  • 819-1002 (FID, m3/h) Intake Performance
  • 228-278 (FID, l/s) Intake Performance
  • 50-55 (dB(A)@3m) Sound Pressure Level
  • 85 (W) Electrical Power Rating
  • 324 (mm) Hole Diameter
  • 330 (mm) Hole Diameter with wall liner
  • 7.9 kg (Weight)
  • 4 year Guarantee

Specification

Applicable AreaCommercial, Kitchen, Laundry Room, Office, Toilet, Warehouse
Backdraft ShutterYes
Collection NameGX12
Duct Size Diameter324 mm
Extractor TypeAxial
Fan Size Diameter300 mm
Fan Size Diameter Inches12 INCH
Finish Or ColourWhite
Lip Depth161 mm
Minimum Voltage220 v
MountingPanel, Wall, Window
Number Of Speeds1
Voltage240 v
Height408 mm
Weight7.9 KG
Width380 mm
