Product Overview

EnergyBulbs.co.uk is delighted to offer this unit with a free four year guarantee - giving you an additional year's peace of mind on top of Xpelair's standard three year guarantee.

This fan has been tried and tested and has remained the a byword for commercial window fans for over forty years. This fan continues the tradition of earlier models. It continues to have the same reputation for being reliable, and introduces a host of refinements to make the range safer, faster to install and easier to clean.

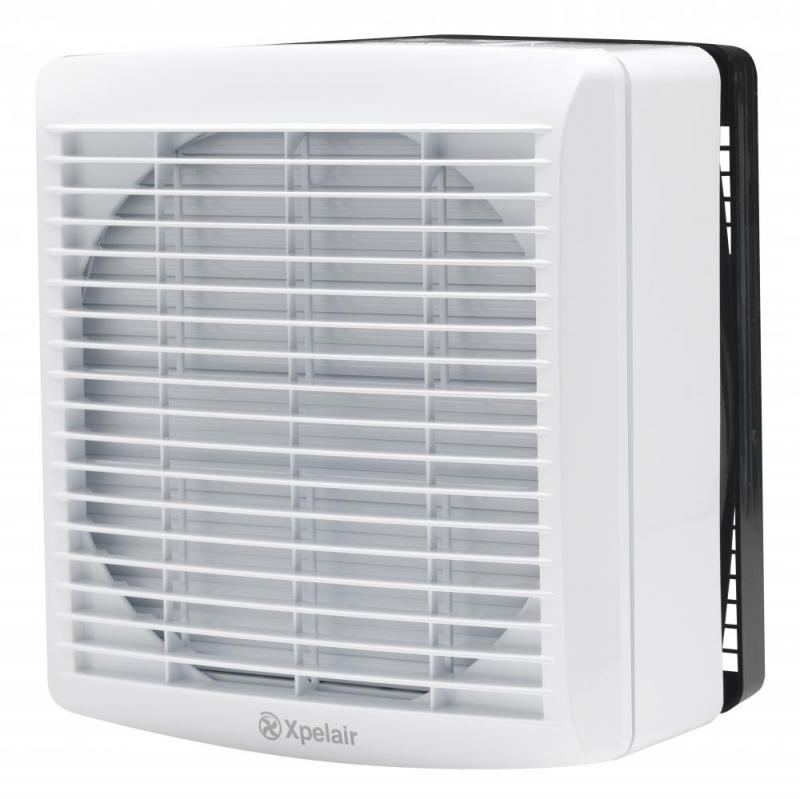

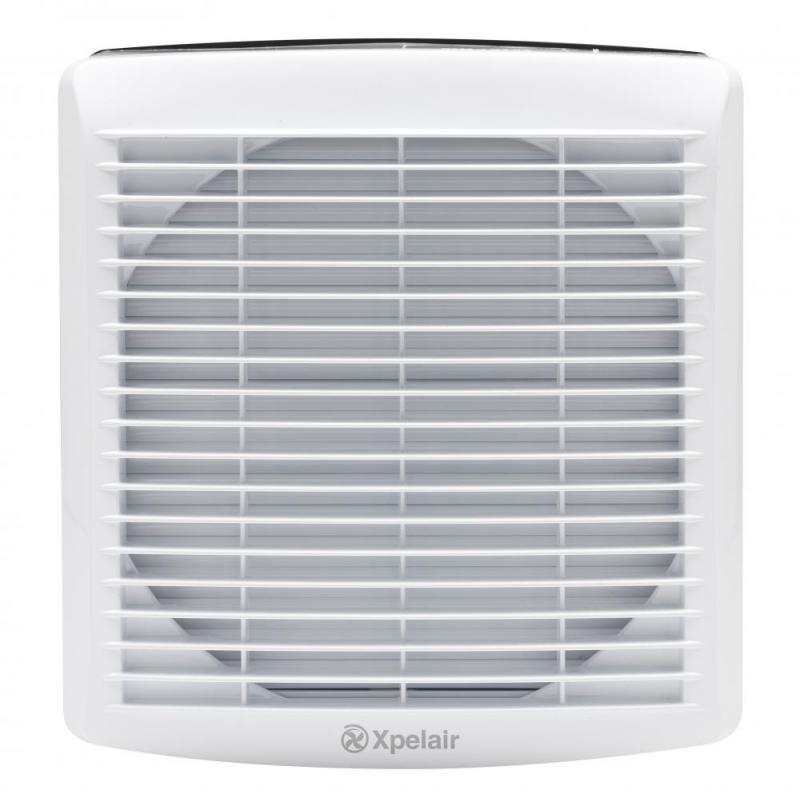

It has a high white gloss housing to blend in cleanly with modern decor. For safety it has a finger guard which is integrated into the housing and the window grille design. This model also has a tamper proof positve plug and socket assembly provides a means of isolation for service access without the safety risk of accidental disconnection.

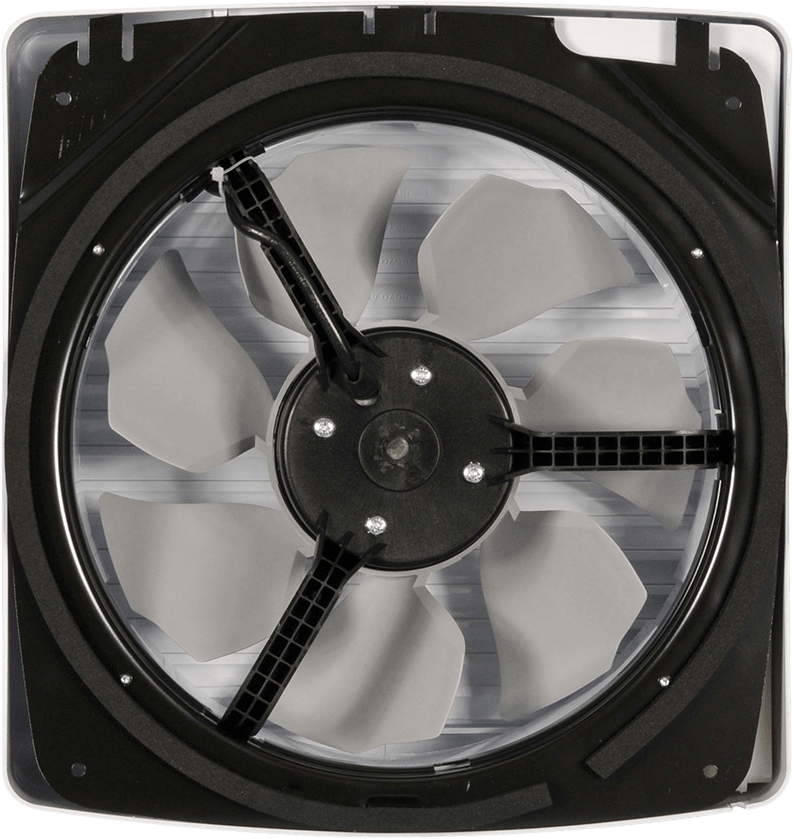

This model is reversible and now features totally enclosed external rotor motors providing constant volume outputs, even in gusty external conditions. It has pre-balanced sickle bladed impellers eliminate "fan judder" and ensure quiet trouble free operation.

It is also sealed for life maintenance free bearings ensure suitability for running at any angle.

Features

• High performance intake/extract axial ventilation unit.
• Choice of optional controllers.
• Suitable for single and sealed double glazing windows and panels up to 25mm.
• Balanced external rotor motor and impeller for quiet efficiency.
• Sealed for life maintenance free bearings, suitable for running at any angle.
• Built-in silent action electro-thermal shutter cassette.
• Passive tricklevent facility for background ventilation with fan Off.
• Easy clean high gloss ABS housing with integral finger safety guard.
• Shadow grey external grille for unobtrusive external appearane.
• Tamperproof internal connection safety plug and socket.
• Unique metal ladderstrip / screw connection to external grille for security and weather tight seal.

Specification


• 2 Speeds
• 618-728 (FID, m3/h) Extract Performance
• 172-202 (FID, l/s) Extract Performance
• 412-456 (FID, m3/h) Intake Performance
• 114-127 (FID, l/s) Intake Performance
• 48-50 (dB(A)@3m) Sound Pressure Level
• 41 (W) Electrical Power Rating
• 257 (mm) Hole Diameter
• 266 (mm) Hole Diameter with wall liner
• 4 kg (Weight)
• 2 year Guarantee

• Warranty: 2 years
• Dimensions (W x D x H): 294mm x 124mm x 312mm
• Weight: 4kg

Downloads

Download Xpelair GX9 Product Brochure

Specification
