Product Overview

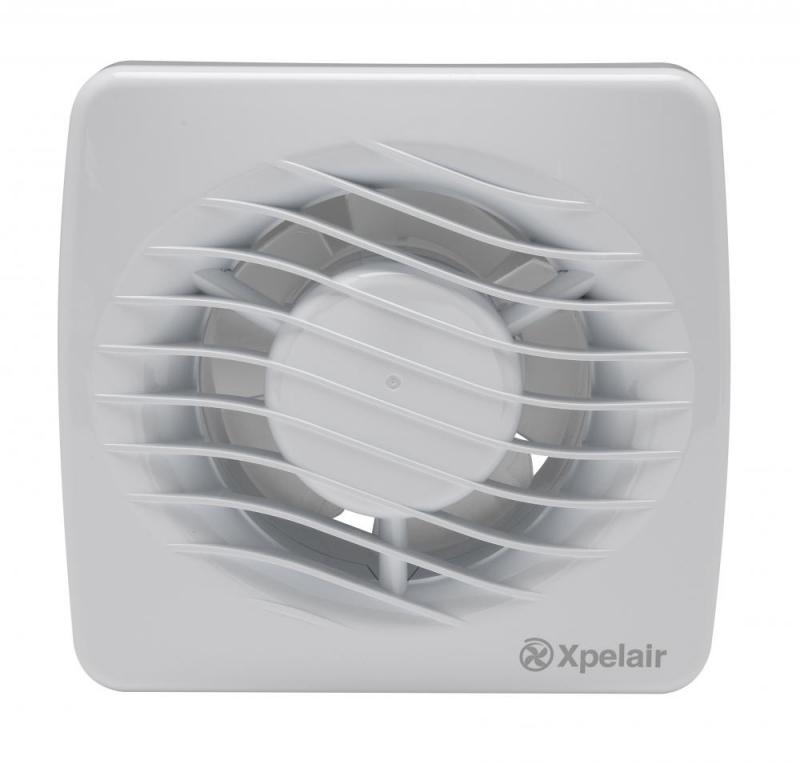

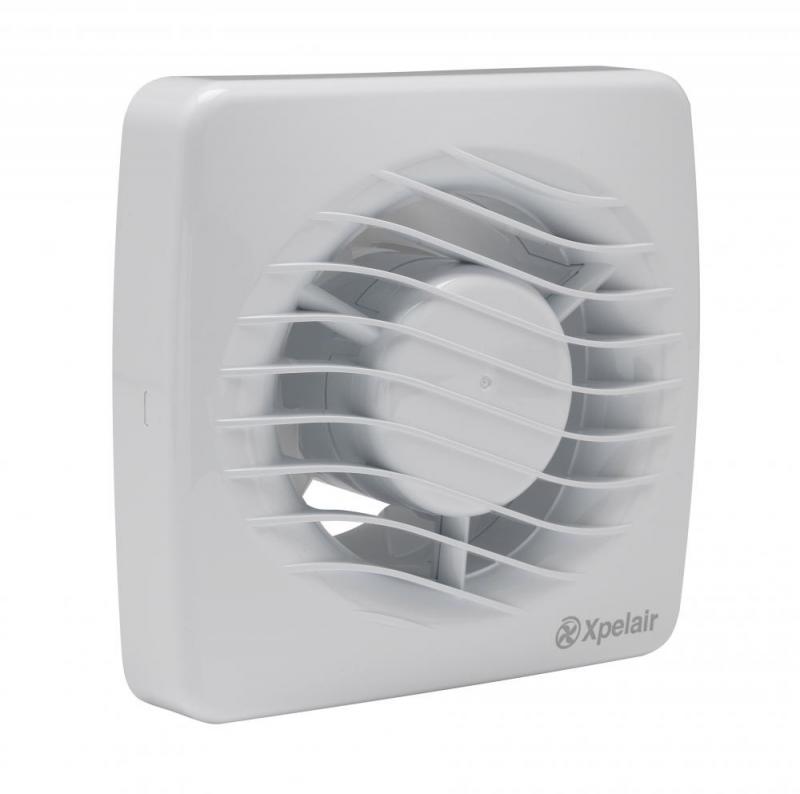

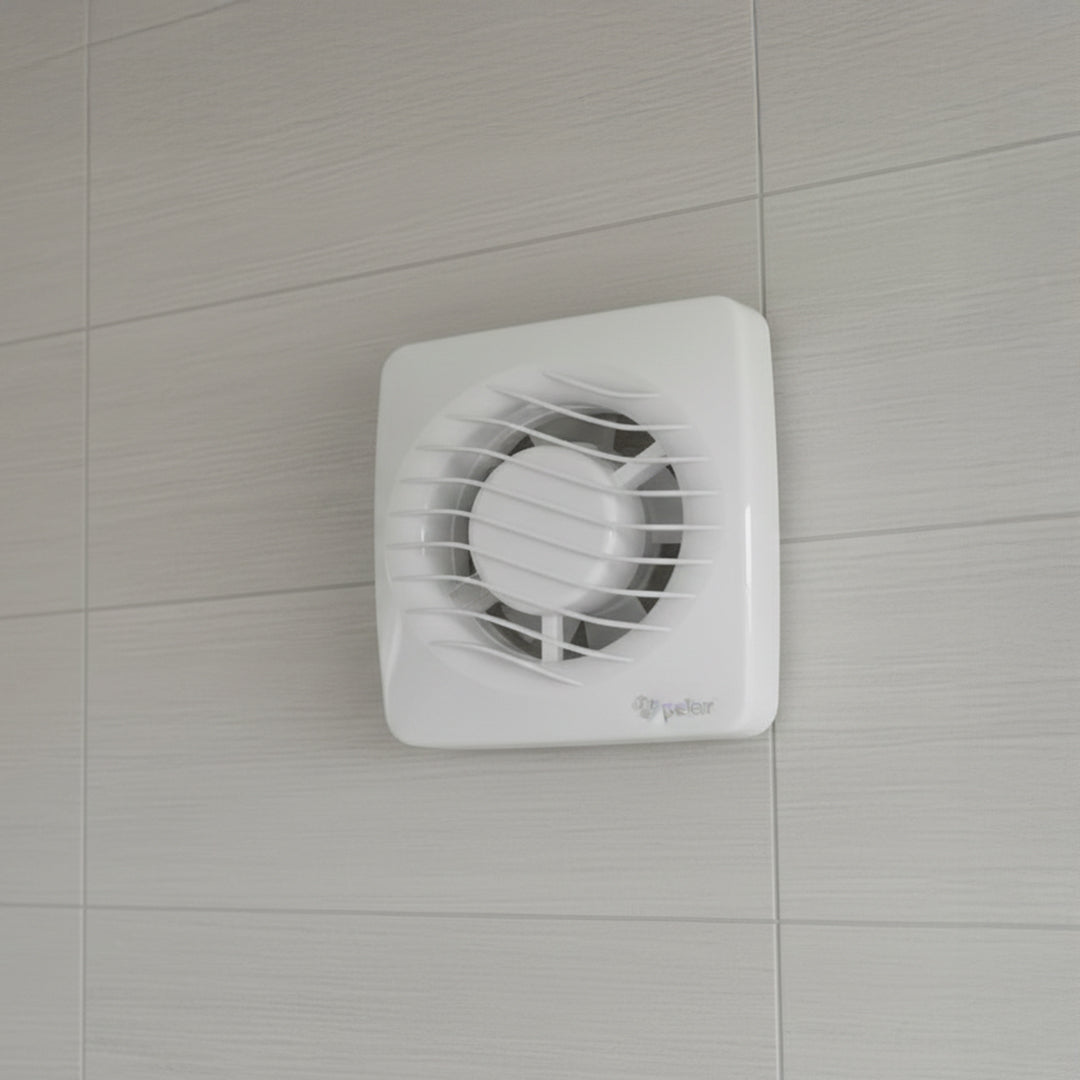

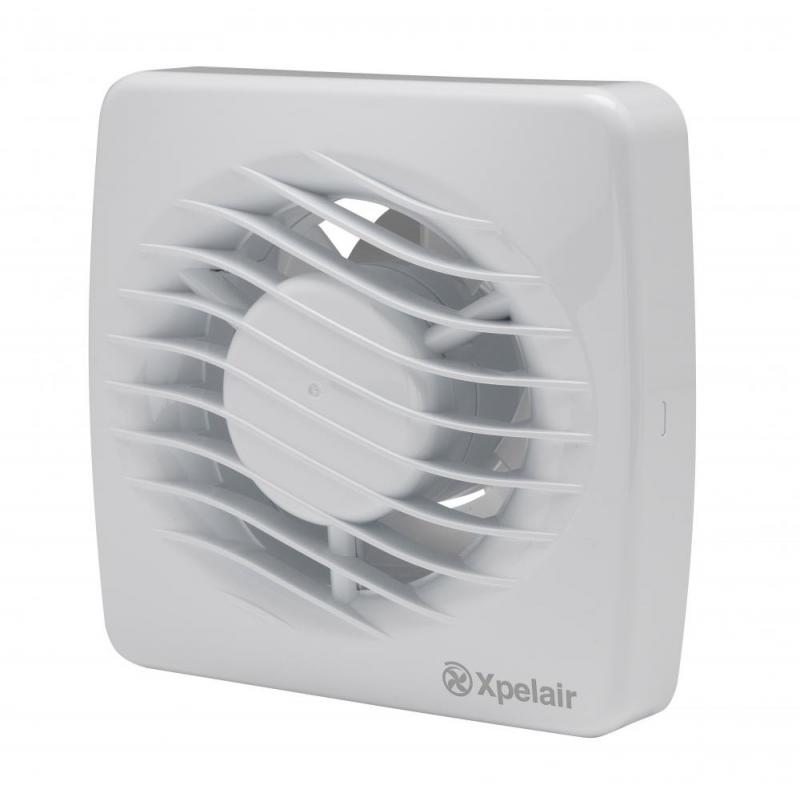

LV100HTAP 100mm 4 inch safety extra low voltage extract fan with SELV transformer, integral humidistat, pullcord and over-run timer for use in wet areas. Auto on/off operation via the humidity sensor adjustable for 50-90% relative humidity. Pull cord over-rides automatic function. Timer adjustable from 2 to 20 minutes. Is supplied with a universal fixing fit containing wall tube, 2 x gasket, outer grille and skirt moulding for window and wall installations.

Criteria

• Specification:
  • Electrical power rating: 13W
  • Extract performance (FID, M³/h) Max/Min: 85
  • Extract performance (FID, l/s) Max/Min: 24
  • Sound pressure level db(A)@3m: 37
  • Specific Fan Power (SFP) (W/I/s): 0.54
  • Operation speeds: 1
  • IPX Rating: 5
  • Weight: 2.2kg
• Features:
  • Pullcord: Yes
  • Timer: Yes
  • Humidistat: Yes
  • Universal mounting kit: Yes
• Delivery_Info:

   Order by 3am Mon-Fri for Next Working Day delivery.

Features

• Pullcord: Yes
• Timer: Yes
• Humidistat: Yes
• Universal mounting kit: Yes

Short Description

Xpelair LV100HTAP Low Voltage 100mm Axial Extract Fan (92570AW)

Specification

• Electrical power rating: 13W
• Extract performance (FID, M³/h) Max/Min: 85
• Extract performance (FID, l/s) Max/Min: 24
• Sound pressure level db(A)@3m: 37
• Specific Fan Power (SFP) (W/I/s): 0.54
• Operation speeds: 1
• IPX Rating: 5
• Weight: 2.2kg

Specification

Applicable Area	Bathroom, Laundry Room, Toilet
Backdraft Shutter	Yes
Duct Size Diameter	99 mm
Extractor Type	Axial
Fan Size Diameter	100 mm
Finish Or Colour	White
Humidistat	Yes
Installation Kit	Yes
IP Rating	IPX5
Lip Depth	35 mm
Minimum Voltage	230 v
Mounting	Ceiling, Panel, Wall, Window
Number Of Speeds	1
Timer	Yes
Voltage	240 v
Height	155 mm
Weight	2.2 KG
Width	165 mm
