Product Overview

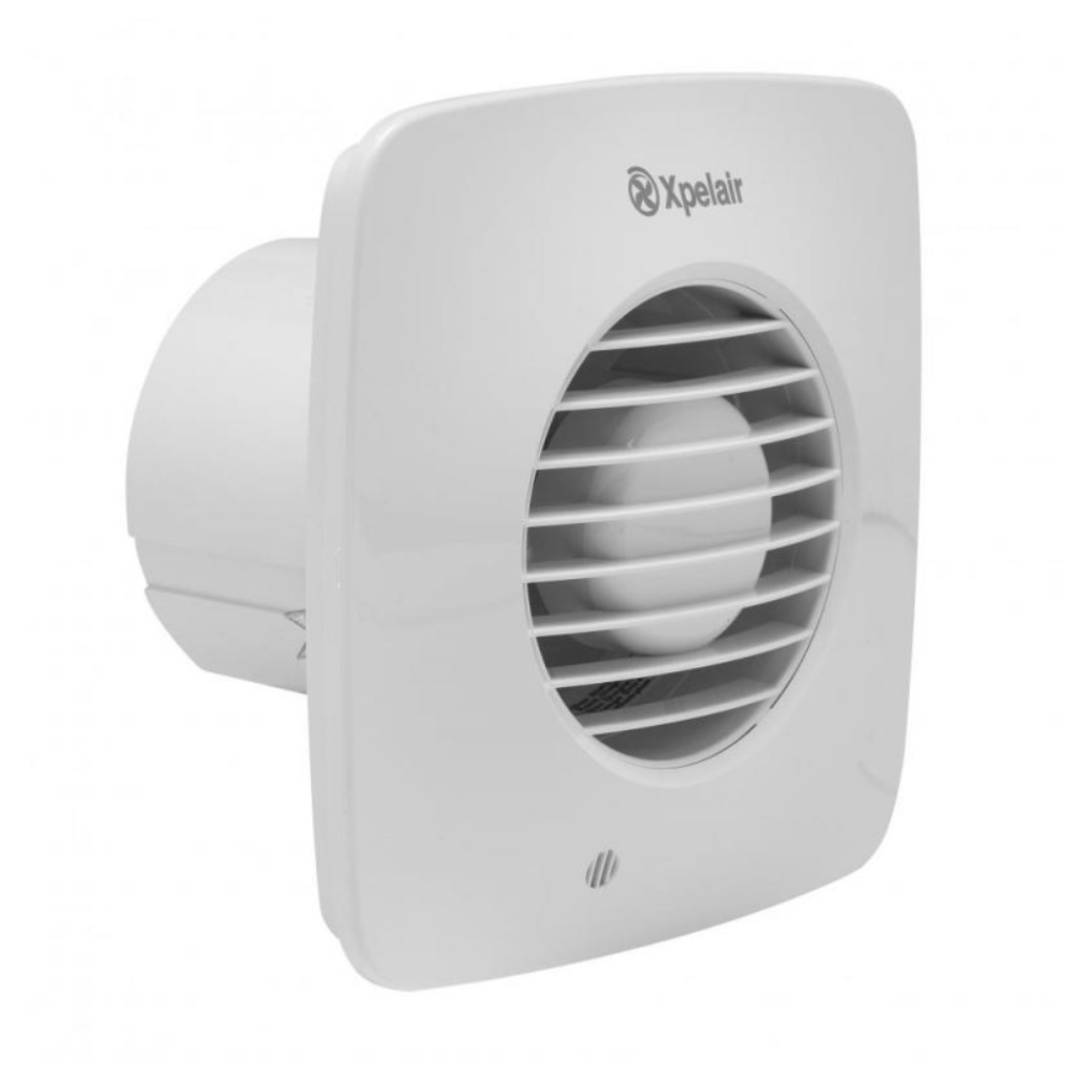

Simply Silent LV100 square grille fascia 4" 100mm extract fan, featuring Ghost Air Movement Technology for quiet running, with integral pull cord for on/off control. Supplied with wall fitting kit comprising of outer grille, telescopic wall tube, gasket and foam strips. Supplied with 12V transformer.

Criteria

• Specification:
  • Electrical power rating (W): 7.4 / 8.4
  • Extract performance (FID, M³/h) Max/Min: 54 / 76
  • Extract performance (FID, l/s) Max/Min: 15 / 21
  • Sound pressure level db(A)@3m: 22 / 34
  • Specific Fan Power (SFP) (W/l/s): 0.49 / 0.40
  • Operation Speeds: 2
  • UK Guarantee: 2 Years
  • IPX Rating: 4
  • Pullcord: Yes
  • Universal Mounting Kit: Yes
• Features:
  • Extremely quiet running - only 22dBA@3M at low speed
  • Stylish traditional grille design available in square and round
  • Supplied with wall fitting kit - complete one-box installation solution
  • 2 speeds 15l/s and 21l/s - selectable at install
  • Suitable for wall, ceiling, panel and window fitting
  • Complies with building regulations Part F and L
  • Includes 12V SELV transformer
• Delivery_Info:

  Order by 7pm for Next Working Day Delivery

• Manufacturer Code: 93033AW

Features

• Extremely quiet running - only 22dBA@3M at low speed
• Stylish traditional grille design available in square and round
• Supplied with wall fitting kit - complete one-box installation solution
• 2 speeds 15l/s and 21l/s - selectable at install
• Suitable for wall, ceiling, panel and window fitting
• Complies with building regulations Part F and L
• Includes 12V SELV transformer

Short Description

Xpelair Simply Silent LV100PS 4"/100MM Square SELV Bathroom Fan With Pullcord and Wall Kit

Specification

• Electrical power rating (W): 7.4 / 8.4
• Extract performance (FID, M³/h) Max/Min: 54 / 76
• Extract performance (FID, l/s) Max/Min: 15 / 21
• Sound pressure level db(A)@3m: 22 / 34
• Specific Fan Power (SFP) (W/l/s): 0.49 / 0.40
• Operation Speeds: 2
• UK Guarantee: 2 Years
• IPX Rating: 4
• Pullcord: Yes
• Universal Mounting Kit: Yes

Specification

Applicable Area	Bathroom, Laundry Room, Toilet
Backdraft Shutter	Yes
Collection Name	Simply Silent
Duct Size Diameter	98 mm
Extractor Type	Axial
Fan Size Diameter	100 mm
Finish Or Colour	White
Installation Kit	Yes
IP Rating	IPX4
Lip Depth	36 mm
Mounting	Ceiling, Panel, Wall, Window
Number Of Speeds	2
Pull Cord	Yes
Silent Running	Yes
Voltage	12 v
Width	178 mm
