Product Overview

High power, in shower: grille-style extractor fans designed for in-shower installation

Combining low noise levels with high extraction power, Simply Silent™ Shower Fans are purpose-designed for in-shower installation. This means that they carry out direct extraction right at the point of humidity for a steam-free bathroom environment. In fact, an installed Simply Silent™ Shower Fan achieves an 88% improved extraction rate over comparable in-line shower fans.

Because the Simply Silent™ Shower Fan Complete is positioned directly in the shower cubicle itself, it’s quick and easy to fit. Plus, it won’t be subjected to the loft space temperature extremes that in-line shower fans are.

Like the Simply Silent™ DX100 range, the Simply Silent™ Shower Fan Complete has a traditional grille-style fascia. Finished in cool white, this product is available with a round fascia.

Sound pressure testing carried out at ISVR, University of Southampton – February 2015.

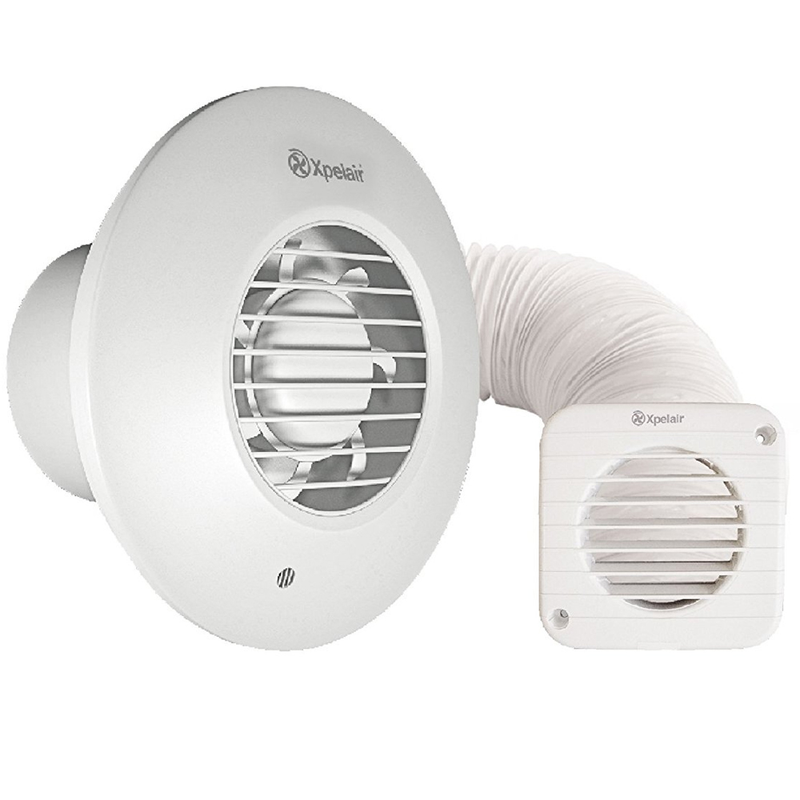

Kit Includes:

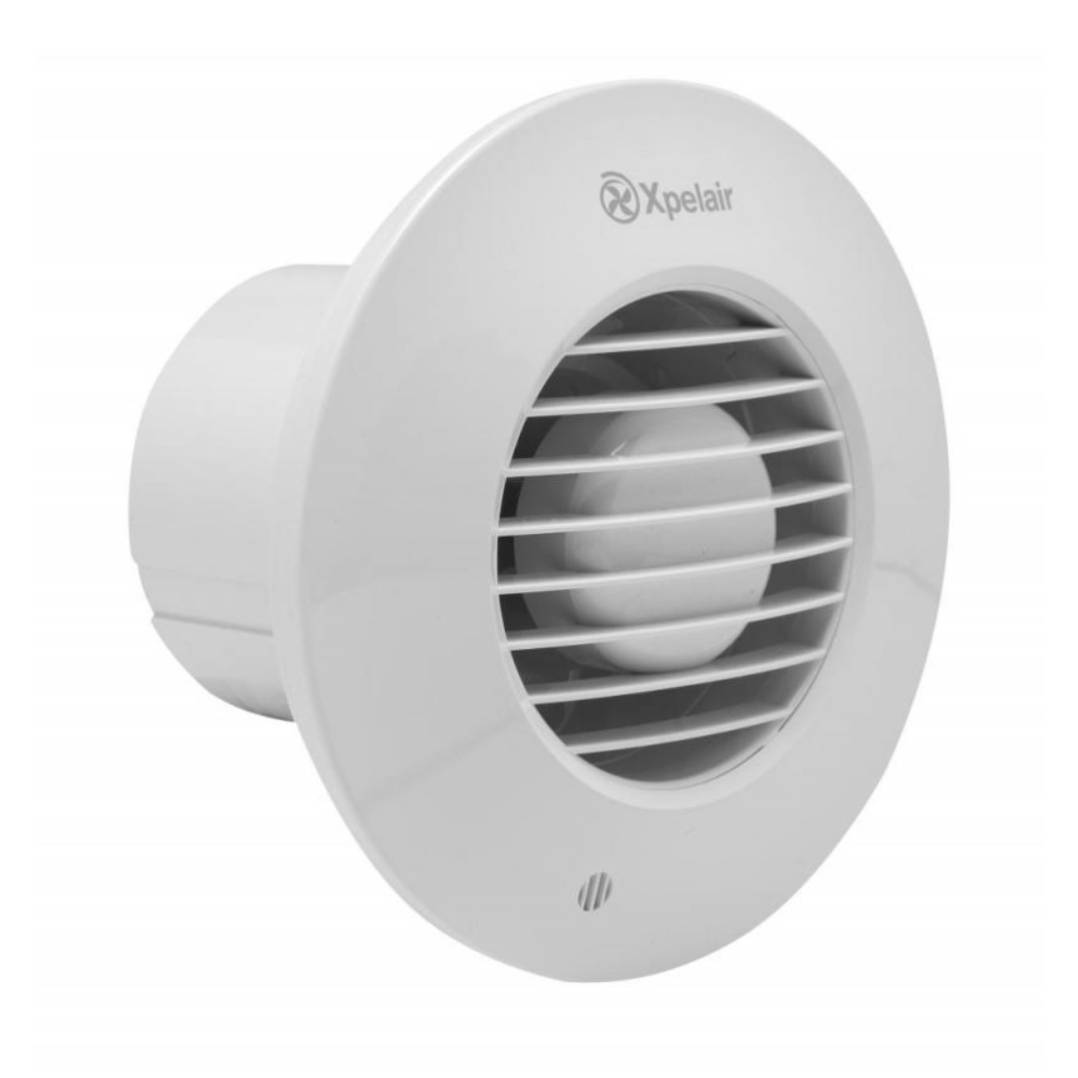

• DX100BT extractor fan
• External grille
• 3m flexible ducting

Criteria

• Specification:
  • Extract Performance: 15/21 l/s
  • Extract Performance: 54/76 m3/h
  • Electrical Power Rating: 6.7W / 7.7 W
  • Specific Fan Power (W/l/s): 0.45/0.37
  • Sound Pressure Level (dBA@3M): 22/34
  • Diameter: 178.1mm x Depth: 122.2mm
• Features:
  • IP Rating: X4
  • Motor Type: AC Motor
  • ErP Compliant: Yes
• Guarantee: 3 Years

Features

• IP Rating: X4
• Motor Type: AC Motor
• ErP Compliant: Yes

Specification

• Extract Performance: 15/21 l/s
• Extract Performance: 54/76 m3/h
• Electrical Power Rating: 6.7W / 7.7 W
• Specific Fan Power (W/l/s): 0.45/0.37
• Sound Pressure Level (dBA@3M): 22/34
• Diameter: 178.1mm x Depth: 122.2mm

Specification

Accreditations	Quiet Mark
Applicable Area	Bathroom, Shower, Toilet
Backdraft Shutter	Yes
Collection Name	Simply Silent
Duct Size Diameter	98 mm
Extractor Type	Shower Fan Kit
Fan Size Diameter	100 mm
Fan Size Diameter Inches	4 INCH
Finish Or Colour	White
IP Rating	IPX4
Lip Depth	35.7 mm
Minimum Voltage	220 v
Mounting	Ceiling, Wall
Number Of Speeds	2
Silent Running	Yes
Timer	Yes
Voltage	240 v
Weight	0.118 KG
Width	178.1 mm
