Blauberg Turbo 100mm (4") Bathroom Shower Fan Kit with Timer - KIT-TUBO-100-T

Product Overview

This all‑in‑one ventilation kit centres on the Turbo‑E mixed‑flow inline fan, optimized for 100 mm ducting and offering strong extraction of up to 187 m³/h to tackle moisture in bathrooms, showers, kitchens, or utility rooms. The fan operates quietly, producing as little as 32 dB(A) at 3 metres, which makes it well-suited for residential environments.

An adjustable run-on timer is built in, allowing the fan to continue operating after the light or switch is turned off — helping to clear residual steam and prevent damp-related issues. The motor is efficient and low-power (around 7.5 W / 25 W, depending on the source) and comes from German engineering, backed by a 5-year warranty.

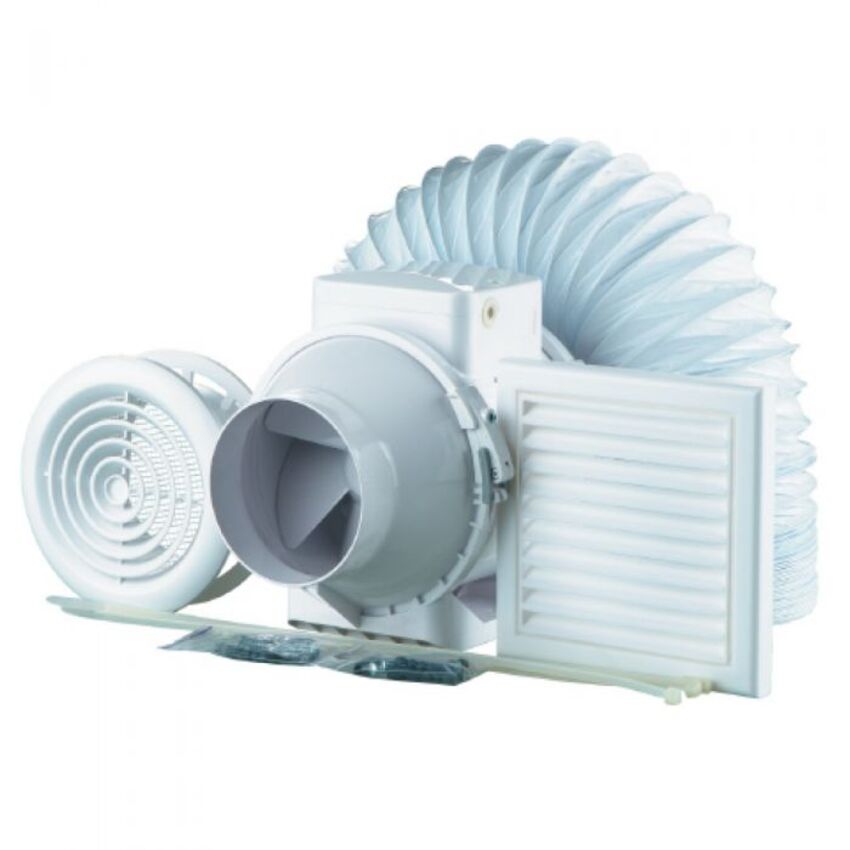

Beyond the fan itself, the kit includes everything needed for a clean, effective installation: heavy-duty aluminium flexible ducting, a white ceiling diffuser vent with a “mini multi-cone” design to reduce drafts, and an external fixed‑blade wall grille that features insect mesh and a removable core for easy cleaning.

Downloads

Download kit-tubo100t-spec-sheet

Specification

Battery Backup	Yes
Current	AC
Domestic or Commercial	Domestic
Duct Size Diameter	100 mm
Extractor Type	Axial
Frequency	60 Hz
IP Rating	IPX4
Material	Aluminium
Maximum Airflow	102 m³/h
Minimum Wattage	21 W
Mounting	Ceiling
Noise Level Maximum	36 dB
Noise Level Minimum	27 dB
Timer	Yes
Voltage	240 V
Weight	1 kg
