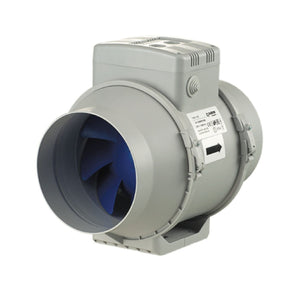

Blauberg Turbo 315mm (12") In-line Mixed High Airflow Extractor Fan - TURBO-315

Product Overview

The Blauberg Turbo 315 mm fan is designed for larger ducted ventilation systems, with a 315 mm (12") duct connection delivering robust airflow for commercial or higher-demand residential applications. It uses mixed-flow impeller technology (a hybrid of axial and centrifugal) to maintain strong airflow even under moderate back-pressure, making it suitable for longer or more complex duct runs.

Performance-wise, the unit delivers very high throughput—typical maximum airflows are up to ~1,750 m³/h for the AC version and up to ~1,970 m³/h in EC-motor variants. Noise levels are kept within acceptable bounds given the size, with sound pressure levels at 3 m in the region of 41–52 dB(A) depending on operating point.

Installation is flexible: the fan can be mounted in any orientation (wall, ceiling or inline in the duct run) and uses a durable casing designed for humid or demanding environments (maximum transported air temperature around 60 °C, ingress protection rating IPX4). The robust German-ball-bearing motor and straightforward installation make it a practical choice for large-scale ventilation setups.

Downloads

Download turbo-data-sheet

Specification

Battery Backup	Yes
Current	AC
Current Amps	1.4 A
Domestic or Commercial	Domestic, Commercial
Duct Size Diameter	315 mm
Extractor Type	Axial
Frequency	60 Hz
IP Rating	IPX4
Maximum Airflow	1750 m³/h
Minimum Airflow	1420 m³/h
Mounting	Wall, Ceiling
Noise Level Maximum	52 dB
Noise Level Minimum	41 dB
power consumption	315 W
Voltage	230 V
Wattage	315 W
Depth	310 mm
Height	408 mm
Length	445 mm
Weight	11.7 kg
Width	362 mm
