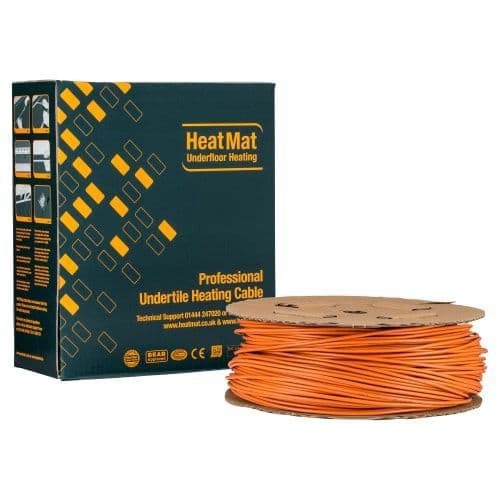

Heat Mat 316W, 23m Underfloor Heating Cables 1.6m2-3.2m2 - PKC-3.0-0316, Image of 1
Clearance
Heat Mat 316W, 23m Underfloor Heating Cables 1.6m2-3.2m2 - PKC-3.0-0316

Quick Find Code: PKC-3.0-0316

Lifetime Warranty
Free Next Day Delivery!*
  • Award winning system designed for professional installation
  • Lifetime Warranty, BEAB approved, 18th Edition compliant and made in Denmark
  • Perfect for small or awkwardly shaped areas
  • Vary the system output by altering the cable-to-cable spacing
  • Huge range of cable sizes simplifies installation- most rooms only require one heating cable

Heat Mat 316W, 23m Underfloor Heating Cables 1.6m2-3.2m2 - PKC-3.0-0316

Quick Find Code: PKC-3.0-0316

Lifetime Warranty
Free Next Day Delivery!*
  • Award winning system designed for professional installation
  • Lifetime Warranty, BEAB approved, 18th Edition compliant and made in Denmark
  • Perfect for small or awkwardly shaped areas
  • Vary the system output by altering the cable-to-cable spacing
  • Huge range of cable sizes simplifies installation- most rooms only require one heating cable

£75.06 (inc. VAT)

Show ex. VAT

Heat Mat
  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Notify Me When Available

Product Overview

Heat Mat 316W, 23m Underfloor Heating Cables 1.6m2-3.2m2 - PKC-3.0-0316
3mm Pro Range heating cable supplied with fixing tapes for heating beneath nearly any floor covering. This loose cable is particularly suitable for very small or irregularly shaped rooms where the cable-to-cable distance can be varied as required. The cable spacing dictates the output of the system per square meter and with the correct output the cables can provide primary and secondary heating in even badly insulated rooms. Supplied with a 2m coldtail and robust 100% earth shielded heating cable and coldtail to comply with the 18th Edition, and covered by Heat Mat's Lifetime Warranty.

Specification

Applicable AreaHome
Bathroom Zones0
Cable Diameter3 mm
Cold Tail Length2 m
Collection NamePro Range
Current Amps1.4 A
Directive ComplianceBEAB
Domestic or CommercialDomestic
Equivalent Wattage316 W
InsulatedYes
IP RatingIPX7
Lot20 CompliantYes
Luckins Code389519814
power consumption316 W
Voltage230 V
Earthing TypeAluminium Earth Shield
Floor Area Coverage Max3.2 m²
Floor Area Coverage Min1.6 m²
Floor CoveringTypeTiles, Porcelain, Stone, Marble
Height3 mm
Length23000 mm
Weight1.23 kg
Width270 mm

We always aim to dispatch your order for delivery on the next working day. Simply place your order before the same-day dispatch cut-off time. The countdown timer on the product page shows this cut-off time. While we work with trusted couriers, delivery times cannot be guaranteed.

Free UK Delivery on All Qualifying Orders Over £50. Orders under £50 will incur a £5.90 Delivery Fee.

This Excludes Delivery to the Scottish Highlands, Offshore Islands and Northern Ireland. These will be charged at an extra rate, which will be calculated at the checkout.

Heavier Items may also incur an extra fee.

Compare the range

Heat Mat 316W, 23m Underfloor Heating Cables 1.6m2-3.2m2 - PKC-3.0-0316
PKC-3.0-0316
£75.06
Applicable area
Home
Bathroom zones
0
Cable diameter
3 mm
Cold tail length
2 m
Collection name
Pro Range
Current amps
1.4 A
Directive compliance
BEAB
Domestic or commercial
Domestic
Equivalent wattage
316 W
Finish or colour
-
Insulated
Ip rating
IPX7
Lot20 compliant
Luckins code
389519814
Power consumption
316 W
Voltage
230 V
Earthing type
Aluminium Earth Shield
Floor area coverage max
3.2 m²
Floor area coverage min
1.6 m²
Floor coveringtype
Tiles,Porcelain,Stone,Marble
Type of underfloor heating
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Heat Mat 518W, 37m Underfloor Heating Cables 2.6m2-5.2m2 - PKC-3.0-0518
PKC-3.0-0518
£108.54
Home
0
3 mm
2 m
Pro Range
2.3 A
BEAB
Domestic
518 W
Orange
IPX7
389520269
518 W
230 V
Aluminium Earth Shield
5.2 m²
2.6 m²
Tiles,Porcelain,Stone,Marble
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Heat Mat 719W, 51m Underfloor Heating Cables 3.6m2-7.2m2 - PKC-3.0-0719
PKC-3.0-0719
£138.78
Home
0
3 mm
2 m
Pro Range
3.1 A
BEAB
Domestic
719 W
Orange
IPX7
389520311
719 W
230 V
Aluminium Earth Shield
7.2 m²
3.6 m²
Tiles,Porcelain,Stone,Marble
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Heat Mat 1507W, 108m Underfloor Heating Cables 7.6m2-15.2m2 - PKC-3.0-1507
PKC-3.0-0407
£86.94
Home
0
3 mm
2 m
Pro Range
1.8 A
BEAB
Domestic
407 W
Orange
IPX7
389520256
407 W
230 V
Aluminium Earth Shield
4 m²
2 m²
Tiles,Porcelain,Stone,Marble
Wire
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Heat Mat 130W, 9.2m Underfloor Heating Cables 0.6m2-1.2m2 - PKC-3.0-0130
PKC-3.0-0130
£48.06
Home
0
3 mm
2 m
Pro Range
0.6 A
BEAB
Domestic
130 W
Orange
IPX7
389519746
130 W
230 V
Aluminium Earth Shield
1.2 m²
0.6 m²
Tiles,Porcelain,Stone,Marble
-
Heat Mat 212W, 15m Underfloor Heating Cables 1.0m2-2.1m2 - PKC-3.0-0212
PKC-3.0-0212
£67.20
Home
0
3 mm
2 m
Pro Range
0.9 A
BEAB
Domestic
212 W
Orange
IPX7
389519791
212 W
230 V
Aluminium Earth Shield
2.1 m²
1 m²
Tiles,Porcelain,Stone,Marble
-
