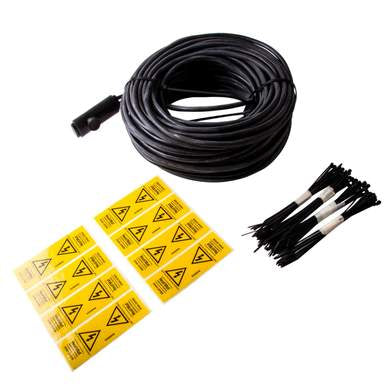

Heat Mat 38.0m PipeGuard 474W - ACC-FRO-0474

Product Overview

For pipes up to 22mm in diameter the cable can be run along the base of the pipe or spiralled around it. For larger pipes the cable must be spiralled around to provide even heat coverage. The table below shows the pipe lengths that each Heat Mat PipeGuard unit can protect.

For longer pipes multiple Heat Mat PipeGuard units can be used together. If installing onto non-metallic pipes we recommend covering the pipe with aluminium foil to aid the heat spread, and it is always advisable to insulate the pipe after installing the Heat Mat PipeGuard unit. The heating cable can be affixed with zip-ties, or strong tape.

Protection against costly call out charges

Costing from as little as £50 to purchase and designed to be simple to install, Heat Mat PipeGuard represents fantastic value for money. It prevents your boiler stopping or breaking down due to a frozen condensate pipe, and also ensures against the costly call out charges associated with dealing with these issues.

Very low running costs

With it’s dedicated thermostat monitoring the pipe temperature the system ensures it only provides heat when required, ensuring it would normally cost less than 50p per meter per year to operate; significantly less than some alternative systems.

Fit and forget

Once the unit is installed no maintenance is required and with its 10 Year Warranty you can be confident it will protect your pipes through the worst the British weather has to throw at us.

Designed for Scandinavian winters

Heat Mat PipeGuard is designed to cope with the extreme cold of Scandinavian winters and is reassuringly over-engineered for the very coldest British weather. Internal pipe heating systems are also available where insulation can not be added to the outside of the pipe. Please contact us for more details.

Key Features

• A simple to install product to protect against frozen condensate pipes
• Protects pipes in temperatures down to minus 25oC
• Integrated thermostat monitors the pipe temperature to provide fully automated protection
• Ready made maintenance free unit which can be simply zip-tied in place
• Operating costs are normally less than 50p per meter per year
• Also suitable for use to prevent frozen water pipes and taps
• Bespoke sizes and outputs can be supplied for special projects
• Internal condensate pipe heaters are also available where required
• Designed and manufactured in Denmark and supplied with a 10 Year Warranty

Technical Information

• Application: Frost protection of metallic andnon-metallic water pipes
• Heating element: Dual conductor constant Wattage heating wire
• Voltage: 230V +/-10%
• Output per meter: 14 Watts
• Output range: 19 - 567 Watts
• Amp rating: 3amp
• Sensor: Integrated thermal sensor
• Start up temperature: +3°C
• Cut out temperature: +13°C
• Insulation: Expanded low density polyethylene
• Earth protection: 100% earth shielded
• Cable flexibility: Minimum allowable cable radius is 30mm
• IP Rating: IPX7
• Dimensions: 1.4m to 45.0m
• Coldtail lead: 1.35m
• Fixings: Supplied with zip-ties
• Warning stickers: Included within pack
