Manrose 100mm In-Line Mixed Flow Extractor Fan with Timer - MF100T With 100mm Air Diffuser Kit - 1250

Product Overview

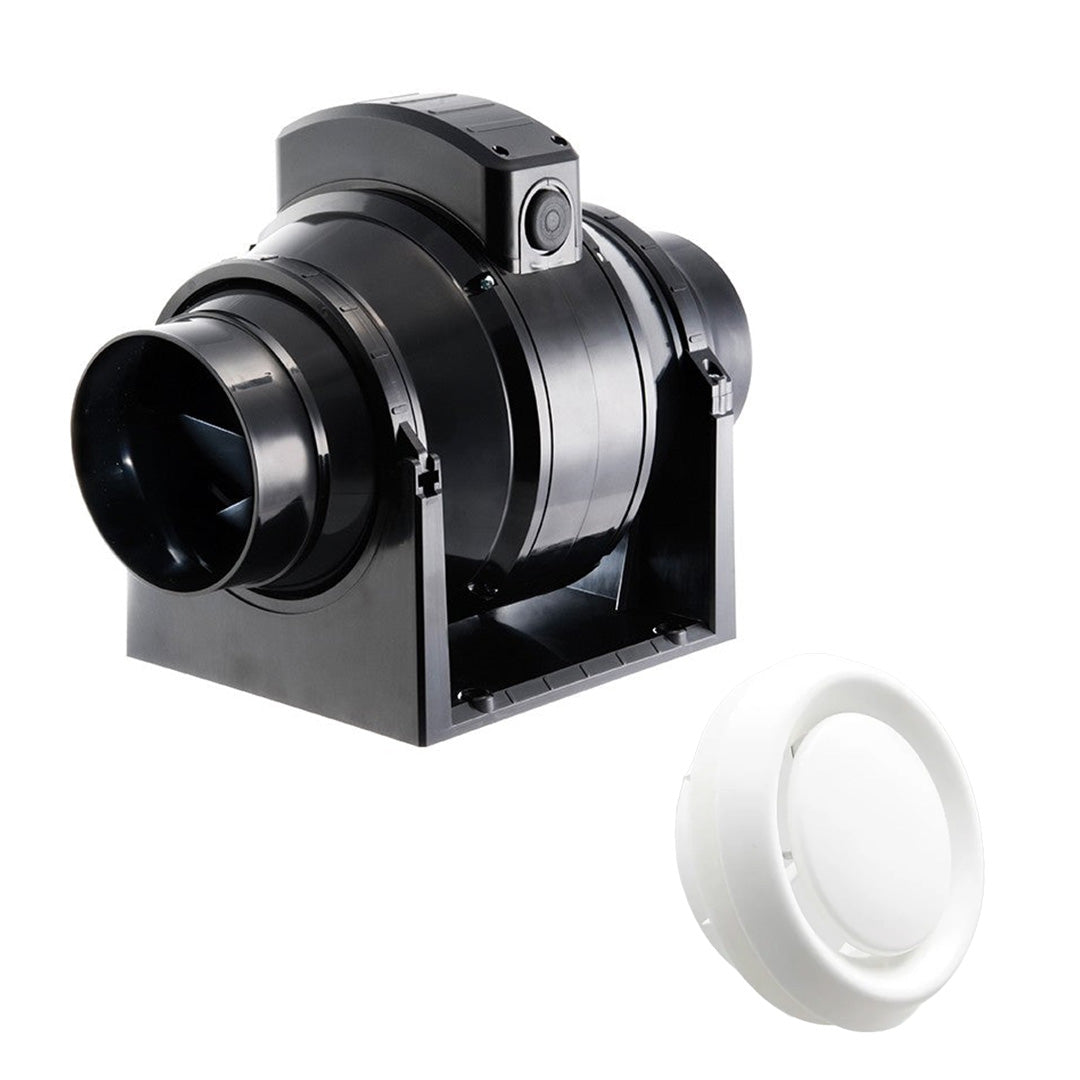

The MF100T is a powerful 100 mm in‑line mixed flow extractor fan designed to provide effective ventilation for bathrooms, kitchens, utility rooms and other moisture‑prone areas. Its mixed‑flow impeller design combines strong airflow with relatively low noise, helping to clear steam and odours efficiently. The adaptable three‑speed settings and built‑in adjustable run‑on timer allow the fan to keep working after the light is switched off to further remove lingering humidity and reduce condensation.

What sets this version apart is that it’s supplied as a complete kit including a 100 mm air diffuser, so you receive both the fan unit and a matching diffuser for the duct outlet. The included air diffuser provides a neat, finished look where the duct terminates inside the room or ventilation space — and helps guide extracted air smoothly into the ducting system. This “all‑in‑one” approach simplifies installation and saves you from having to source a separate diffuser or grille.

Built by a trusted ventilation brand, the MF100T with air diffuser kit combines durability and performance for everyday use. The fan’s long‑life ball‑bearing motor and IPX4‑rated construction make it suitable for typical wet environments, while the included air diffuser ensures a tidy, professional‑looking installation.

Downloads

Download mixflo-range-spec-sheet

Specification

Applicable Area	Bathroom, Commercial, Kitchen, Laundry Room, Office, Toilet, Warehouse
Extraction Rate Litres Second	50 L/s
Extractor Type	Inline
Finish Or Colour	Black
Maximum Airflow	245 m³/h
Minimum Airflow	180 m³/h
Minimum Voltage	220 V
Mounting	Ceiling
Noise Level Maximum	24 dB
Noise Level Minimum	20 dB
Number Of Speeds	3
Operating Temperature Maximum	40 °C
power consumption	20 W
Timer	Yes
Voltage	239 V
Height	230 mm
Length	298 mm
Weight	2 kg
Width	175 mm
