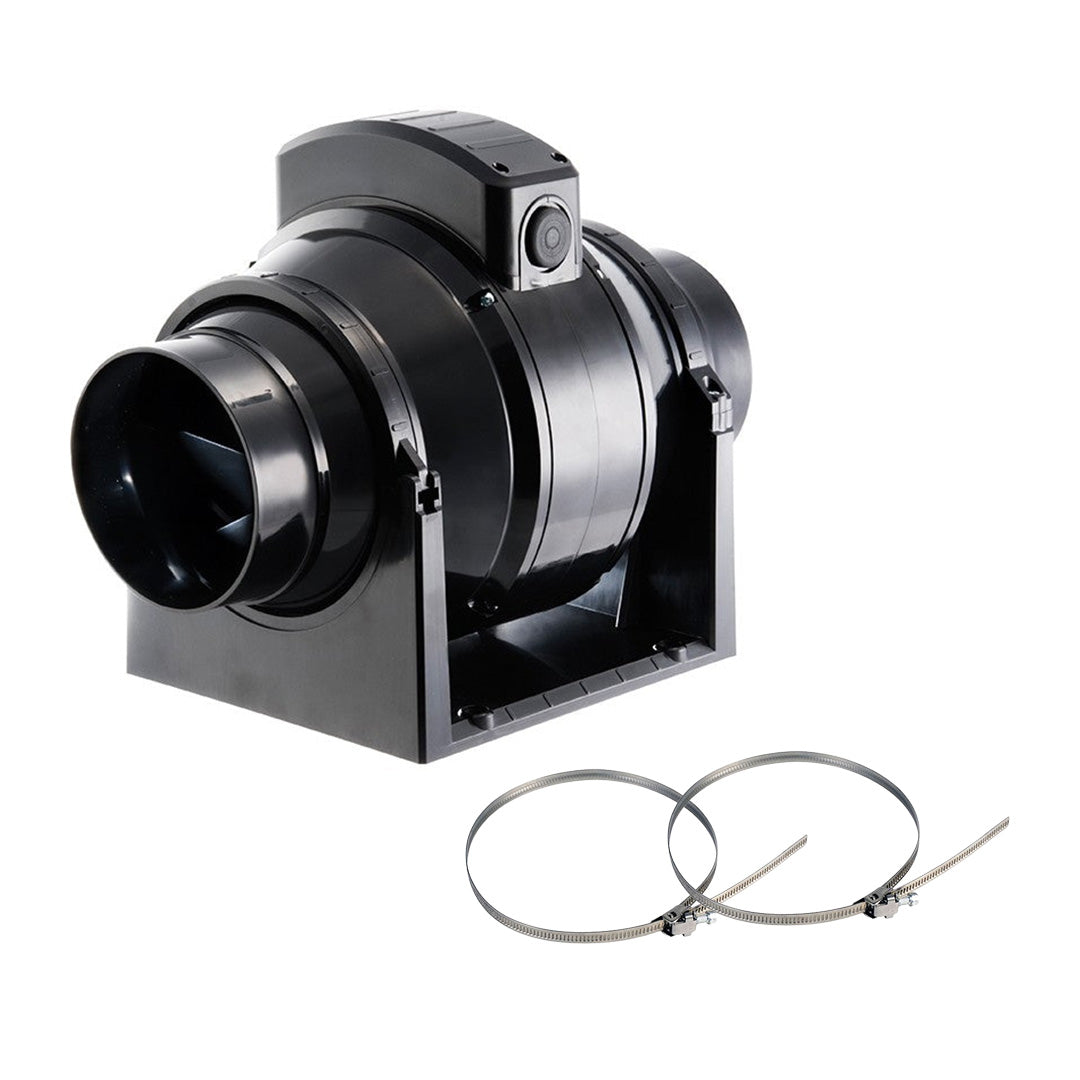

Manrose 100mm In-Line Mixed Flow Extractor Fan with Timer - MF100T With Clamps Kit - 1100

Product Overview

The Manrose MF100T is a robust 100 mm inline mixed flow extractor fan designed for efficient ventilation in bathrooms, kitchens, toilets and other areas where moisture and odours need removing. Its mixed flow design delivers high airflows (up to around 245 m³/h) with relatively low noise, and the integrated adjustable timer lets the fan continue running for up to about 20 minutes after activation, helping clear lingering humidity. Internally selectable speed settings give flexibility to match performance with extraction needs and installation conditions.

What sets this version apart is that it’s supplied as a full kit — including clamps — so you have everything needed to secure the unit into your ductwork without waiting for extra parts. This makes installation smoother, whether you’re fitting into flexible or rigid ducting runs in ceiling voids or loft spaces. The compact build and IPX4 rating also make it suitable for typical wet room environments.

Built by a trusted manufacturer with a reputation in residential and light commercial ventilation, the MF100T comes with long-life ball bearing motor technology and a multi-year warranty for peace of mind. Its double-insulated, BEAB-approved construction means professional-grade performance and safety with minimal fuss.

Downloads

Download mixflo-range-spec-sheet

Specification

Applicable Area	Bathroom, Commercial, Kitchen, Laundry Room, Office, Toilet, Warehouse
Colour	Black
Extraction Rate Litres Second	50 L/s
Extractor Type	Inline
Fan Size Diameter	4 in
IP Rating	IP44
Maximum Airflow	245 m³/h
Minimum Airflow	180 m³/h
Minimum Voltage	220 V
Mounting	Ceiling
Noise Level Maximum	24 dB
Noise Level Minimum	20 dB
Number Of Speeds	3
Operating Temperature Maximum	40 °C
power consumption	20 W
Timer	Yes
Voltage	240 V
Height	230 mm
Length	298 mm
Weight	2 kg
Width	175 mm
