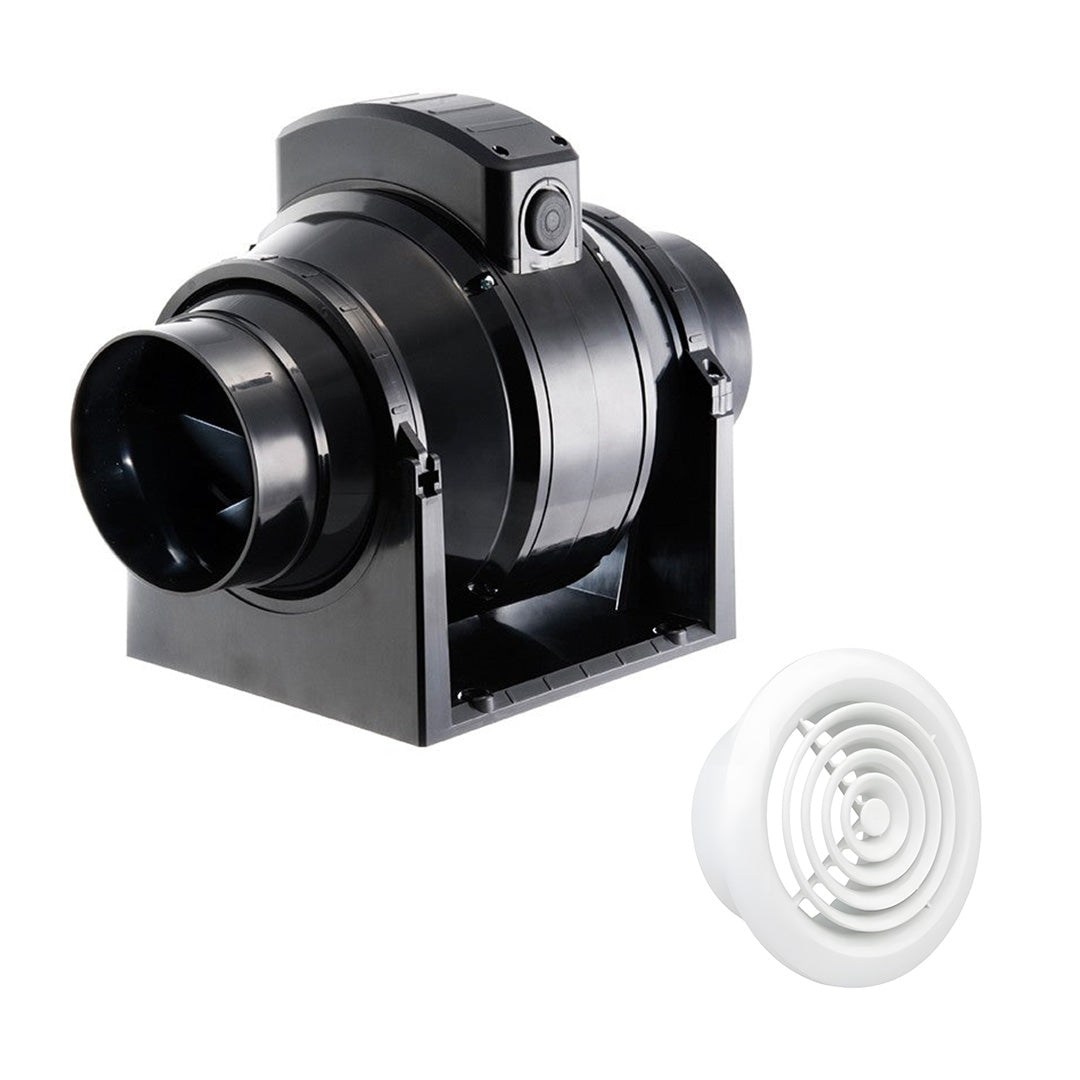

Manrose 100mm In-Line Mixed Flow Extractor Fan with Timer - MF100T With Grille Kit – 2100W

Product Overview

The Manrose MF100T is a powerful 100 mm in-line mixed flow extractor fan featuring an adjustable built-in timer that lets the unit continue running after activation to clear residual humidity and help prevent condensation and mould. Inline configuration means the fan is mounted out of sight in a loft or ceiling void, with ducting running between it and the grilles — which helps keep noise levels down while still providing high airflow performance. Mixed flow design boosts airflow efficiency, making it suitable for bathrooms, kitchens and utility spaces.

This version is supplied as a kit that includes the grille, so you have both the fan unit and a coordinating external or internal vent grille in one package — ideal for streamlining installation without the need to source extra parts separately. The grille not only provides a neat finished look where the duct vents into the room or outside, but also helps protect the ducting from dust and pests.

Built by a trusted ventilation manufacturer, the MF100T combines reliable performance with durability. Its long-life ball bearing motor and IPX4 moisture rating make it suitable for typical wet areas, while selectable speeds and the adjustable timer give you control to match your ventilation needs. The inclusion of a grille as part of the kit adds convenience and ensures a tidy, functional installation.

Downloads

Download mixflo-range-spec-sheet

Specification

Applicable Area	Bathroom, Commercial, Kitchen, Laundry Room, Office, Toilet, Warehouse
Colour	Black
Extraction Rate Litres Second	50 L/s
Extractor Type	Inline
Fan Size Diameter	4 in
IP Rating	IP44
Maximum Airflow	245 m³/h
Minimum Airflow	180 m³/h
Minimum Voltage	220 V
Mounting	Ceiling
Noise Level Maximum	24 dB
Noise Level Minimum	20 dB
Number Of Speeds	3
Operating Temperature Maximum	40 °C
power consumption	20 W
Timer	Yes
Voltage	240 V
Height	230 mm
Length	298 mm
Weight	2 kg
Width	175 mm
