Product Overview

The Manrose 120mm Extractor Fan is designed for larger bathrooms, toilets, cloakrooms and medium sized rooms, the 120mm (5") series of fans are 56% more powerful than their 100mm (4") counterparts, yet only 10% larger in surface area. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8 metres from the floor. XF120 Series is designed for wall or ceiling mounting, (pullcord wall-mounting only).

Features

• Single phase consuming 15.5 Watts
• Designed for wall, ceiling or window mounting, the efficient range of axial flow extractor fans are available in eleven options
• Quiet in operation, easy to install and possess the latest design technology
• The extract rate is 130m³/hr, 36 litres per second
• Power is provided by a single phase induction motor with pre-oiled bearings fitted for a long, maintenance free life
• Manufactured using high gloss ABS thermoplastics for strength, durability, aesthetics and easy cleaning
• The 120mm (5") series complies with the Building Regulations on Ventilation (F1)

Short Description

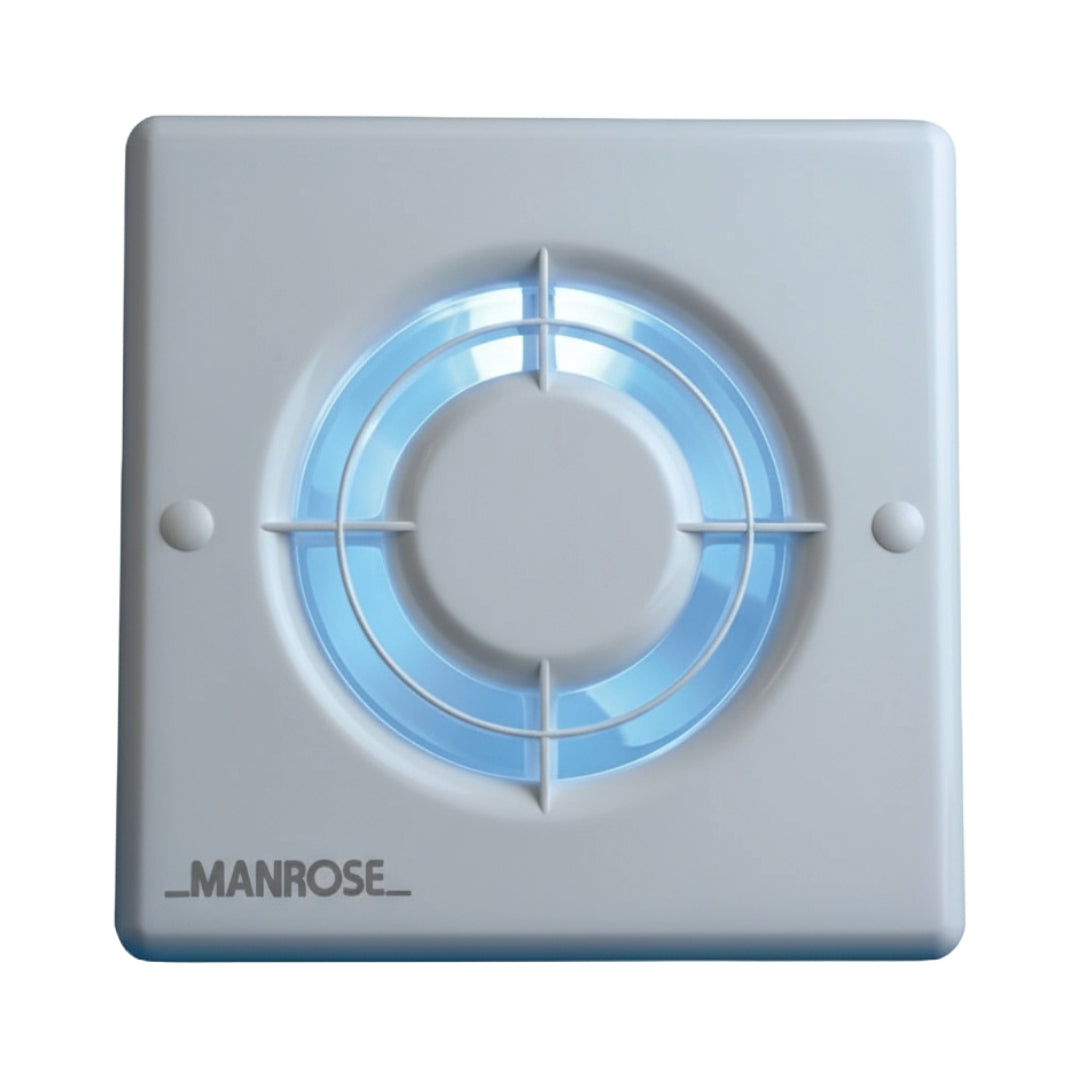

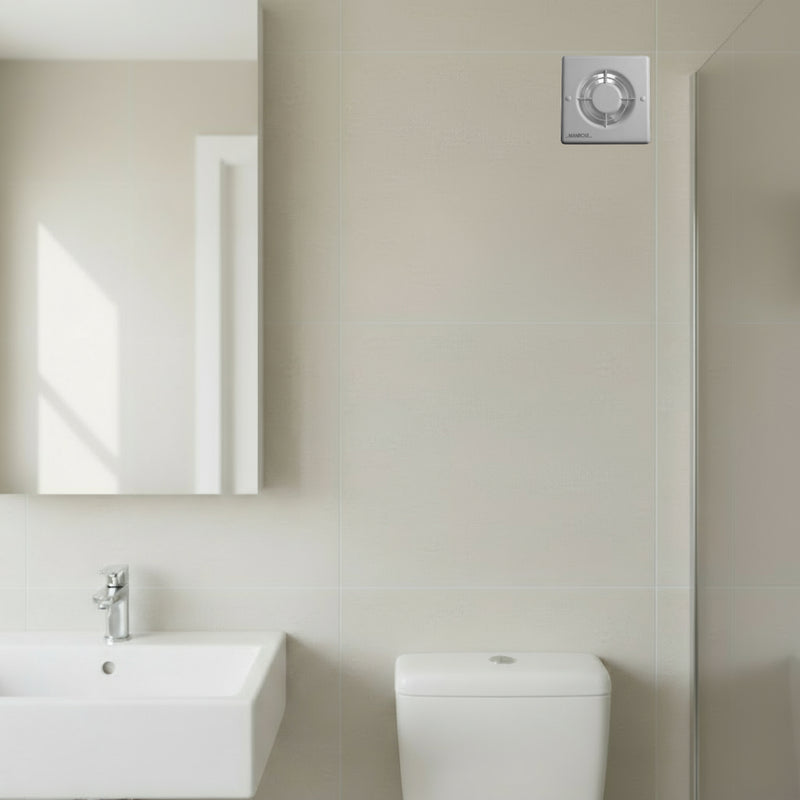

Manrose 120mm (5") Axial Extractor Fan with Timer & Pullcord

Specification

• Colour: White
• Voltage: 220-240V - AC. 50Hz
• Mounting: Wall
• Noise: 41.0 dB(A)
• Electrical Power: 15.5W
• Pull Cord: Yes
• Application: Bathroom
• Hole Size: 5"
• Type of Extractor: Axial
• Number of Speeds: 1
• Extraction Rate: 36 litres per second
• 120mm (5")
• 130m³/hr, 36 litres per second
• Voltage: 220-240V - AC. 50Hz
• Maximum pressure: 35 p.a.
• Fan speed: 2000 r.p.m.
• Maximum operating temperature: 40ºC
• Dimensions: Height: 182mm x Width: 182mm x Depth: 78mm

Specification

Applicable Area	Bathroom, Kitchen, Laundry Room, Toilet
Extraction Rate Litres Second	36 l
Extractor Type	Axial
Fan Size Diameter	5 INCH
Fan Speeds	1
Finish Or Colour	White
Installation Kit	Yes
IP Rating	IP24
Lip Depth	32 mm
Minimum Voltage	220 v
Mounting	Wall
power consumption	15.5 w
Pull Cord	Yes
SELV	Yes
Timer	Yes
Voltage	240 v
Height	182 mm
Weight	0.75 KG
Width	182 mm
