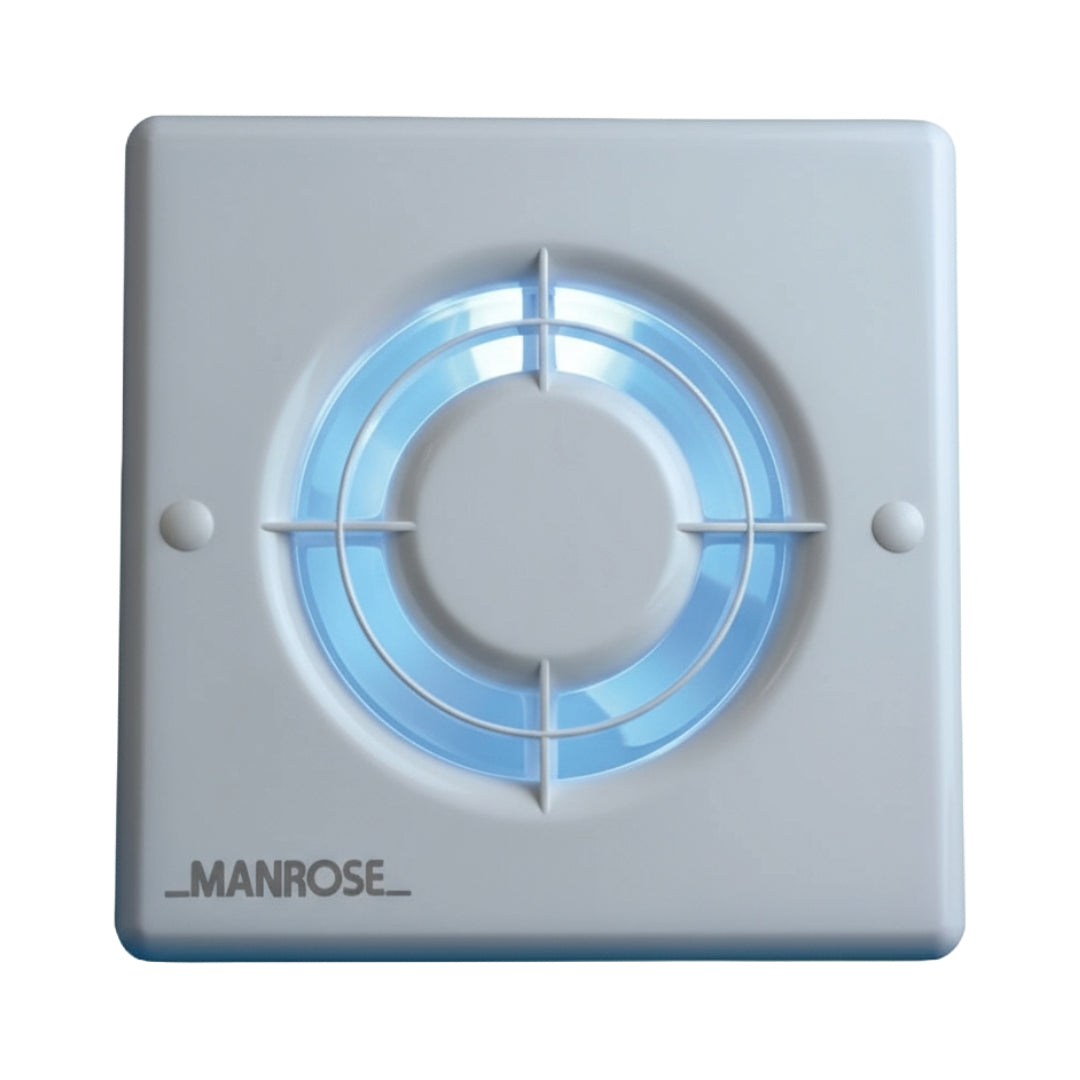

Manrose 120mm (5) Axial Extractor Fan with Humidity Control - XF120H

Quick Find Code: XF120H

3 Year Warranty
Free Next Day Delivery on orders over £50*
  • Designed for larger bathrooms, toilets, and cloakrooms
  • Extract rate is 130m3/hr, 36 litres per second
  • All wiring must comply with current IEE regulations

Manrose 120mm (5) Axial Extractor Fan with Humidity Control - XF120H

Quick Find Code: XF120H

3 Year Warranty
Free Next Day Delivery on orders over £50*
  • Designed for larger bathrooms, toilets, and cloakrooms
  • Extract rate is 130m3/hr, 36 litres per second
  • All wiring must comply with current IEE regulations

£46.95 (inc. VAT)

Show ex. VAT

Buy more, save more!

QuantityPrice (inc. VAT)Saving Per Item
10+£46.02Save 2%
20+£45.08Save 4%
30+£44.14Save 6%

Product Overview

The Manrose 120mm Extractor Fan is designed for larger bathrooms, toilets, cloakrooms and medium sized rooms, the 120mm (5") series of fans are 56% more powerful than their 100mm (4") counterparts, yet only 10% larger in surface area. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8 metres from the floor. XF120 Series is designed for wall or ceiling mounting, (pullcord wall-mounting only).

  • Single phase consuming 15.5 Watts
  • Designed for wall, ceiling or window mounting, the efficient range of axial flow extractor fans are available in eleven options
  • Quiet in operation, easy to install and possess the latest design technology
  • The extract rate is 130m3/hr, 36 litres per second
  • Power is provided by a single phase induction motor with pre-oiled bearings fitted for a long, maintenance free life
  • Manufactured using high gloss ABS thermoplastics for strength, durability, aesthetics and easy cleaning
  • The 120mm (5") series complies with the Building Regulations on Ventilation (F1)
  • Mounting: Wall
  • Noise: 41.0 dB(A)
  • Hole Size: 5"
  • Type of Extractor: Axial
  • Number of Speeds: 1
  • Extraction Rate: 36 litres per second
  • Maximum pressure: 35 p.a.
  • Fan speed: 2000 r.p.m.
  • Maximum operating temperature: 40ºC
  • Dimensions: Height: 182mm x Width: 182mm x Depth: 78mm


Criteria

  • Application: Bathroom
  • Wattage: 15.5
  • Voltage: 220-240V - AC. 50Hz
  • Width: 182
  • Height: 182
  • Colour: White
  • Manufacturer Code: XF120H

Specification

Airflow130m³/h
Applicable AreaBathroom, Kitchen, Laundry Room, Toilet
Extraction Rate Litres Second36L/s
Extractor TypeAxial
Fan Size Diameter5in
Finish Or ColourWhite
HumidistatYes
Installation KitYes
IP RatingIP24
Lip Depth32mm
Minimum Voltage220V
MountingCeiling, Wall
MPNXF120H
Number Of Speeds1
Old GTIN5020953550211
power consumption15.5W
SELVYes
TimerYes
Voltage240V
Height182mm
Weight0.75kg
Width182mm
