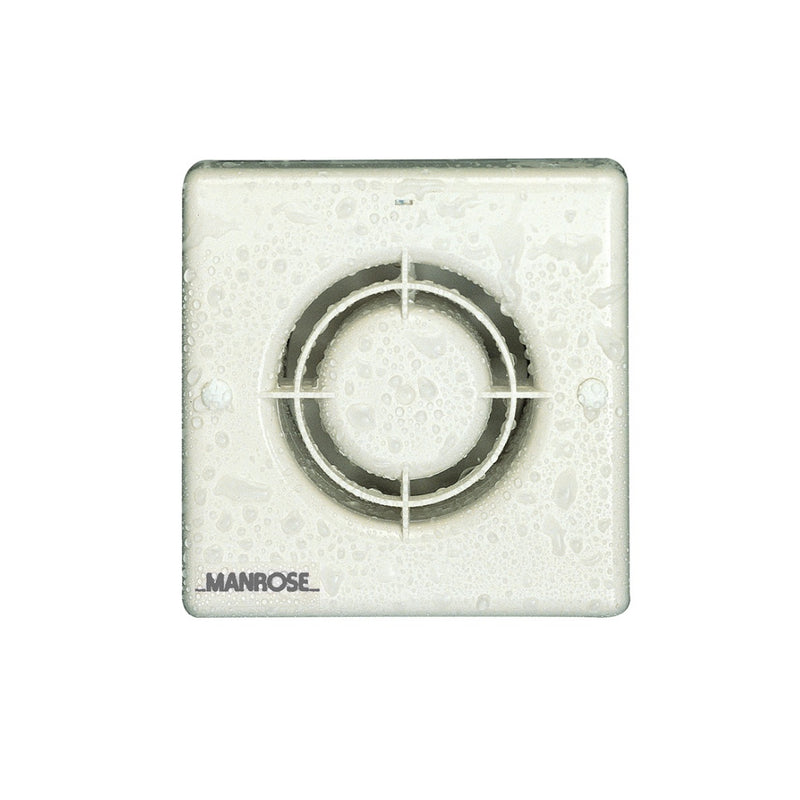

Manrose 150mm (6inch.) 12V Low Voltage Extractor Fan - XF150ALV

Manrose 150mm (6inch.) 12V Low Voltage Extractor Fan - XF150ALV

Quick Find Code: XF150ALV

3 Year Warranty
Free Delivery on orders over £30 (excluding Highlands and Islands)

Specifications

Applicable AreaBathroom, Commercial, Kitchen, Laundry Room, Office, Toilet, Warehouse
Backdraft ShutterYes
Extractor TypeAxial
Fan Size Diameter150 mm
Fan Size Diameter Inches6 INCH
Fan Speeds1

£53.99 (inc. VAT)

Show ex. VAT

Buy more, save more!

QuantityPrice (inc. VAT)Saving Per Item
3+£52.92Save 2%
6+£52.38Save 3%

Product Overview

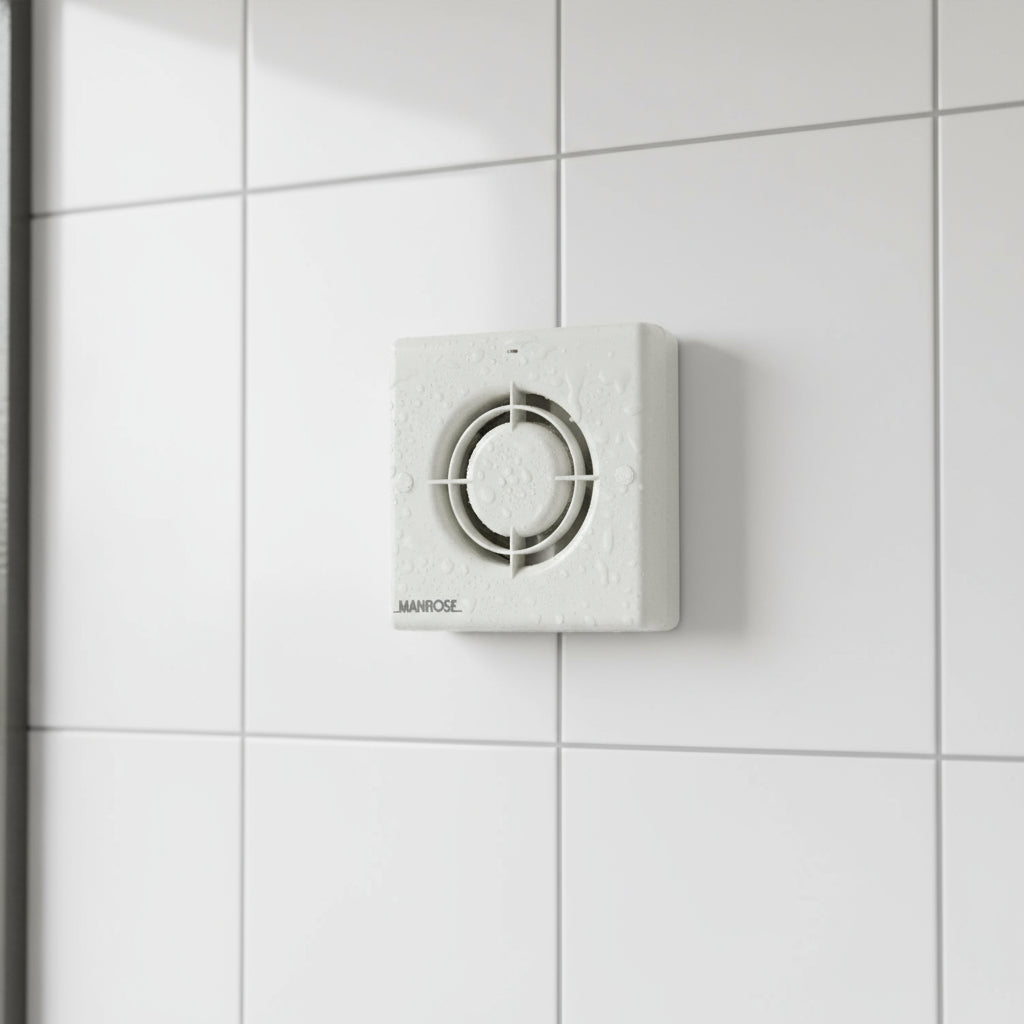

The Manrose 12 Volt SELV Fan Range is designed for wall, ceiling or window mounting, the 12 Volt SELV fans are available in three diameters - 100mm (4"), 120mm (5") and 150mm (6") and in seven options. Its suitable for mounting within the splash area of a shower or bath (where current regulations prevent the use of conventional fans), the 12 Volt fan is a standard model manufactured with a 12V - 50Hz shaded pole motor. The transformer and switching mechanism is mounted remotely either in the roof space or high on the ceiling next to the pullcord switch. Pullcord, humidistat, PIR and versions have to be mounted inside the room where the fan is installed and out of the reach of the person using the bath or shower. A Centrifugal 12 Volt fan is available, fitted with a backward curved centrifugal impeller for large airflow against the high pressures caused by longer lengths of ducting and resistance by grilles.

  • The extract rate of the 150mm (6") model is 230m3/hr 64 litres per second
  • The CF200LV centrifugal fan has an extract rate of 110m3/hr 31 litres per second
  • The units are all manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning
  • Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life
  • Designed to exceed the Building Regulations on Ventilation (F1)
  • Uses LT12 transformer (not included)
  • Mounting: Wall
  • Hole Size: 6"
  • Type of Extractor: Axial
  • Number of Speeds: 1
  • Dimensions: Height: 203mm x Width: 203mm x Depth: 95mm

Features

  • The extract rate of the 150mm (6") model is 230m3/hr 64 litres per second
  • The CF200LV centrifugal fan has an extract rate of 110m3/hr 31 litres per second
  • The units are all manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning
  • Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life
  • Designed to exceed the Building Regulations on Ventilation (F1)

Specification

  • Colour: White
  • Voltage: 12 volts AC. - 50Hz
  • Mounting: Wall
  • Electrical Power: 25W
  • Application: Bathroom
  • Hole Size: 6"
  • Type of Extractor: Axial
  • Number of Speeds: 1
  • Extraction Rate: 64 litres per second
  • Dimensions: Height: 203mm x Width: 203mm x Depth: 95mm

Specification

Applicable AreaBathroom, Commercial, Kitchen, Laundry Room, Office, Toilet, Warehouse
Backdraft ShutterYes
Extractor TypeAxial
Fan Size Diameter150 mm
Fan Size Diameter Inches6 INCH
Fan Speeds1
Finish Or ColourWhite
Installation KitYes
IP RatingIP44
Lip Depth72 mm
Low Energy Low CarbonYes
Minimum Voltage12 v
MountingCeiling, Wall
Number Of Speeds1
power consumption20 w
SELVYes
Voltage12 v
Height203 mm
Length95 mm
Weight1.1 KG
Width203 mm
