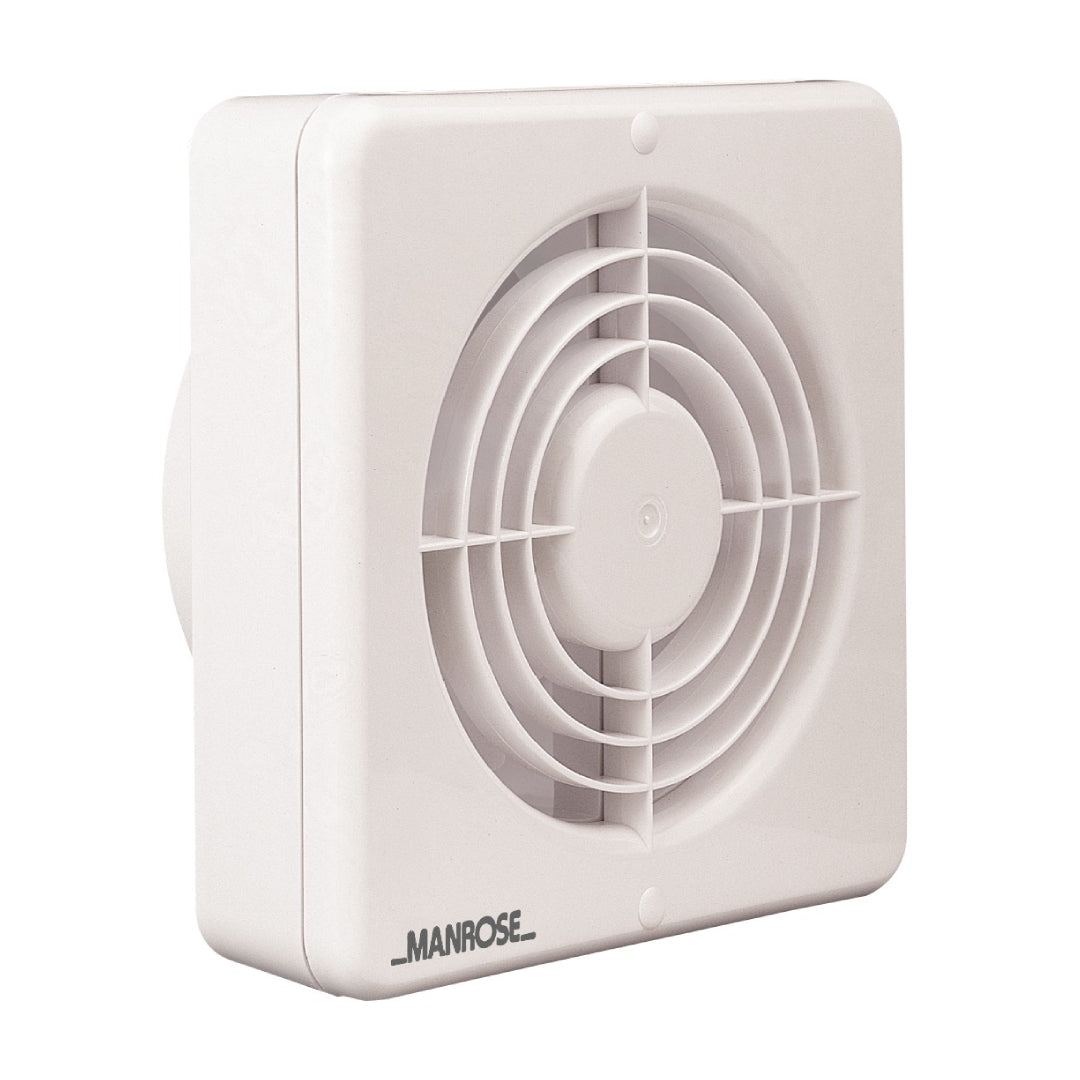

Manrose 150mm (6inch.) PIR Axial Extractor Window Fan - WF150BPIR

Manrose 150mm (6inch.) PIR Axial Extractor Window Fan - WF150BPIR

Quick Find Code: WF150BPIR

3 Year Warranty
Free Delivery on orders over £30 (excluding Highlands and Islands)

Specifications

Applicable AreaBathroom, Commercial, Kitchen, Laundry Room, Office, Toilet, Warehouse
Backdraft ShutterYes
Extractor TypeAxial
Fan Size Diameter150 mm
Fan Size Diameter Inches6 INCH
Fan Speeds1

£74.95 (inc. VAT)

Show ex. VAT

Buy more, save more!

QuantityPrice (inc. VAT)Saving Per Item
3+£73.46Save 2%
6+£72.71Save 3%

Product Overview

The Manrose 150mm Extractor Fan is designed for wall, ceiling or window mounting, the efficient and easy to install range of 150mm (6") extractor fans are available in twelve options, and are an alternative style and design to the traditional 6" kitchen style. The fans are suited to larger bathrooms, utility rooms, shops, offices, restaurants, etc. Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life. These fans are double insulated and do not require anearth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan should not be accessible to a person using either the shower or the bath and mounted a minimum of 1.8 metres from the floor. WF150B Series fans are designed to be fitted in either a window or wall through a standard 170-184mm (63/4" - 71/4") hole. A wall fixing kit FK1 (1300) is available which comprises of wall plugs,screws and a 400mm length of 6" diameter aluminium flexible ducting (when fully extended).

Features

  • Single phase consuming 25 Watts
  • Extract rate for the 150B Series is 230m3/hr, 64 litres per second
  • Manufactured using high gloss ABS thermoplastics for strength, durability, aesthetics and easy cleaning
  • Designed to comply with the Building Regulations on Ventilation (F1)

Specification

  • Colour: White
  • Voltage: 220-240V - AC. 50Hz
  • Mounting: Wall
  • Noise: 40.0 dB(A)
  • Electrical Power: 25W
  • Application: Bathroom
  • Hole Size: 6"
  • Type of Extractor: Axial
  • Number of Speeds: 1
  • Extraction Rate: 64 litres per second
  • 150mm (6")
  • Maximum pressure: 50 p.a.
  • Fan speed: 2400 r.p.m.
  • Maximum operating temperature: 40°C
  • Dimensions: Height: 203mm x Width: 203mm x Depth: 118mm

Specification

Applicable AreaBathroom, Commercial, Kitchen, Laundry Room, Office, Toilet, Warehouse
Backdraft ShutterYes
Extractor TypeAxial
Fan Size Diameter150 mm
Fan Size Diameter Inches6 INCH
Fan Speeds1
Finish Or ColourWhite
Installation KitYes
IP RatingIP44
Lip Depth23 mm
Minimum Voltage220 v
MountingWindow
PIR FittedYes
power consumption17 w
TimerYes
Voltage240 v
Height203 mm
Weight1.52 KG
Width203 mm
