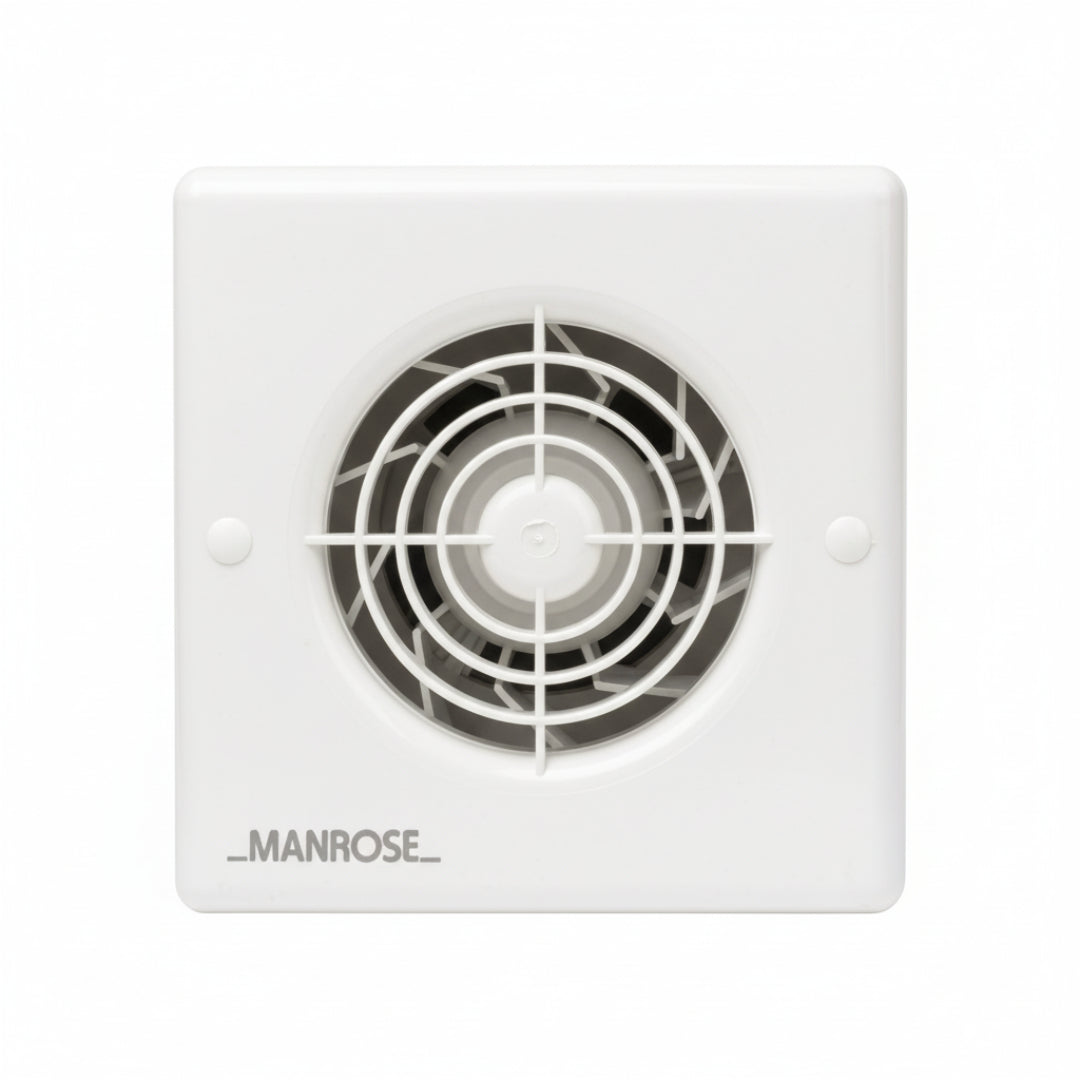

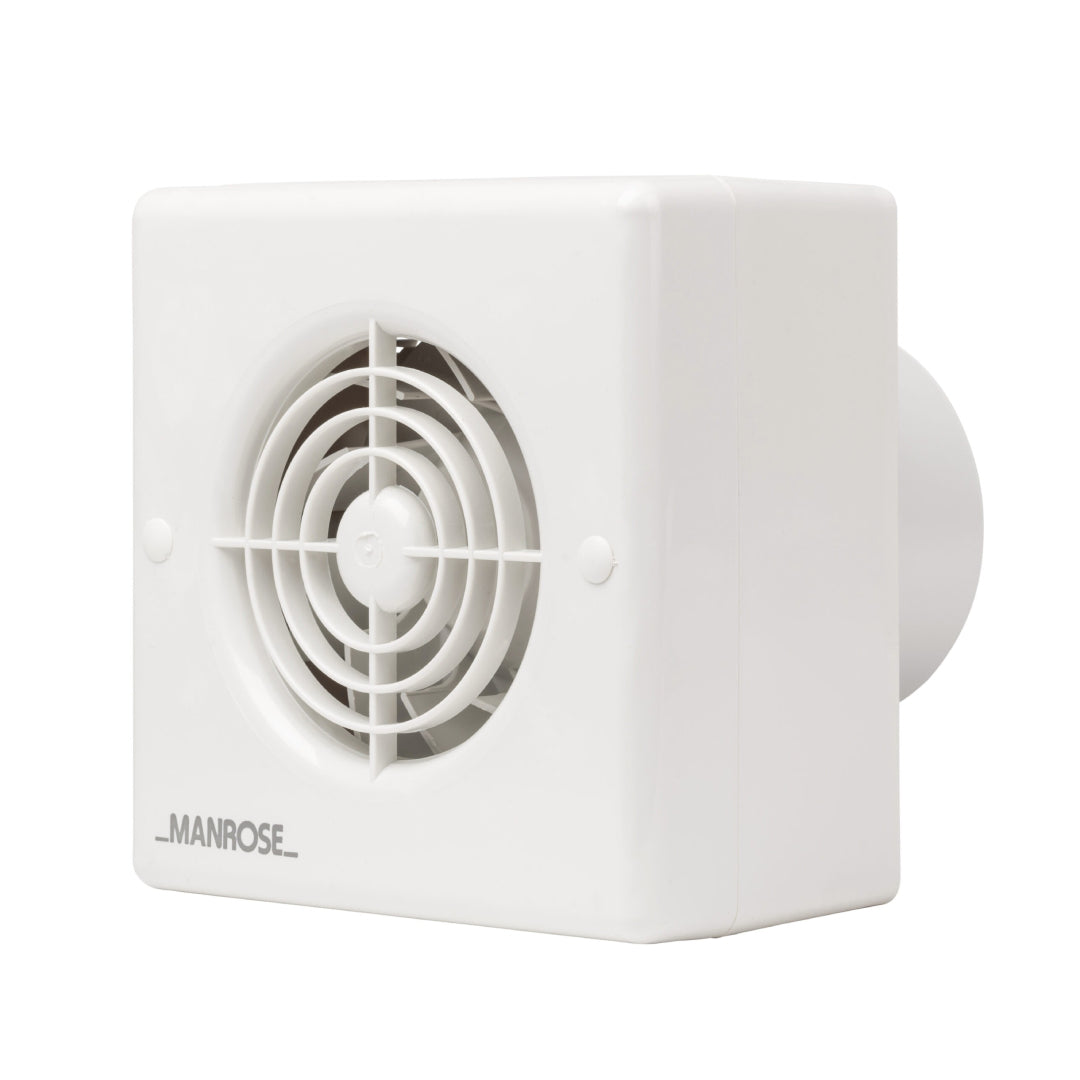

Manrose 100mm (4") Auto Humidity Bathroom Extractor Fan with Pull Cord - WF100AHP

Product Overview

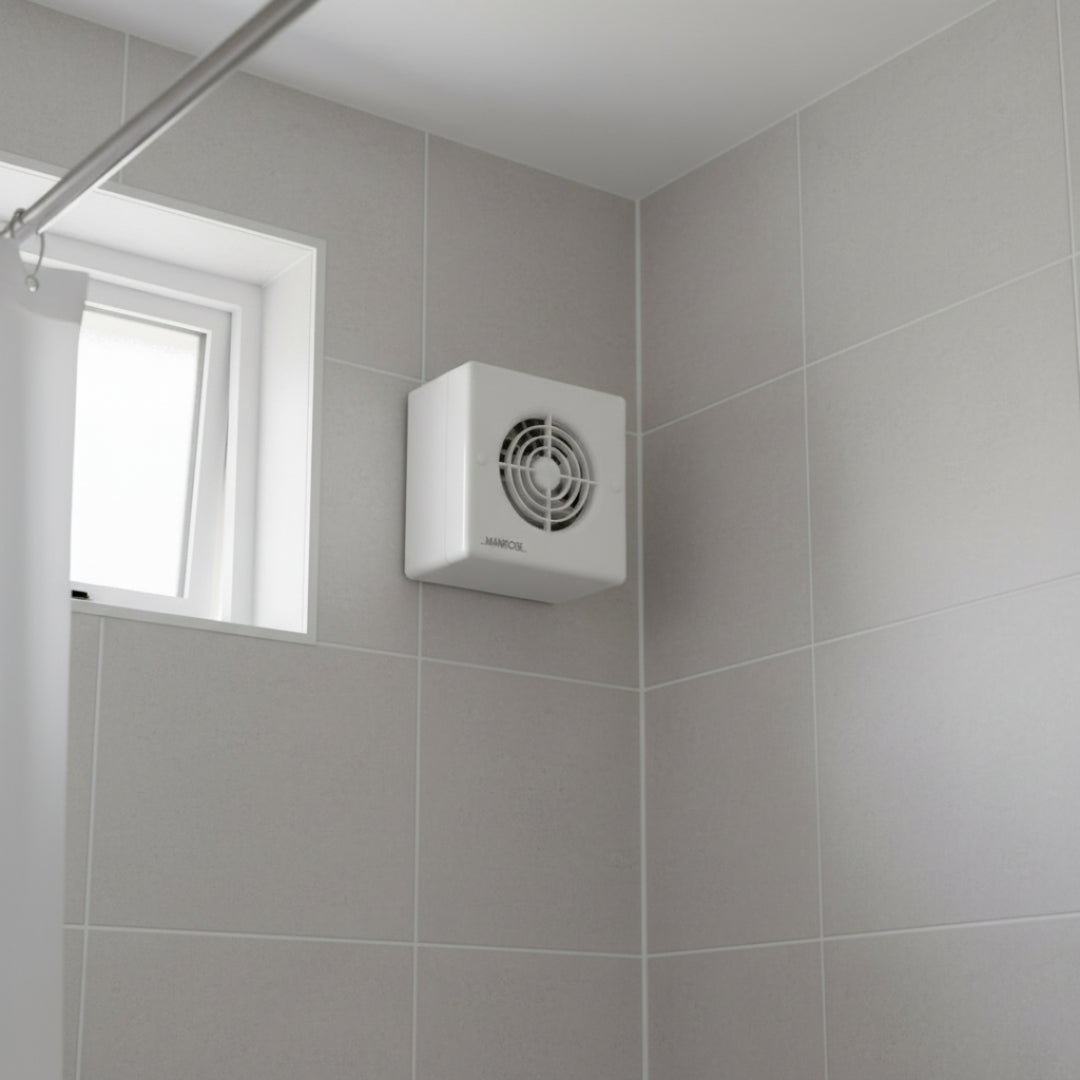

WF100 series window extractor fans are designed for window mounting through a standard 115 - 155mm diameter hole in 4mm - 10mm thick glass.

Designed for wall, ceiling or window mounting, the Automatic extractor fan range is available in ten options, all incorporating thermo-activated internal shutters behind the interior grille which open silently approximately 45 seconds after the fan is switched on.

The range is available in three sizes – 100mm (4″), 120mm (5″) and 150mm (6″).

The extract rate of the 100mm series is 85m³/hr, 23 litres per second, whilst the 120mm units for larger bathrooms, toilets and utility rooms are 56% more powerful with an impressive extract rate of 130m³/hr, 36 litres per second. The largest fan in this range, the 150mm (6″), has a maximum performance of 230m³/hr, 64 litres per second.

Power is provided by a single phase induction motor with pre-oiled bearings for a maintenance-free life.

The units are all manufactured using high gloss ABS thermoplastics for strength and durability, aesthetics and easy cleaning.

Downloads

Download WF Product Datasheet

Specification

Airflow	85 m3/h
Applicable Area	Bathroom
Extraction Rate Litres Second	23 L/s
Extractor Type	Axial
Finish Or Colour	White
Humidistat	Yes
IP Rating	IP44
Minimum Voltage	230 V
Mounting	Window
MPN	WF100AHP
Noise Level Maximum	40 dB
power consumption	20 W
Timer	No
Voltage	240 V
Depth	115 mm
Height	163 mm
Width	163 mm
