Product Overview

The Manrose Gold range extractor fans are installed with a high quality ball bearing motor. This unique design feature promotes the life of the fan ventilating your home twice as long and quietly. It is manufactured using high gloss ABS thermoplastics for strength, durable and easy cleaning. The Gold range is designed for wall or ceiling mounting (pullcord wall mounting only). These fans can be window mounted using our window kit available separately. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8 metres from the floor.

Features

• Longer lasting ball bearing motor
• Suitable for wall or ceiling mounting
• Complies with the building regulations

Short Description

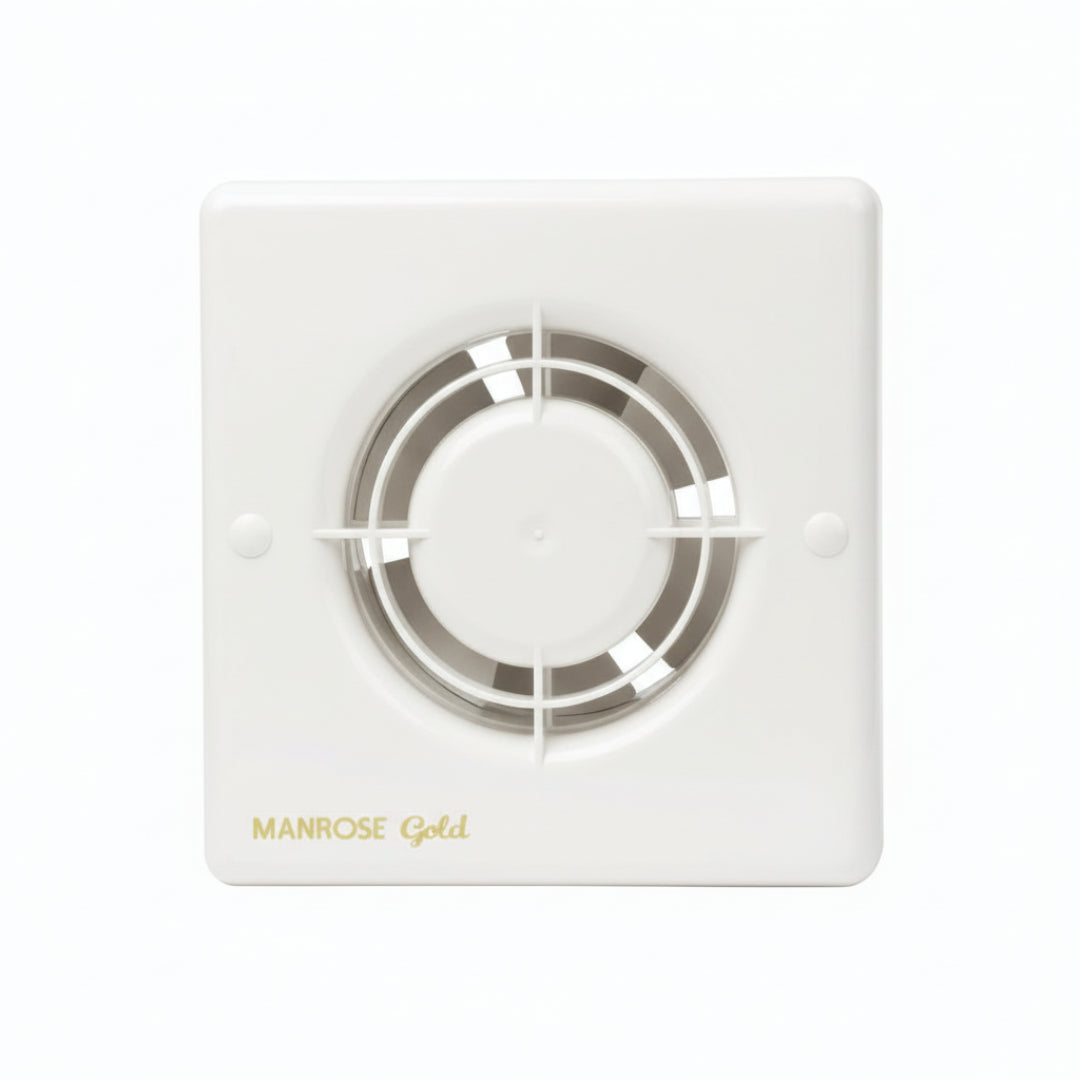

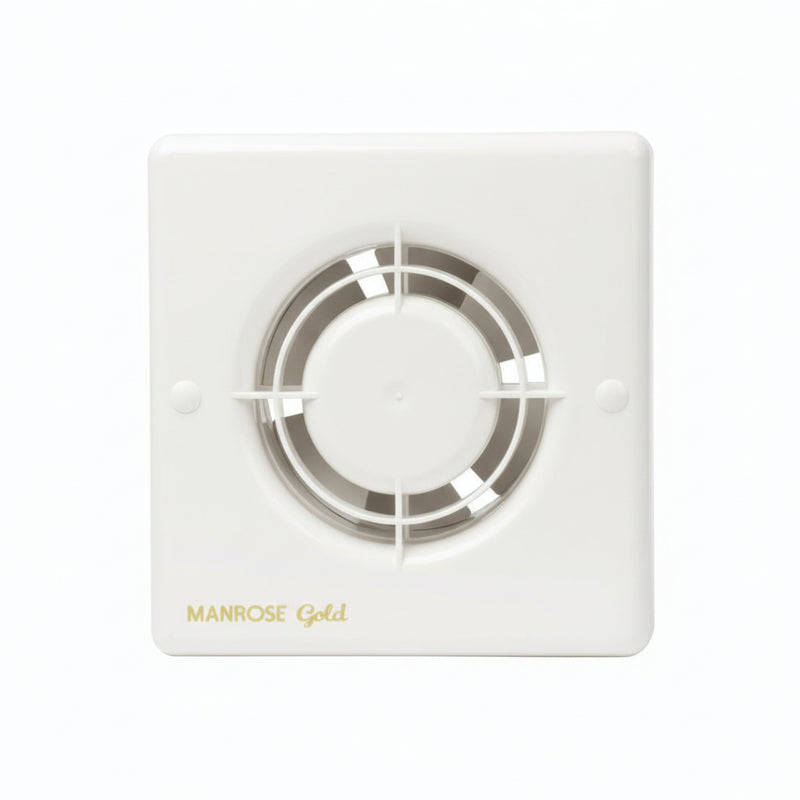

Manrose 12W Gold Standard Axial Bathroom Extractor Fan

Specification

• Colour: White
• Warranty: 5 Years
• Voltage: 220-240V - AC. 50Hz
• Mounting: Wall
• Noise: 41 dB(A)
• Electrical Power: 12W
• Application: Bathroom
• Hole Size: 4"
• Type of Extractor: Axial
• Number of Speeds: 1
• Extraction Rate: 23 litres per second
• 100mm (4")
• Maximum pressure: 20 p.a.
• Fan speed: 2400 r.p.m.
• Maximum operating temperature: 40ºC
• Dimensions: Height: 163mm x Width: 163mm x Depth: 75mm

Specification

Applicable Area	Bathroom, Toilet
Collection Name	Gold
Extractor Type	Axial
Fan Size Diameter	100 mm
Fan Speeds	1
Finish Or Colour	White
Installation Kit	Yes
IP Rating	IP44
Lip Depth	30 mm
Minimum Voltage	220 v
Mounting	Ceiling, Wall, Window
power consumption	12 w
Voltage	240 v
Height	163 mm
Weight	0.66 KG
Width	163 mm
