Product Overview

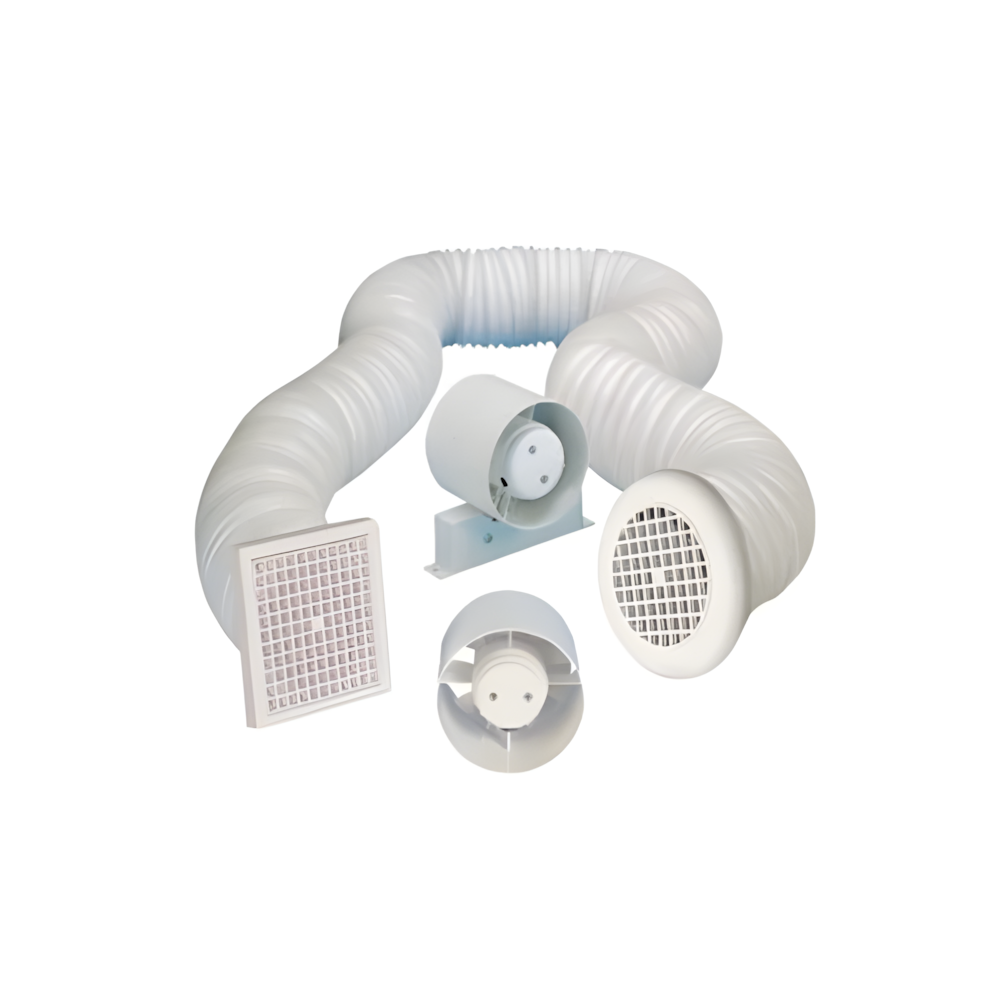

Designed for the safe ventilation of bathrooms, toilets and shower rooms, the SF 100 (100mm 4") is 85m³/hr 23 litres per second. Available with or without a timer, the SF100 fan kits are supplied complete with a fan unit, one length of PVC flexible ducting, one internal (white) and one external wall grille, fixing screws, plugs and straps to secure the duct to the grilles. The units are all manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning. Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life. Designed to comply with the Building Regulations on Ventilation (F1).

Features

• White Bezel
• Installed in Loft or Roof Space

Short Description

Manrose 100mm/4" 240v Timer In-line Axial Fan Kit

Specification

• Maximum pressure: 20 p.a.
• Fan speed: 2400 r.p.m.
• Sound volume: 41.0 dB(A)
• Maximum operating temperature: 40ºC
• Extraction Rate 85m³/hr
• Noise Level 41dBA at 3m
• Ceiling-Mounted
• Timer: Max 20min

Specification

Applicable Area	Bathroom, Toilet
Extraction Rate Litres Second	23 l
Extractor Type	Inline
Fan Size Diameter	4 INCH
Fan Speeds	1
Finish Or Colour	White
Installation Kit	Yes
IP Rating	IP44
Lip Depth	10 mm
Minimum Voltage	220 v
Mounting	Ceiling
Timer	Yes
Voltage	240 v
Height	130 mm
Weight	1 KG
Width	155 mm
