Product Overview

Sangamo are a UK manufacturer of time clocks/heating controls, thermostats, immersion controllers & programmers. The brand is also recognised for their Round Pattern Time Switches.

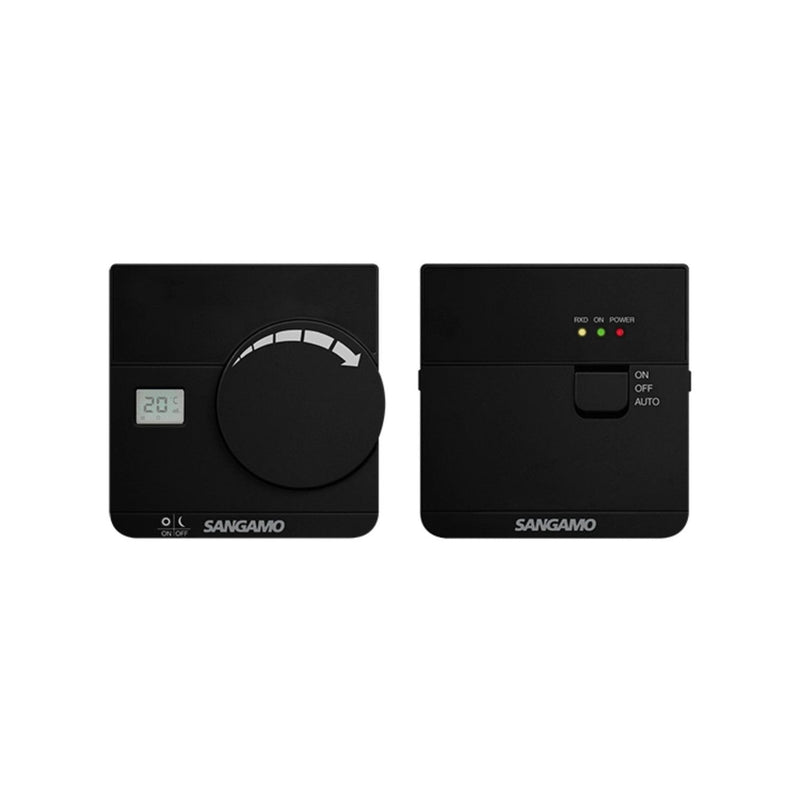

CHPRSTATDRFB - Electronic Wireless Thermostat with Digital Display

• Large Dial with Digital Display
• Wireless Communication Between Thermostat and Receiver
• Electronic Sensor for Accurate and Responsive Performance
• TPI (Time Proportional & Integral) Control for Heating Efficiency
• Comfort/Economy or ON/OFF Modes
• Battery Powered with Low Indication Status (Batteries Supplied)
• 5°C to 30°C Set Temperature Range
• 0.5°C and 1°C Temperature Swing Adjustment
• 5°C Frost Protection
• Transmission frequency: 433 Mhz (80m Open Field, 30m Indoor Transmission)
• 16A Receiver Contact Rating (Volt Free)
• Energy efficiency; ERP Class 4, 2% value
• Operating Temperature: 0°C to 50°
• Material: ABS
• Dimensions: 86mm x 88mm x 38mm

Downloads

Download CHPRSTATDRFB Datasheet

Specification

Luckins Code	434561283
MPN	CHPRSTATDRFB
Old GTIN	5060654464165
Operating Temperature Maximum	50°C
Depth	38mm
Height	88mm
Weight	0.42kg
Width	86mm
