Product Overview

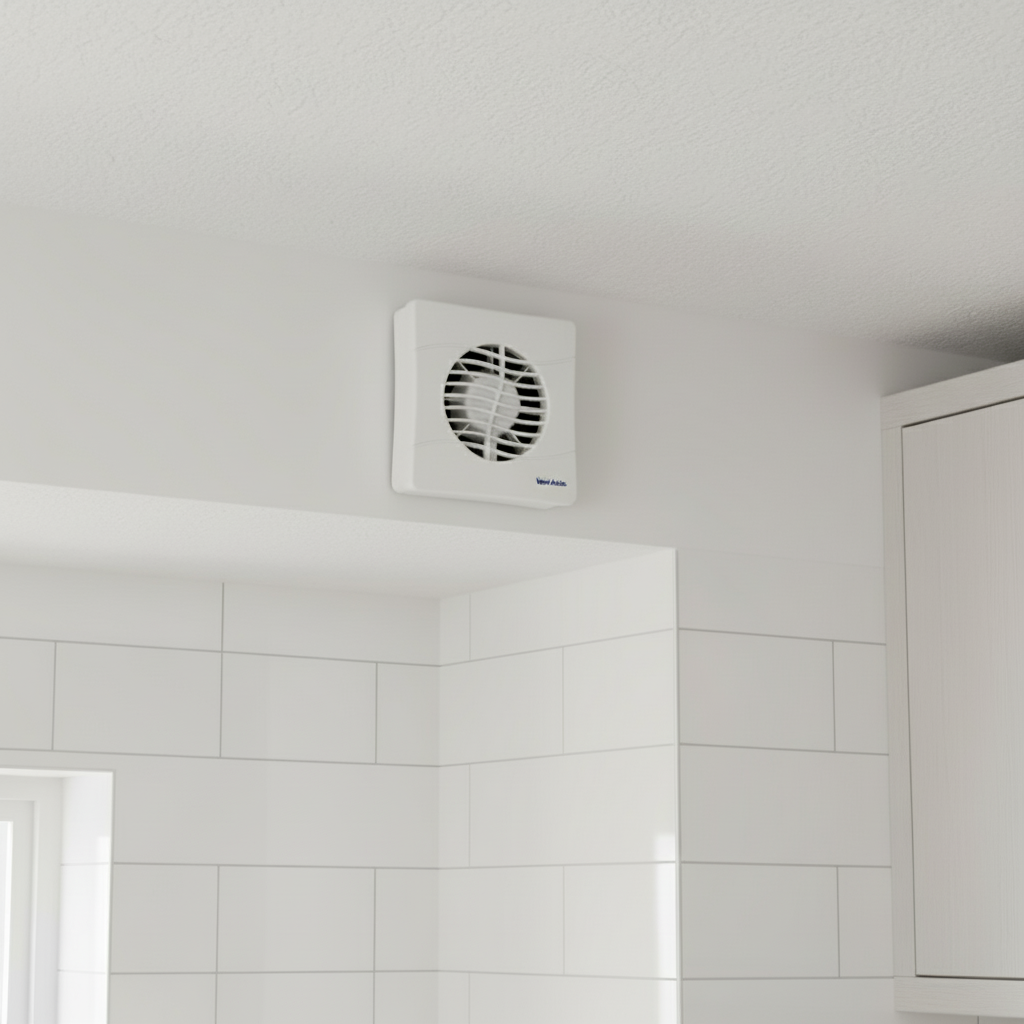

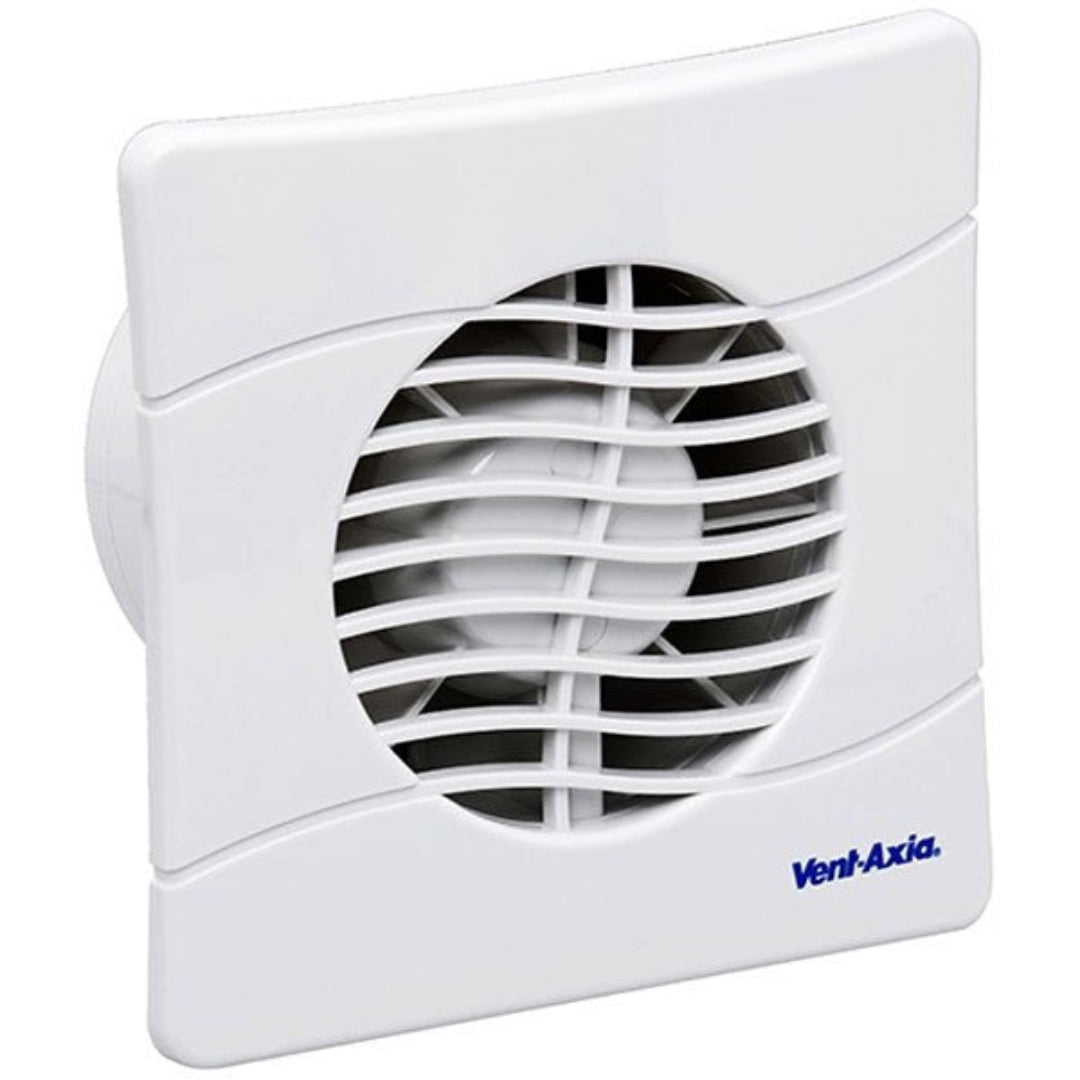

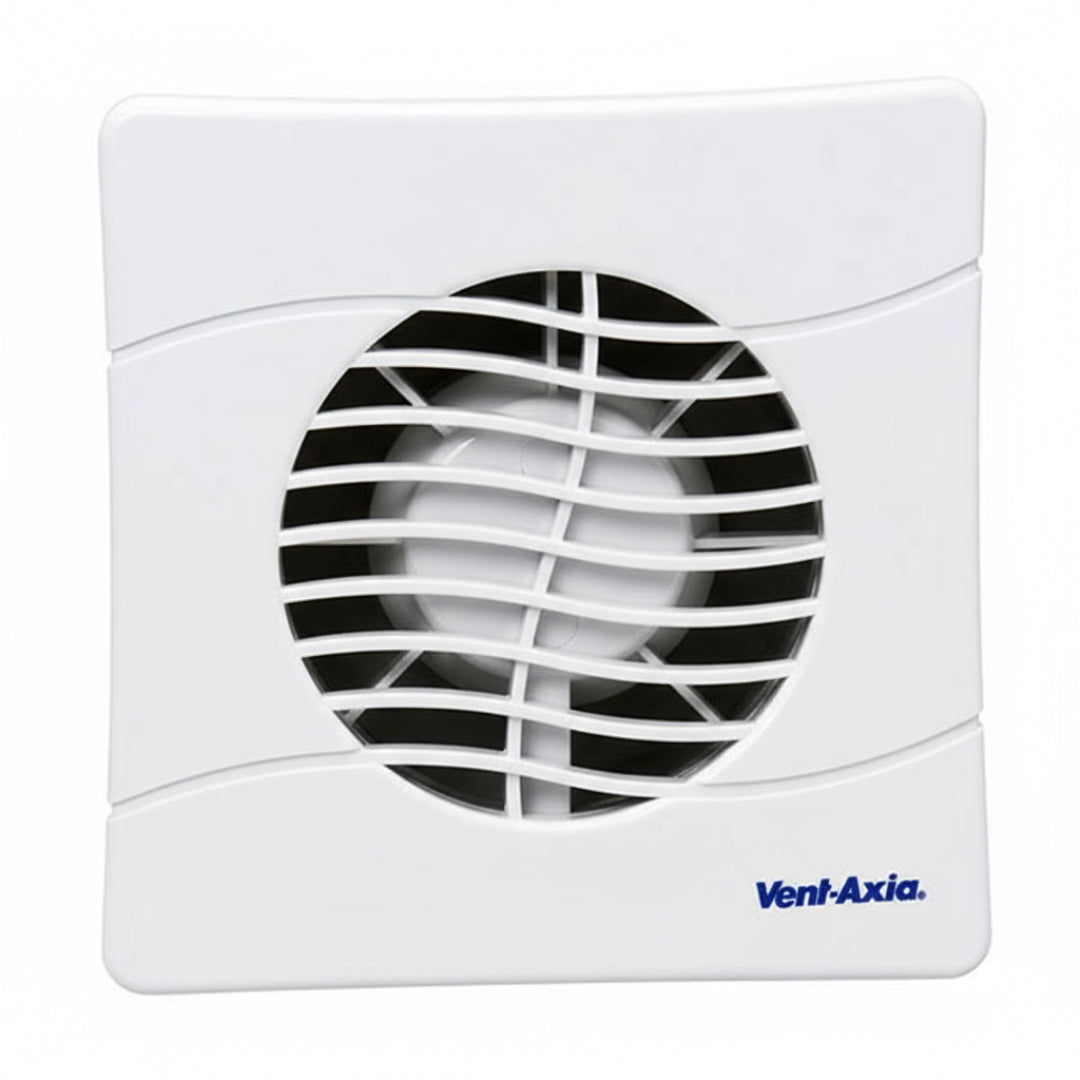

The Slimline Basic range is designed with 100mm and 150mm panel axial fans for bathrooms, cloakrooms and kitchens. With a slim profile of only 15mm these are suitable for wall or panel mounting using the appropriate fixing kit. They have a single speed axial fan with integral backdraught shutter for remote or light switch operation.

Criteria

• Specification:
  • Noise Level: 45 (dB(A))
  • Wattage: 16 W
  • IP Rating: IPX4
  • Height: 218 mm
  • Manufacturer Code: 436533A
  • Barcode: 5015135494650
  • Dimensions: W: 225 mm
• Features:
  • Application: Bathrooms, cloakrooms and kitchens
  • Where to Mount: Panel or Wall
  • Hole Size: 100/150 mm
  • Type of Extractor: Bathroom & toilet fan
  • Number of Speeds: 1 Speed
  • Extractor Application: Bathroom
  • Extraction Rate: 228 (FID, m3/h)
  • Dimensions: Height: 218mm x Width: 225mm x Depth: 55mm
Dimensions
• Manufacturer Code: 436533

Features

• Application: Bathrooms, cloakrooms and kitchens
• Where to Mount: Panel or Wall
• Hole Size: 100/150 mm
• Type of Extractor: Bathroom & toilet fan
• Number of Speeds: 1 Speed
• Extractor Application: Bathroom
• Extraction Rate: 228 (FID, m3/h)
• Dimensions: Height: 218mm x Width: 225mm x Depth: 55mm

Specification

• Noise Level: 45 (dB(A))
• Wattage: 16 W
• IP Rating: IPX4
• Height: 218 mm
• Manufacturer Code: 436533A
• Barcode: 5015135494650
• Dimensions: W: 225 mm

Specification

Applicable Area	Bathroom, Kitchen, Laundry Room, Toilet
Collection Name	BAS100
Duct Size Diameter	155 mm
Extractor Type	Axial
Fan Size Diameter	150 mm
Fan Size Diameter Inches	6 INCH
Fan Speeds	1
Finish Or Colour	White
IP Rating	IPX4
Mounting	Panel, Wall, Window
Voltage	240 v
Depth	232 mm
Height	152 mm
Width	232 mm
