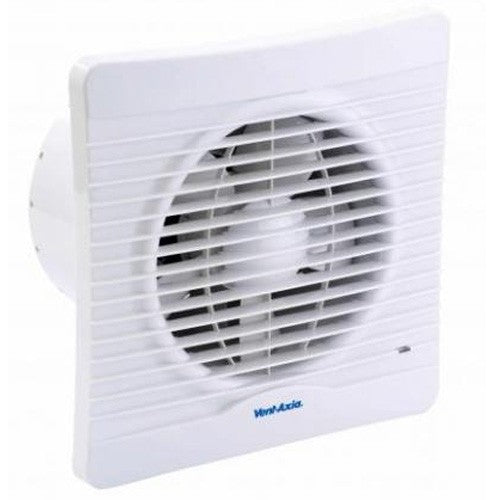

Product Overview

The Silhouette range is designed for modern living. With a profile of only 19mm on the kitchen models, Silhouette blends in with the wall surface to provide an nobtrusive installation.

Mounted in the centre of the fan, beneath the ultra slim profile grille, are the electronics, incorporating a humidistat for detecting a change in internal humidity or an overrun timer option that is adjustable between 5 and 30 mins.Single speed 150mm with integral adjustable auto humidity sensor from 60-90% RH, neon running light and electric backdraught shutter.

Criteria

• Specification:
  • Noise Level: 43 (dB(A) @3m)
  • Wattage: 20 W
  • IP Rating: IPX4
  • Height: 223 mm
  • Manufacturer Code: 454061A
  • Barcode: 5015135494766
  • Dimensions: W: 223 mm
• Features:
  • Touch: Yes
  • Where to Mount: Window
  • Hole Size: 147 mm
  • Type of Extractor: Silhouette
  • Number of Speeds: 1 Speed
  • Extractor Application: Bathroom
  • Humidistat: Yes
  • Extraction Rate: 241 (FID, m3/h)
  • Dimensions: Height: 223mm x Width: 223mm x Depth: 130mm
  • Weight: 1.75 Kg
• Manufacturer Code: 454061A

Features

• Touch: Yes
• Where to Mount: Window
• Hole Size: 147 mm
• Type of Extractor: Silhouette
• Number of Speeds: 1 Speed
• Extractor Application: Bathroom
• Humidistat: Yes
• Extraction Rate: 241 (FID, m3/h)
• Dimensions: Height: 223mm x Width: 223mm x Depth: 130mm
• Weight: 1.75 Kg

Specification

• Noise Level: 43 (dB(A) @3m)
• Wattage: 20 W
• IP Rating: IPX4
• Height: 223 mm
• Manufacturer Code: 454061A
• Barcode: 5015135494766
• Dimensions: W: 223 mm

Specification

Applicable Area	Bathroom, Kitchen, Laundry Room, Toilet
Collection Name	Silhouette
Duct Size Diameter	105 mm
Extractor Type	Axial
Fan Size Diameter	150 mm
Fan Size Diameter Inches	6 INCH
Fan Speeds	1
Finish Or Colour	White
Humidistat	Yes
IP Rating	IPX4
Mounting	Ceiling, Wall
power consumption	15 w
Timer	Yes
Voltage	240 v
Depth	210 mm
Height	150 mm
Width	210 mm
