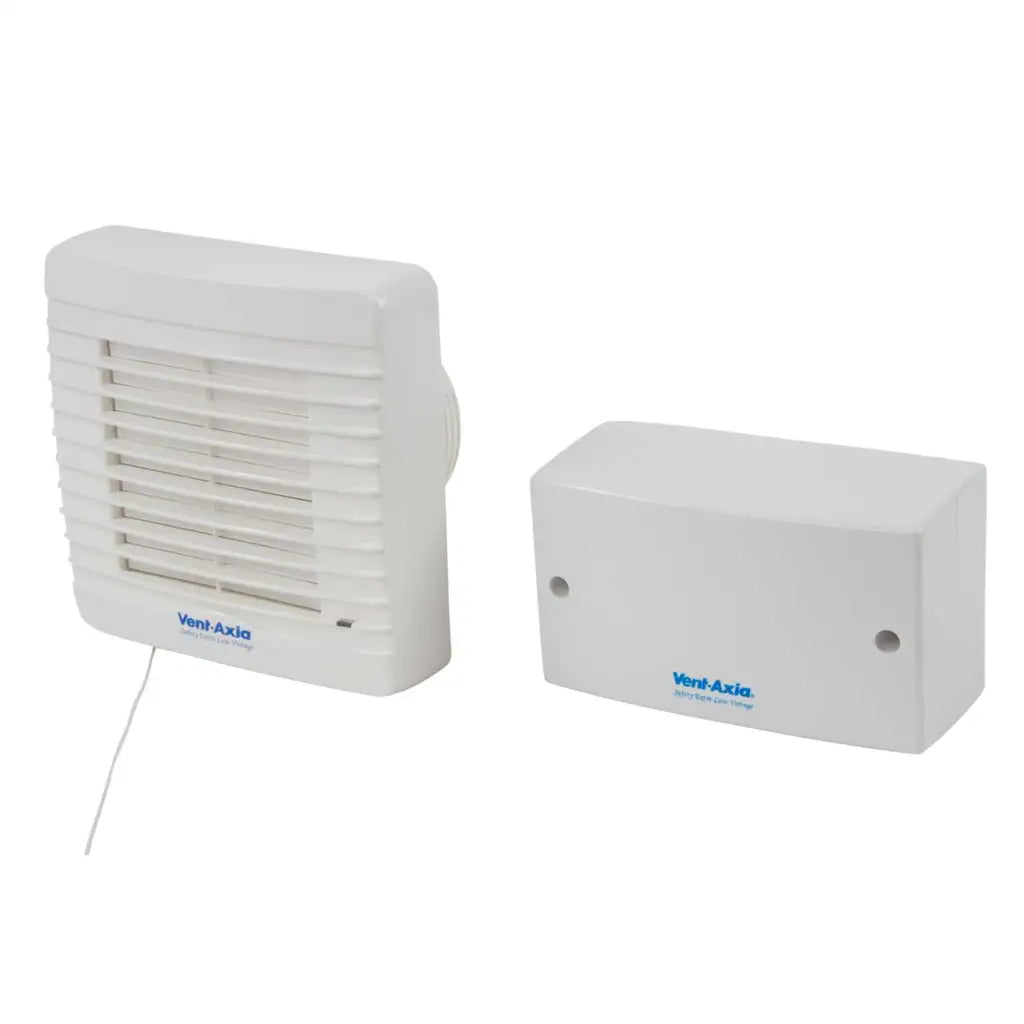

Product Overview

The VA100 range from Vent-Axia is designed for domestic bathrooms and toilets. Available as window, wall or panel mounted models. A range of fans with
options of shutter, timer or humidity controlled versions. The VA100 meets and exceeds the Building Regulation requirements of 15 l/s for domestic bathrooms with integral toilets. Designed in a clean white finish. Suitable for ambient temperatures up to +40°C the unit is fitted with Standard Thermal Overload Protection (S.T.O.P). IPX4 Rated.

Bathroom fan with presettable integral auto humidity control, thermo-electric shutter, neon running light which operates on the manual override only and pullcord

Criteria

• Specification:

  • 90 (FID, m³/h) Extract Performance

  • 32 (dB(A) @3m) Sound Pressure Level

  • 0.55Kg Weight

  • IPX4 IP Rating

  • 21W Electrical Power Rating

  • 25 (FID, I/S) Extract Performance

• Features:
  • New Blue Neon - modern aesthetic design
  • Panel, Window or Wallmounting
  • Robust ABS Chassis prevents distortion on uneven walls
  • Available with electric shutter. Sensors and auto mode
    controllers save energy by switching the ventilation units
    on only when needed and when the room is occupied
  • Adjustable overrun time optionavailable (3-20 mins)
  • Including S.T.O.P
• Guarantee: 2 Years
• Manufacturer Code: 258312

Features

• New Blue Neon - modern aesthetic design
• Panel, Window or Wallmounting
• Robust ABS Chassis prevents distortion on uneven walls
• Available with electric shutter. Sensors and auto mode
  controllers save energy by switching the ventilation units
  on only when needed and when the room is occupied
• Adjustable overrun time optionavailable (3-20 mins)
• Including S.T.O.P

Specification

• 90 (FID, m³/h) Extract Performance

• 32 (dB(A) @3m) Sound Pressure Level

• 0.55Kg Weight

• IPX4 IP Rating

• 21W Electrical Power Rating

• 25 (FID, I/S) Extract Performance

Specification

Applicable Area	Bathroom, Toilet
Duct Size Diameter	105 mm
Extractor Type	Axial
Fan Size Diameter	100 mm
Fan Size Diameter Inches	4 INCH
Fan Speeds	1
Finish Or Colour	White
Humidistat	Yes
IP Rating	IPX7
Mounting	Ceiling, Panel, Wall, Window
Pull Cord	Yes
Voltage	240 v
Depth	170 mm
Height	242 mm
Width	170 mm
