Product Overview

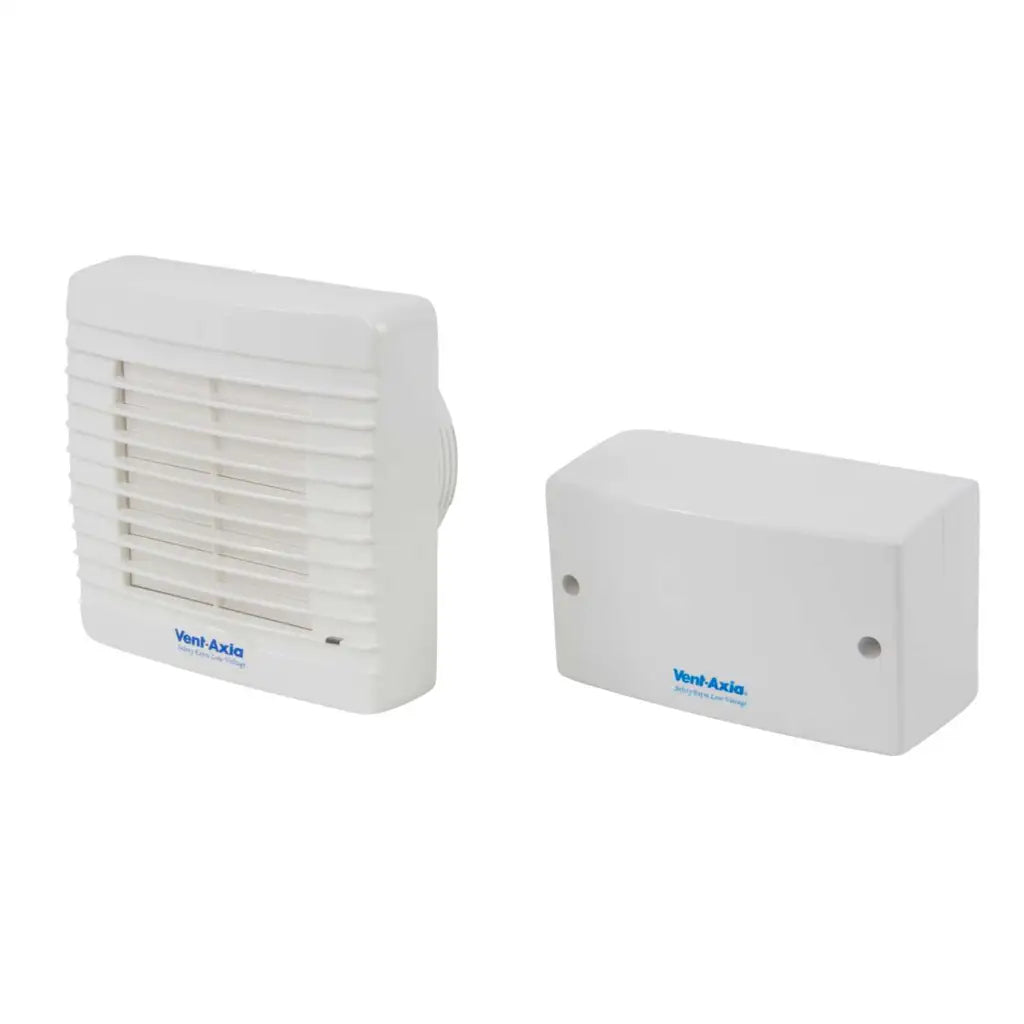

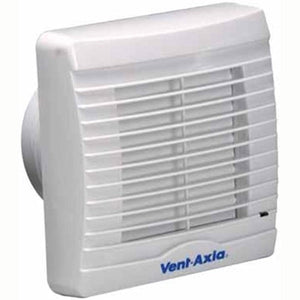

The Vent-Axia 100mm 4" VA100SVXHT SELV Shutter, Humidity & Timer Axial Extractor Fan (258512) is designed for safe installation in bathrooms and toilets, complying with IEE wiring regulations. This advanced fan features a humidistat and timer, activating ventilation when humidity rises or at set times. With a sleek white finish, it meets continuous ventilation needs while working at a maximum temperature of +40°C. Rated IPX7, the fan can be securely mounted over or within spray zones of baths or showers, with added safety from a remote wall-mounted transformer with SELV output. The VA100SVXHT meets current Building Regulation requirements of 15 l/s for bathrooms and WCs, making it a reliable choice for effective humidity control and improved air quality.

Downloads

Download VA100 SELV Instruction Manual

Specification

Applicable Area	Bathroom, Toilet
Extraction Rate Litres Second	23L/s
Extractor Type	Axial
Fan Size Diameter	4in
Finish Or Colour	White
Humidistat	Yes
IP Rating	IPX7
Mounting	Ceiling, Panel, Wall
MPN	258512
Noise Level Maximum	36dB
Number Of Speeds	1
Old GTIN	5015135350918
power consumption	20W
Pull Cord	No
Timer	Yes
Voltage	240V
Depth	47mm
Height	146mm
Width	146mm
