Product Overview

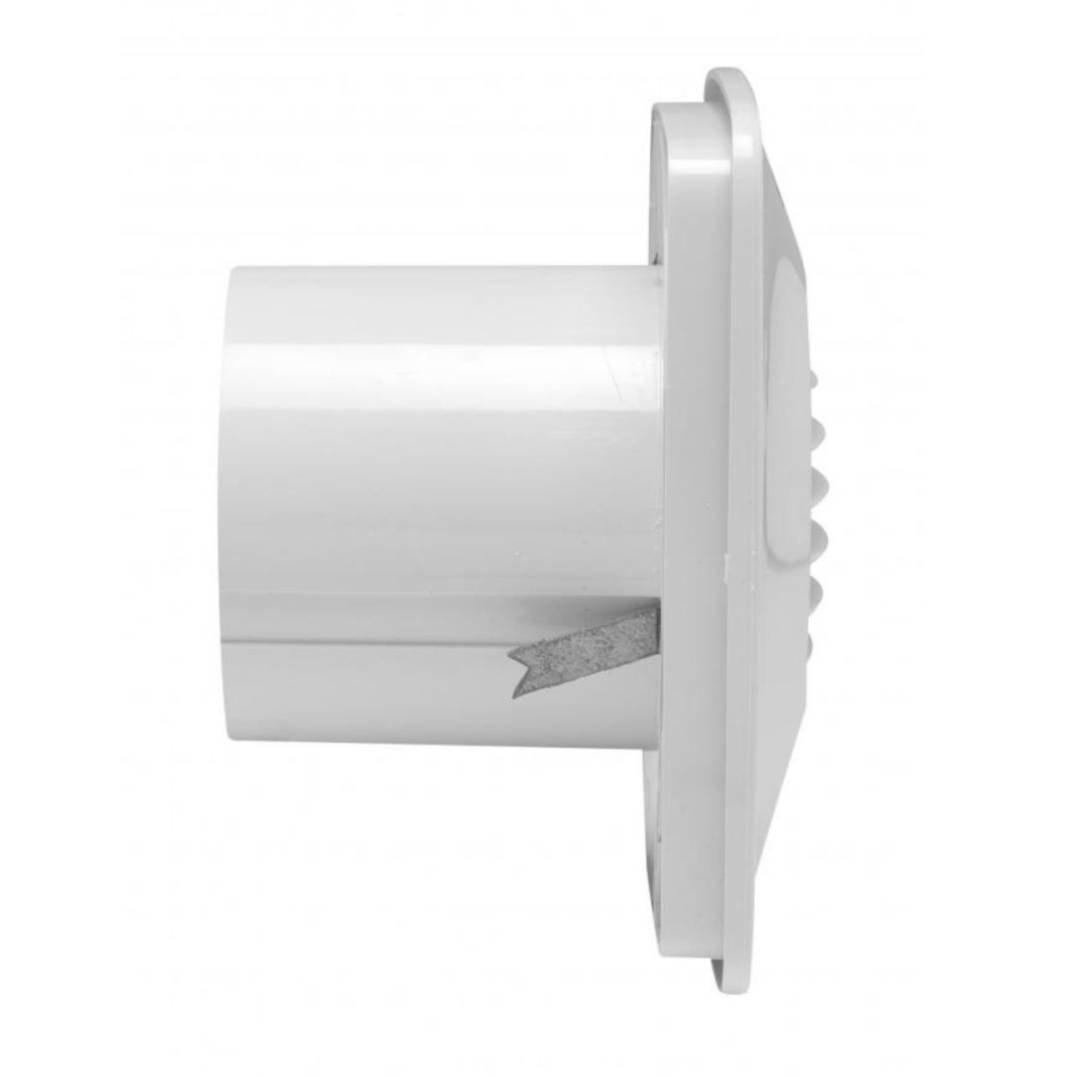

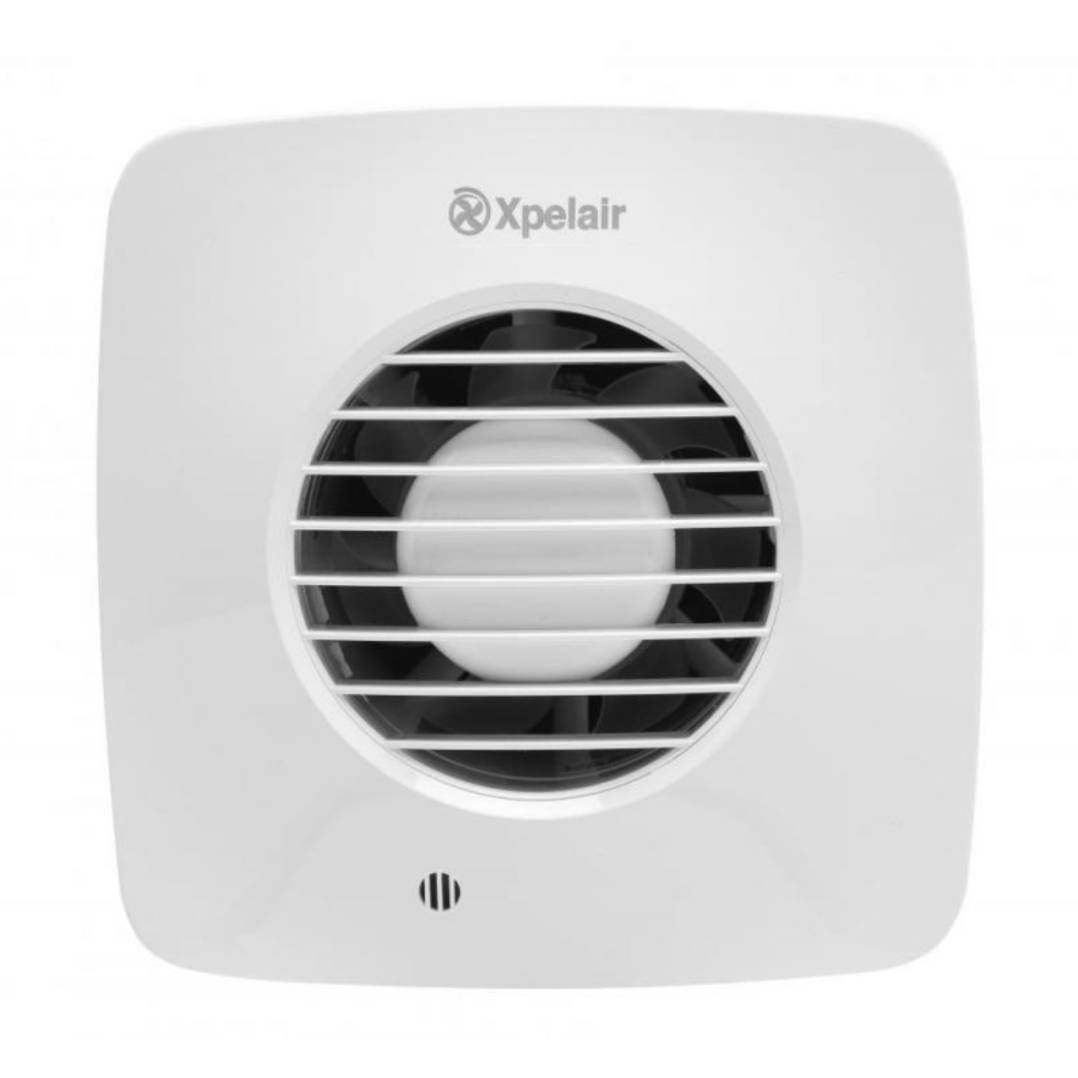

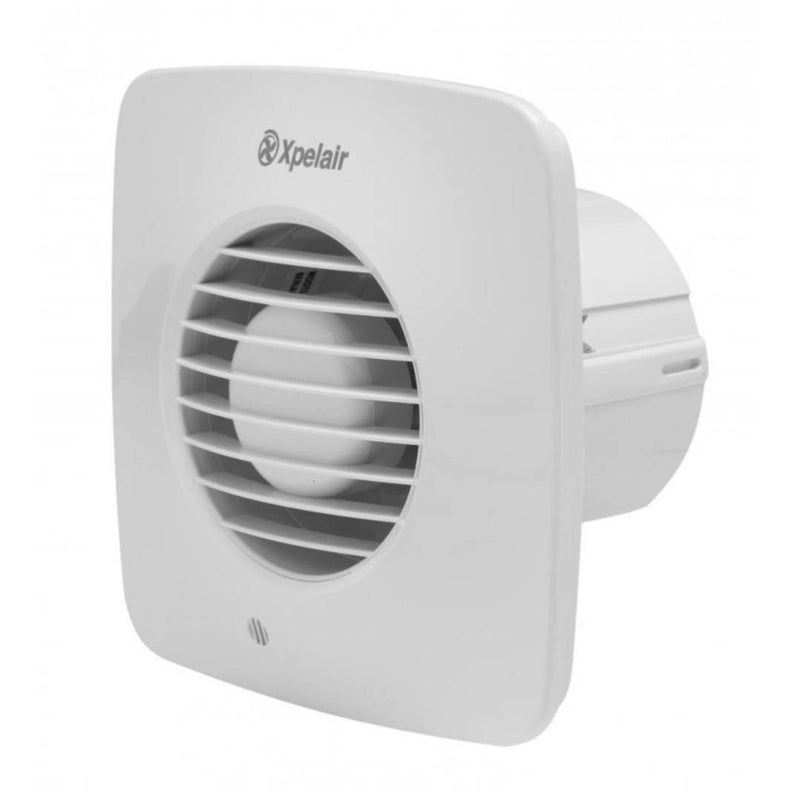

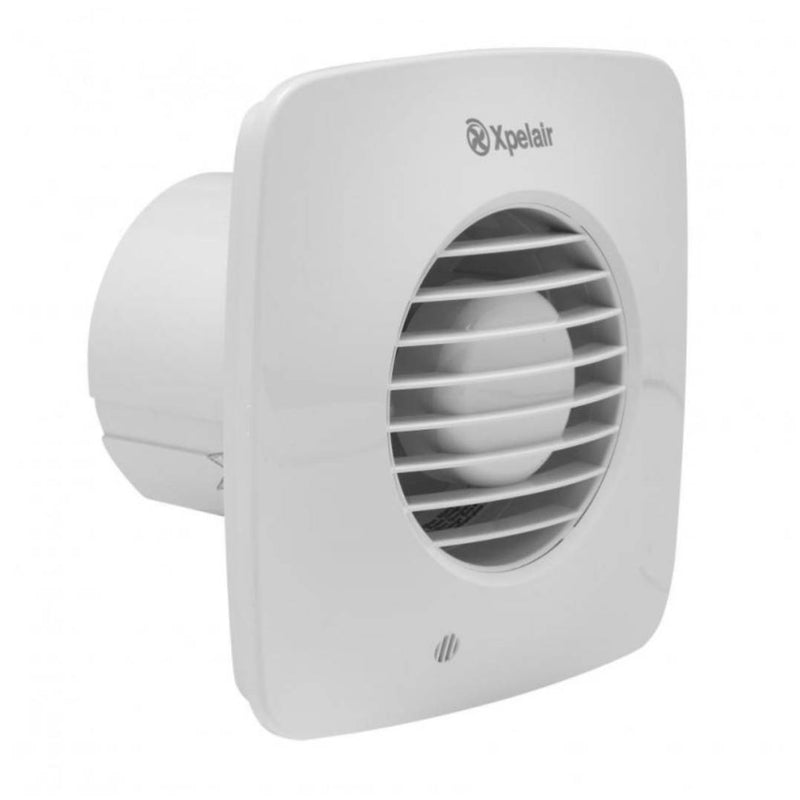

Xpelair DX100PIRS 4"/100mm Square PIR Control Extractor Fan with Wall Kit - 93030AW

DX100PIRS 4" 100mm extractor fan with integral PIR proximity sensor to activate the fan when movement is detected in the room.

A comprehensive range of stylish, compact, and easy-to-install 100mm (4") single-speed extractor fans. Suitable for a wide range of applications including bathrooms, shower rooms, and toilets, including zones 1 and 2.

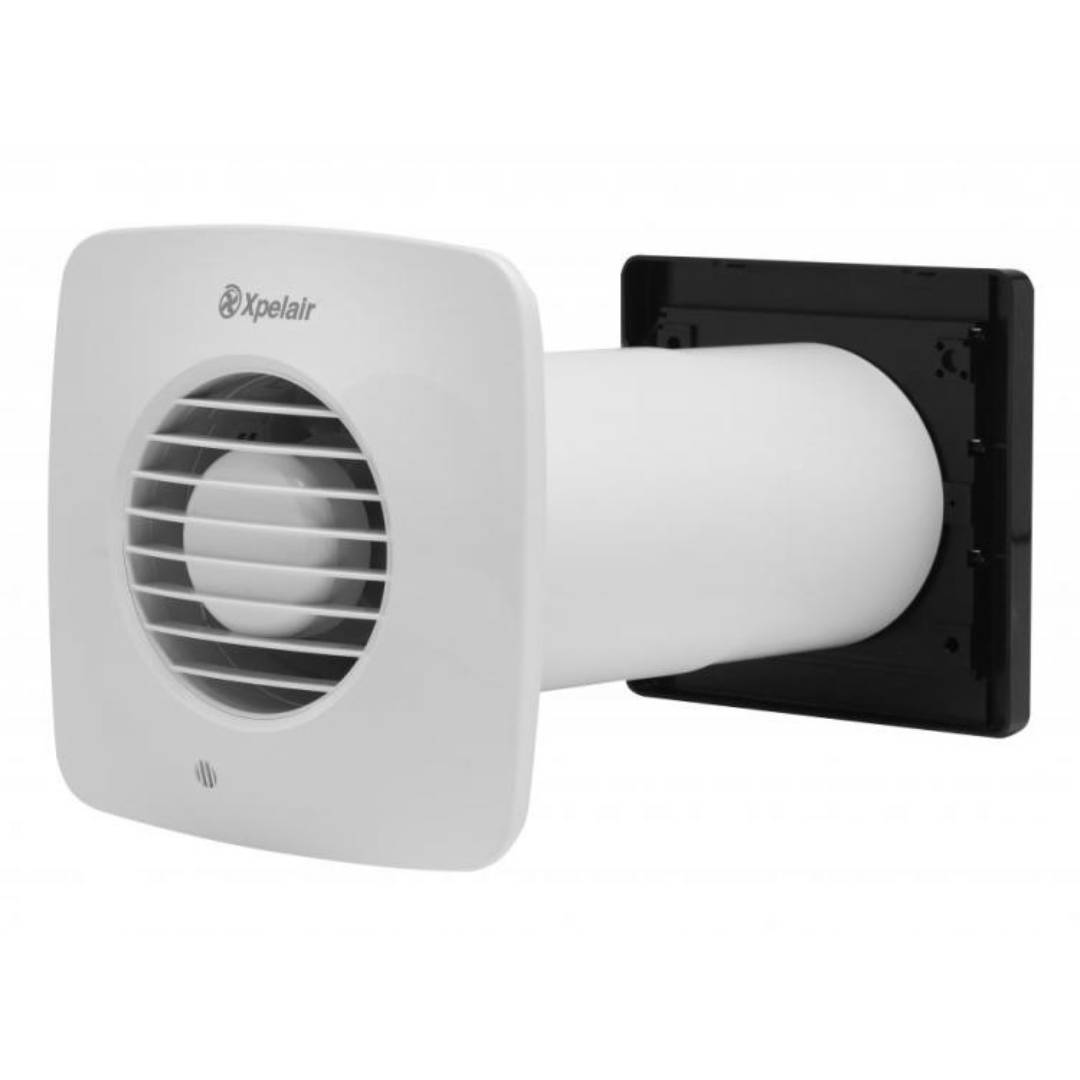

All DX100 extractor fans (except the CP clamp-packed model) come complete with a universal mounting kit comprising of a wall tube, gasket x2, outer grille, and skirt moulding for window mounting in single glazing up to 6mm. Also suitable for wall or ceiling mounting. DX100 models also include an air-operated backdraught shutter, outer grille, and ducting.

Key Features

• Single-speed 100mm (4") axial extract fans
• Maximum fan performance 21 l/s
• Lubricated for life motors with thermal cut-out protection
• Clip-off front cover for ease of cleaning
• Fan Flow Rate: 76m³/h
• No. of Output Settings: 1
• Sound pressure level: 35 db(A)@3m
• Specific Fan Power: 0.57W/l/s
• Power Rating: 12W
• Operation Speeds: 1
• IPX Rating: 5
• Universal Mounting Kit: Yes
• Hole Diameter: 98mm
• Total Depth: 122.2mm
• External Height: 178.5mm
• External Width: 178.5
• Box Contents: Fan/Installation guide/Wall tube/Fixing kit/Grille/Screw pack

Downloads

Download Xpelair Simply Silent DX Product Datasheet
