Heat Mat 1083W, 10.8m Underfloor Heat Mat 5.4m² - 200W/sqm - PKM-200-0540, Image of 1
Heat Mat 1083W, 10.8m Underfloor Heat Mat 5.4m² - 200W/sqm - PKM-200-0540

Quick Find Code: PKM-200-0540

Lifetime Warranty
Free Next Day Delivery!*
  • Award winning system designed for professional installation
  • Lifetime Warranty, BEAB approved, 18th Edition compliant and made in Denmark
  • 200W/sqm output provides a speedy warm up time even in badly insulated rooms
  • Cut-and-turn fitting, zero-float mesh and 4m coldtail ensure a speedy installation
  • Mix and match mat sizes for the perfect coverage; cable can be stripped from mesh for awkward areas

Heat Mat 1083W, 10.8m Underfloor Heat Mat 5.4m² - 200W/sqm - PKM-200-0540

Quick Find Code: PKM-200-0540

Lifetime Warranty
Free Next Day Delivery!*
  • Award winning system designed for professional installation
  • Lifetime Warranty, BEAB approved, 18th Edition compliant and made in Denmark
  • 200W/sqm output provides a speedy warm up time even in badly insulated rooms
  • Cut-and-turn fitting, zero-float mesh and 4m coldtail ensure a speedy installation
  • Mix and match mat sizes for the perfect coverage; cable can be stripped from mesh for awkward areas

£259.95 (inc. VAT)

Show ex. VAT

SOLD OUT

Heat Mat
  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Iwoca pay

Notify Me When Available

Please add quantity to a product to add it to cart

Product

Status

Price

Qty

Heat Mat 1083W, 10.8m Underfloor Heat Mat 5.4m² - 200W/sqm - PKM-200-0540

Sold Out

£259.95

(inc. VAT)

Attribute Value

Heat Mat 1196W, 12m Underfloor Heat Mat 6.0m² - 200W/sqm - PKM-200-0600

Sold Out

£297.50

(inc. VAT)

Attribute Value

Heat Mat 1353W, 13.4m Underfloor Heat Mat 6.7m² - 200W/sqm - PKM-200-0670

Sold Out

£326.50

(inc. VAT)

Attribute Value

Heat Mat 1504W, 15m Underfloor Heat Mat 7.5m² - 200W/sqm - PKM-200-0750

Sold Out

£359.95

(inc. VAT)

Attribute Value

Heat Mat 1769W, 17.8m Underfloor Heat Mat 8.9m² - 200W/sqm - PKM-200-0890

Sold Out

£426.95

(inc. VAT)

Attribute Value

Heat Mat 1973W, 19.8m Underfloor Heat Mat 9.9m² - 200W/sqm - PKM-200-0990

Sold Out

£487.50

(inc. VAT)

Attribute Value

Heat Mat 2620W, 26.4m Underfloor Heat Mat 13.2m² - 200W/sqm - PKM-200-1320

Sold Out

£630.95

(inc. VAT)

Attribute Value

Heat Mat 130W, 1.2m Underfloor Heat Mat 0.6m - 200W/sqm - PKM-200-0060

Sold Out

£36.18

(inc. VAT)

Attribute Value

Heat Mat 208W, 2m Underfloor Heat Mat 1.0m - 200W/sqm - PKM-200-0100

Sold Out

£56.34

(inc. VAT)

Attribute Value

Heat Mat 310W, 3.2m Underfloor Heat Mat 1.6m - 200W/sqm - PKM-200-0160

Sold Out

£73.44

(inc. VAT)

Attribute Value

Heat Mat 405W, 4m Underfloor Heat Mat 2.0m - 200W/sqm - PKM-200-0200

Sold Out

£89.07

(inc. VAT)

Attribute Value

Heat Mat 512W, 5.2m Underfloor Heat Mat 2.6m² - 200W/sqm - PKM-200-0260

Sold Out

£137.95

(inc. VAT)

Attribute Value

Heat Mat 576W, 5.6m Underfloor Heat Mat 2.8m² - 200W/sqm - PKM-200-0280

Sold Out

£148.95

(inc. VAT)

Attribute Value

Heat Mat 719W, 7m Underfloor Heat Mat 3.5m² - 200W/sqm - PKM-200-0350

Sold Out

£184.50

(inc. VAT)

Attribute Value

Heat Mat 854W, 8.4m Underfloor Heat Mat 4.2m² - 200W/sqm - PKM-200-0420

Sold Out

£214.50

(inc. VAT)

Attribute Value

Add To Cart

Product Overview

Heat Mat 1083W, 10.8m Underfloor Heat Mat 5.4m² - 200W/sqm - PKM-200-0540

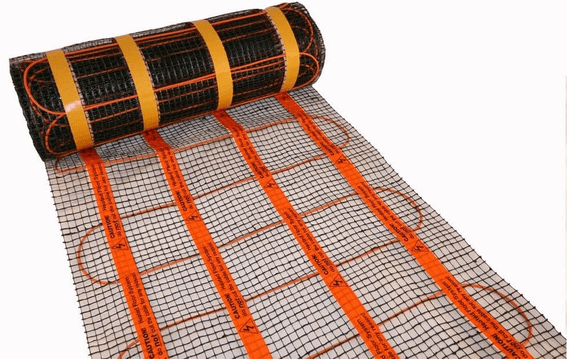

200W/sqm Pro Range heating mat with fixing tapes and zero-float low-shed fibreglass mesh for heating beneath tile, porcelain and stone floors. Installation is simple with the cut-and-turn mesh and the mat is suitable for primary and secondary heating in even badly insulated rooms. Supplied with a 4m coldtail and robust 100% earth shielded heating cable and coldtail to comply with the 18th Edition, and covered by Heat Mat's Lifetime Warranty.

Specification

Applicable AreaHome
Bathroom Zones0
Cable Diameter3 mm
Cold Tail Length4 m
Collection NamePro Range
Current Amps4.7 A
Directive ComplianceBEAB
Domestic or CommercialDomestic
Earthing TypeAluminium Earth Shield
Equivalent Wattage1083 W
Finish Or ColourBlack
Floor Area Coverage Max5.4 m²
Floor CoveringTypeTiles, Porcelain, Stone, Marble
InsulatedYes
IP RatingIPX7
Lot20 CompliantYes
Luckins Code389519209
Mat Thickness3 mm
power consumption1083 W
Voltage230 V
Height3 mm
Length10800 mm
Weight2.62 kg
Width500 mm

We always aim to dispatch your order for delivery on the next working day. Simply place your order before the same-day dispatch cut-off time. The countdown timer on the product page shows this cut-off time. While we work with trusted couriers, delivery times cannot be guaranteed.

Free UK Delivery on All Qualifying Orders Over £50. Orders under £50 will incur a £5.90 Delivery Fee.

This Excludes Delivery to the Scottish Highlands, Offshore Islands and Northern Ireland. These will be charged at an extra rate, which will be calculated at the checkout.

Heavier Items may also incur an extra fee.

Compare the range

PKM-200-0540
£259.95
Bathroom zones
0
Cable diameter
3 mm
Cold tail length
4 m
Collection name
Pro Range
Current amps
4.7 A
Directive compliance
BEAB
Earthing type
Aluminium Earth Shield
Equivalent wattage
1083 W
Finish or colour
Black
Floor area coverage max
5.4 m²
Floor coveringtype
Tiles,Porcelain,Stone,Marble
Insulated
Ip rating
IPX7
Lot20 compliant
Luckins code
389519209
Mat thickness
3 mm
Power consumption
1083 W
Voltage
230 V
PKM-200-0600
£297.50
0
3 mm
4 m
Pro Range
5.2 A
BEAB
Aluminium Earth Shield
1196 W
Black
6 m²
Tiles,Porcelain,Stone,Marble
IPX7
389519212
3 mm
1196 W
230 V
PKM-200-0670
£326.50
0
3 mm
4 m
Pro Range
5.9 A
BEAB
Aluminium Earth Shield
1353 W
Black
6.7 m²
Tiles,Porcelain,Stone,Marble
IPX7
389519267
3 mm
1353 W
230 V
PKM-200-0750
£359.95
0
3 mm
4 m
Pro Range
6.5 A
BEAB
Aluminium Earth Shield
1504 W
Black
7.5 m²
Tiles,Porcelain,Stone,Marble
IPX7
389519306
3 mm
1504 W
230 V
PKM-200-0890
£426.95
0
3 mm
4 m
Pro Range
7.7 A
BEAB
Aluminium Earth Shield
1769 W
Black
8.9 m²
Tiles,Porcelain,Stone,Marble
IPX7
389519319
3 mm
1769 W
230 V
PKM-200-0990
£487.50
0
3 mm
4 m
Pro Range
8.6 A
BEAB
Aluminium Earth Shield
1973 W
Black
9.9 m²
Tiles,Porcelain,Stone,Marble
IPX7
389519322
3 mm
1973 W
230 V
PKM-200-1320
£630.95
0
3 mm
4 m
Pro Range
11.4 A
BEAB
Aluminium Earth Shield
2620 W
Black
13.2 m²
Tiles,Porcelain,Stone,Marble
IPX7
404588717
3 mm
2620 W
230 V
PKM-200-0060
£36.18
0
3 mm
4 m
Pro Range
0.6 A
BEAB
Aluminium Earth Shield
130 W
Black
0.6 m²
Tiles,Porcelain,Stone,Marble
IPX7
390631202
3 mm
130 W
230 V
PKM-200-0100
£56.34
0
3 mm
4 m
Pro Range
0.9 A
BEAB
Aluminium Earth Shield
208 W
Black
1 m²
Tiles,Porcelain,Stone,Marble
IPX7
389519047
3 mm
208 W
230 V
PKM-200-0160
£73.44
0
3 mm
4 m
Pro Range
1.4 A
BEAB
Aluminium Earth Shield
310 W
Black
1.6 m²
Tiles,Porcelain,Stone,Marble
IPX7
389519076
3 mm
310 W
230 V
PKM-200-0200
£89.07
0
3 mm
4 m
Pro Range
1.8 A
BEAB
Aluminium Earth Shield
405 W
Black
2 m²
Tiles,Porcelain,Stone,Marble
IPX7
389519089
3 mm
405 W
230 V
PKM-200-0260
£137.95
0
3 mm
4 m
Pro Range
2.2 A
BEAB
Aluminium Earth Shield
512 W
Black
2.6 m²
Tiles,Porcelain,Stone,Marble
IPX7
389519144
3 mm
512 W
230 V
PKM-200-0280
£148.95
0
3 mm
4 m
Pro Range
2.5 A
BEAB
Aluminium Earth Shield
576 W
Black
2.8 m²
Tiles,Porcelain,Stone,Marble
IPX7
389519160
3 mm
576 W
230 V
PKM-200-0350
£184.50
0
3 mm
4 m
Pro Range
3.1 A
BEAB
Aluminium Earth Shield
719 W
Black
3.5 m²
Tiles,Porcelain,Stone,Marble
IPX7
389519173
3 mm
719 W
230 V
PKM-200-0420
£214.50
0
3 mm
4 m
Pro Range
3.7 A
BEAB
Aluminium Earth Shield
854 W
Black
4.2 m²
Tiles,Porcelain,Stone,Marble
IPX7
389519199
3 mm
854 W
230 V
