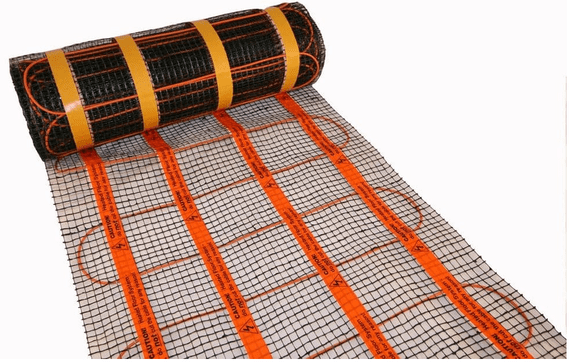

Heat Mat 1090W, 20.4m Underfloor Heat Mat 10.2m² - 110W/sqm - PKM-110-1020, Image of 1
Heat Mat 1090W, 20.4m Underfloor Heat Mat 10.2m² - 110W/sqm - PKM-110-1020

Quick Find Code: PKM-110-1020

Lifetime Warranty
Free Next Day Delivery!*
  • Award winning system designed for professional installation
  • Lifetime Warranty, BEAB approved, 18th Edition compliant and made in Denmark
  • 110W/sqm output is perfect for well insulated rooms and to lower power requirements
  • Cut-and-turn fitting and zero-float mesh ensure a speedy installation
  • Mix and match mat sizes for the perfect coverage; cable can be stripped from mesh for awkward areas

Heat Mat 1090W, 20.4m Underfloor Heat Mat 10.2m² - 110W/sqm - PKM-110-1020

Quick Find Code: PKM-110-1020

Lifetime Warranty
Free Next Day Delivery!*
  • Award winning system designed for professional installation
  • Lifetime Warranty, BEAB approved, 18th Edition compliant and made in Denmark
  • 110W/sqm output is perfect for well insulated rooms and to lower power requirements
  • Cut-and-turn fitting and zero-float mesh ensure a speedy installation
  • Mix and match mat sizes for the perfect coverage; cable can be stripped from mesh for awkward areas

£312.95 (inc. VAT)

Show ex. VAT

Heat Mat
  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Iwoca pay

Notify Me When Available

Please add quantity to a product to add it to cart

Product

Status

Price

Qty

Heat Mat 1090W, 20.4m Underfloor Heat Mat 10.2m² - 110W/sqm - PKM-110-1020

Sold Out

£312.95

(inc. VAT)

Attribute Value

Heat Mat 1250W, 23m Underfloor Heat Mat 11.5m² - 110W/sqm - PKM-110-1150

Sold Out

£319.95

(inc. VAT)

Attribute Value

Heat Mat 110W, 2.2m Underfloor Heat Mat 1.1m² - 110W/sqm - PKM-110-0110

Sold Out

£45.50

(inc. VAT)

Attribute Value

Heat Mat 150W, 2.8m Underfloor Heat Mat 1.4m² - 110W/sqm - PKM-110-0140

Sold Out

£65.50

(inc. VAT)

Attribute Value

Heat Mat 220W, 4m Underfloor Heat Mat 2.0m² - 110W/sqm - PKM-110-0200

Sold Out

£76.95

(inc. VAT)

Attribute Value

Heat Mat 320W, 6m Underfloor Heat Mat 3.0m² - 110W/sqm - PKM-110-0300

Sold Out

£109.95

(inc. VAT)

Attribute Value

Heat Mat 450W, 8.2m Underfloor Heat Mat 4.1m² - 110W/sqm - PKM-110-0410

Sold Out

£145.50

(inc. VAT)

Attribute Value

Heat Mat 540W, 9.8m Underfloor Heat Mat 4.9m² - 110W/sqm - PKM-110-0490

Sold Out

£171.50

(inc. VAT)

Attribute Value

Heat Mat 660W, 11.6m Underfloor Heat Mat 5.8m² - 110W/sqm - PKM-110-0580

Sold Out

£179.95

(inc. VAT)

Attribute Value

Heat Mat 770W, 14m Underfloor Heat Mat 7.0m² - 110W/sqm - PKM-110-0700

Sold Out

£218.95

(inc. VAT)

Attribute Value

Heat Mat 930W, 16.6m Underfloor Heat Mat 8.3m² - 110W/sqm - PKM-110-0830

Sold Out

£259.95

(inc. VAT)

Attribute Value

Heat Mat 1020W, 18m Underfloor Heat Mat 9.0m² - 110W/sqm - PKM-110-0900

Sold Out

£276.50

(inc. VAT)

Attribute Value

Add To Cart

Product Overview

Heat Mat 1090W, 20.4m Underfloor Heat Mat 10.2m² - 110W/sqm - PKM-110-1020
110W/sqm Pro Range heating mat with fixing tapes and zero-float low-shed fibreglass mesh for heating beneath nearly any floor covering. Installation is simple with the cut-and-turn mesh and the mat is suitable for primary and secondary heating in well insulated rooms. Supplied with a 4m coldtail and robust 100% earth shielded heating cable and coldtail to comply with the 18th Edition, and covered by Heat Mat's Lifetime Warranty.

Specification

Applicable AreaHome
Bathroom Zones0
Cable Diameter3 mm
Cold Tail Length4 m
Collection NamePro Range
Current Amps4.7 A
Directive ComplianceBEAB
Domestic or CommercialDomestic
Equivalent Wattage1090 W
Finish Or ColourBlack
InsulatedYes
IP RatingIPX7
Lot20 CompliantYes
Luckins Code398821399
Mat Thickness3 mm
power consumption1090 W
Voltage230 V
Earthing TypeAluminium Earth Shield
Floor Area Coverage Max10.2 m²
Floor CoveringTypeTiles, Porcelain, Stone, Marble
Height3 mm
Length20400 mm
Weight4.21 kg
Width500 mm

We always aim to dispatch your order for delivery on the next working day. Simply place your order before the same-day dispatch cut-off time. The countdown timer on the product page shows this cut-off time. While we work with trusted couriers, delivery times cannot be guaranteed.

Free UK Delivery on All Qualifying Orders Over £50. Orders under £50 will incur a £5.90 Delivery Fee.

This Excludes Delivery to the Scottish Highlands, Offshore Islands and Northern Ireland. These will be charged at an extra rate, which will be calculated at the checkout.

Heavier Items may also incur an extra fee.

Compare the range

PKM-110-1020
£312.95
Applicable area
Home
Bathroom zones
0
Cable diameter
3 mm
Cold tail length
4 m
Collection name
Pro Range
Current amps
4.7 A
Directive compliance
BEAB
Domestic or commercial
Domestic
Equivalent wattage
1090 W
Finish or colour
Black
Insulated
Ip rating
IPX7
Lot20 compliant
Luckins code
398821399
Mat thickness
3 mm
Power consumption
1090 W
Voltage
230 V
Earthing type
Aluminium Earth Shield
Floor area coverage max
10.2 m²
Floor coveringtype
Tiles,Porcelain,Stone,Marble
PKM-110-1150
£319.95
Home
0
3 mm
4 m
Pro Range
5.4 A
BEAB
Domestic
1250 W
Black
IPX7
398821412
3 mm
1250 W
230 V
Aluminium Earth Shield
11.5 m²
Tiles,Porcelain,Stone,Marble
PKM-110-0110
£45.50
Home
0
3 mm
4 m
Pro Range
0.5 A
BEAB
Domestic
120 W
Black
IPX7
398821218
3 mm
120 W
230 V
Aluminium Earth Shield
1.1 m²
Tiles,Porcelain,Stone,Marble
PKM-110-0140
£65.50
Home
0
3 mm
4 m
Pro Range
0.7 A
BEAB
Domestic
150 W
Black
IPX7
398821221
3 mm
150 W
230 V
Aluminium Earth Shield
1.4 m²
Tiles,Porcelain,Stone,Marble
PKM-110-0200
£76.95
Home
0
3 mm
4 m
Pro Range
1 A
BEAB
Domestic
220 W
Black
IPX7
398821247
3 mm
220 W
230 V
Aluminium Earth Shield
2 m²
Tiles,Porcelain,Stone,Marble
PKM-110-0300
£109.95
Home
0
3 mm
4 m
Pro Range
1.4 A
BEAB
Domestic
320 W
Black
IPX7
398821263
3 mm
320 W
230 V
Aluminium Earth Shield
3 m²
Tiles,Porcelain,Stone,Marble
PKM-110-0410
£145.50
Home
0
3 mm
4 m
Pro Range
2 A
BEAB
Domestic
450 W
Black
IPX7
398821276
3 mm
450 W
230 V
Aluminium Earth Shield
4.1 m²
Tiles,Porcelain,Stone,Marble
PKM-110-0490
£171.50
Home
0
3 mm
4 m
Pro Range
2.4 A
BEAB
Domestic
540 W
Black
IPX7
398821292
3 mm
540 W
230 V
Aluminium Earth Shield
4.9 m²
Tiles,Porcelain,Stone,Marble
PKM-110-0580
£179.95
Home
0
3 mm
4 m
Pro Range
2.9 A
BEAB
Domestic
660 W
Black
IPX7
398821328
3 mm
660 W
230 V
Aluminium Earth Shield
5.8 m²
Tiles,Porcelain,Stone,Marble
PKM-110-0700
£218.95
Home
0
3 mm
4 m
Pro Range
3.4 A
BEAB
Domestic
770 W
Black
IPX7
398821344
3 mm
770 W
230 V
Aluminium Earth Shield
7 m²
Tiles,Porcelain,Stone,Marble
PKM-110-0830
£259.95
Home
0
3 mm
4 m
Pro Range
4 A
BEAB
Domestic
930 W
Black
IPX7
398821360
3 mm
930 W
230 V
Aluminium Earth Shield
8.3 m²
Tiles,Porcelain,Stone,Marble
PKM-110-0900
£276.50
Home
0
3 mm
4 m
Pro Range
4.4 A
BEAB
Domestic
1020 W
Black
IPX7
398821386
3 mm
1020 W
230 V
Aluminium Earth Shield
9 m²
Tiles,Porcelain,Stone,Marble
