Product Overview

The CF200 centrifugal fans use the latest technology to provide extremely powerful, yet very quiet and vibration free ventilation. The CF200 ranges are designed for bathrooms, toilets, cloakrooms, utility rooms.

Designed to move air over long distances, these units will give maximum performance even against pressures caused by long lengths of ducting and resistance by grilles.

All models are fitted with a built-in spring operated non-return flap into the discharge spigot to stop backdraughts.

There are seven models in each series. The CF200 has an extract rate of 110m3/hr 31 litres per second.

The units are all manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning.

Power to the CF200 range is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life.

Designed to comply with the Building Regulations on Ventilation (F1).

Features

• As above with pullcord override switch. Requires no switched live
• 100mm / 4" standard rigid or flexible duct
• These fans are double insulated and do not require an earth
• All wiring must comply with current IEE regulations
• A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3amp fuse fitted
• The fan should not be accessible to a person using either the shower or bath and mounted to a minimum of 1.8 metres from the floor

Short Description

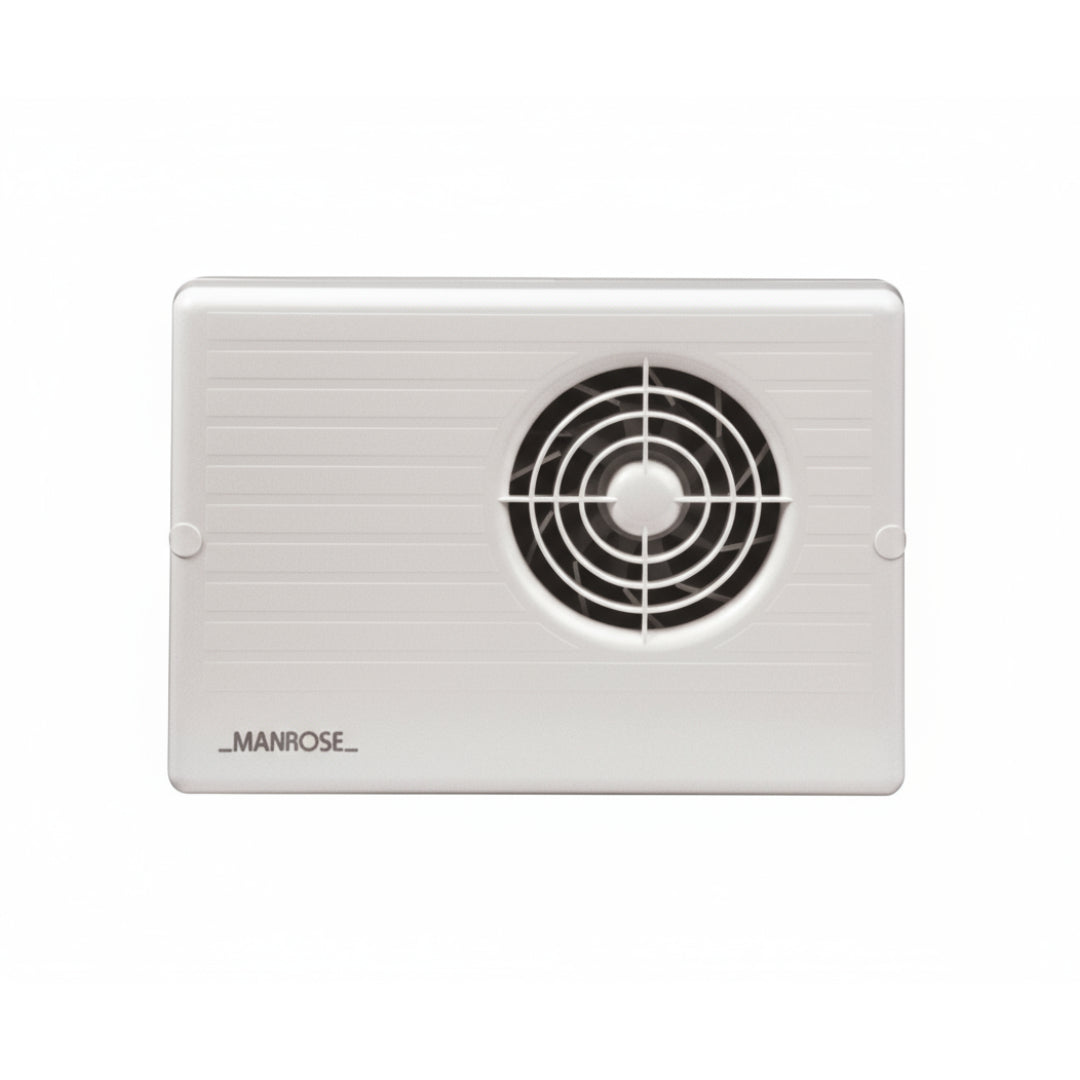

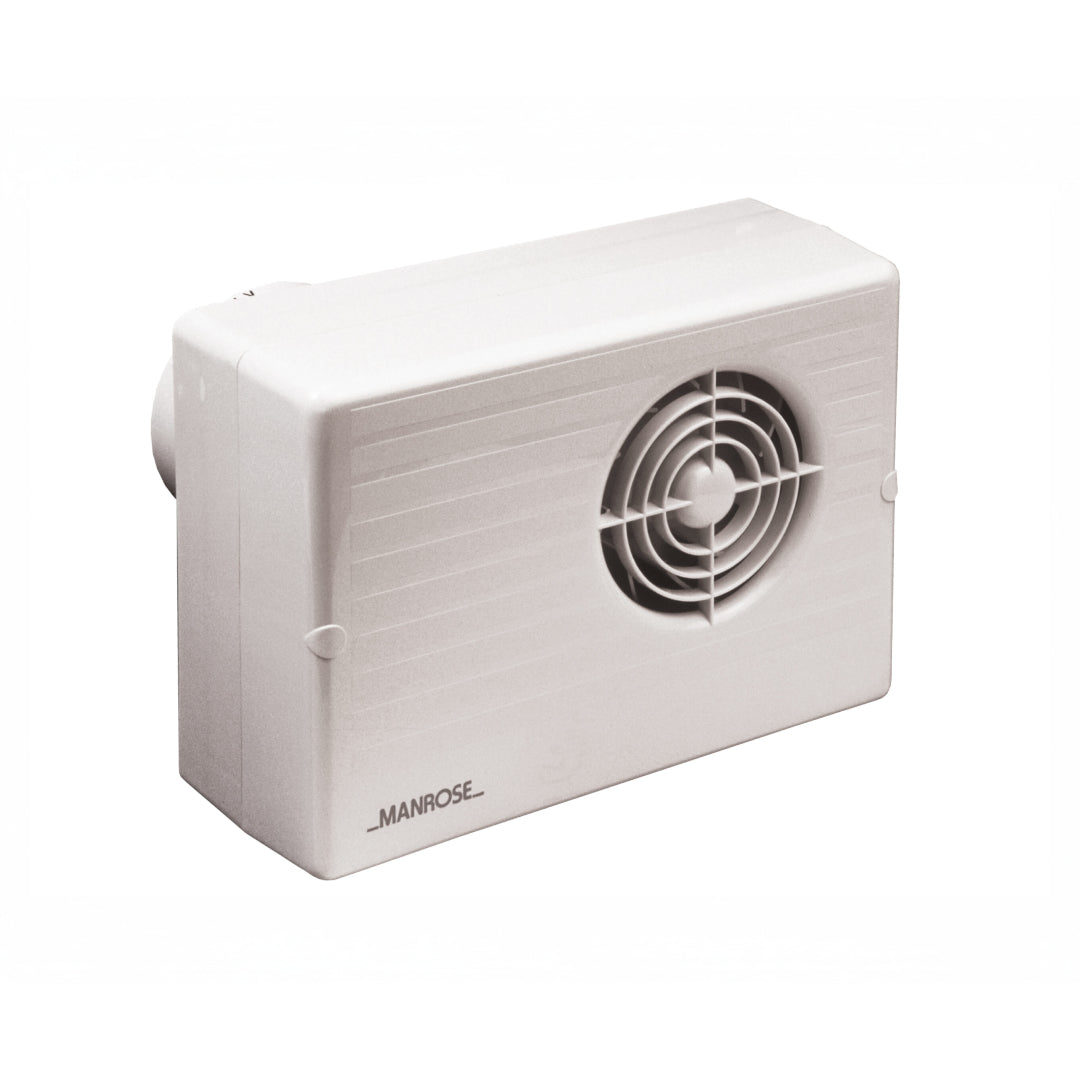

Manrose CF200T 100mm 4" Centrifugal Extractor Fan with Timer & Pullcord

Specification

• Wattage: 17W
• Voltage: 220-240V - AC. 50Hz
• Maximum pressure: 120 p.a.
• Fan speed: 1400 r.p.m.
• Sound volume: 45.0 dB(A)
• 110m3/hr, 31 litres per second
• Diamensions: Height: 185mm x Width: 260mm x Depth: 90mm

Specification

Applicable Area	Bathroom, Kitchen, Laundry Room, Toilet
Backdraft Shutter	Yes
Extractor Type	Centrifugal
Fan Size Diameter	100 mm
Fan Speeds	1
Finish Or Colour	White
Installation Kit	Yes
IP Rating	IP24
Lip Depth	90 mm
Minimum Voltage	220 v
Mounting	Ceiling, Wall
power consumption	17 w
Pull Cord	Yes
Timer	Yes
Voltage	240 v
Height	185 mm
Weight	1.2 KG
Width	260 mm
