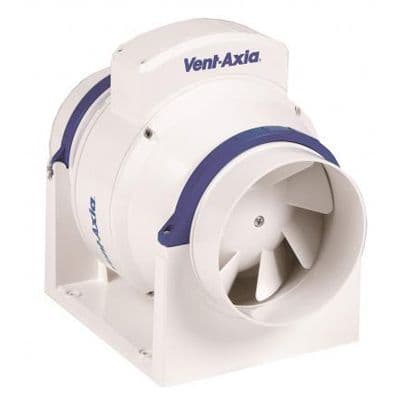

Vent-Axia ACM200T 200mm (8") In-line Mixed Flow Extractor Fan with Timer - 17108020, Image of 1
SALE
Vent-Axia ACM200T 200mm (8") In-line Mixed Flow Extractor Fan with Timer - 17108020

Quick Find Code: 17108020

5 Year Warranty
Free Delivery!*
  • Clean White Finish Cover
  • Matches Svara Smart Vent
  • Seamless Integration
  • High-Quality Material
  • Modern and Sleek Design

Vent-Axia ACM200T 200mm (8") In-line Mixed Flow Extractor Fan with Timer - 17108020

Quick Find Code: 17108020

5 Year Warranty
Free Delivery!*
  • Clean White Finish Cover
  • Matches Svara Smart Vent
  • Seamless Integration
  • High-Quality Material
  • Modern and Sleek Design

£492.75
£344.93 (inc. VAT)

You save: £147.82

Show ex. VAT

Vent Axia
  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Iwoca pay

Please add quantity to a product to add it to cart

Product

Fan
Speeds

IP
Rating

Extraction
Rate Ltr/Sec

Timer

Humidistat

Status

Price

Qty

Vent-Axia ACM200T 200mm (8") In-line Mixed Flow Extractor Fan with Timer - 17108020

Fan
Speeds

IP
Rating

Extraction
Rate Ltr/Sec

Timer

Humidistat

In Stock

£344.93

(inc. VAT)

Attribute Value

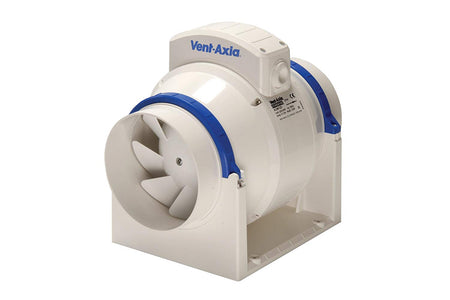

Vent-Axia ACM125 125mm (5") In-line Mixed Flow Extractor Fan - 17105010

Fan
Speeds 3

IP
Rating IPX4

Extraction
Rate Ltr/Sec

Timer

Humidistat

In Stock

£157.45

(inc. VAT)

Attribute Value

Vent-Axia ACM150T 150mm (6") In-line Timer Mixed Flow Extractor Fan - 17106020

Fan
Speeds 3

IP
Rating IP44

Extraction
Rate Ltr/Sec

Timer Yes

Humidistat

In Stock

£225.23

(inc. VAT)

Attribute Value

Vent-Axia ACM200 Mixed Flow 200mm (8") In-line Extractor Fan - 17108010

Fan
Speeds 3

IP
Rating IP44

Extraction
Rate Ltr/Sec 240 L/s

Timer

Humidistat

In Stock

£276.68

(inc. VAT)

Attribute Value

Add To Cart

Product Overview

The Vent‑Axia ACM200T 200mm In‑line Mixed Flow Extractor Fan is a robust and efficient in-line extraction solution designed for 200 mm (8") ducting systems. Manufactured in the UK by Vent‑Axia, it features a mixed-flow impeller which combines axial and centrifugal fan characteristics to deliver higher pressure and airflow compared with conventional axial models.

It comes equipped with a built-in over-run timer (adjustable typically between 2-25 minutes) which allows the fan to continue running after the main switch-off to clear residual moisture or stale air. The motor is selectable for multiple speeds upon installation and is capable of being mounted horizontally or vertically, providing flexibility in tight or complex ductwork layouts.

In terms of performance, the unit offers an extraction rate of approximately 225 l/s (≈810 m³/h) for large domestic or light commercial applications, with a noise level around 41 dB(A) at 3 metres in typical operation. The casing is IP44 rated for protection and has been designed for ease of maintenance—its removable motor core and rotating chassis simplify access and cleaning.

Downloads

Download 17108020-data-sheet

Specification

Applicable AreaHome
Domestic or CommercialDomestic
Finish Or ColourWhite
MaterialABS

We always aim to dispatch your order for delivery on the next working day. Simply place your order before the same-day dispatch cut-off time. The countdown timer on the product page shows this cut-off time. While we work with trusted couriers, delivery times cannot be guaranteed.

Free UK Delivery on All Qualifying Orders Over £50. Orders under £50 will incur a £5.90 Delivery Fee.

This Excludes Delivery to the Scottish Highlands, Offshore Islands and Northern Ireland. These will be charged at an extra rate, which will be calculated at the checkout.

Heavier Items may also incur an extra fee.

Compare the range

17108020
£344.93
Applicable area
Home
Collection name
-
Duct size diameter
-
Extractor type
-
Fan size diameter
-
Finish or colour
White
Ip rating
-
Mounting
-
Mpn
-
Noise level maximum
-
Number of speeds
-
Old gtin
-
Power consumption
-
Voltage
-
Timer
-
Domestic or commercial
Domestic
Extraction rate litres second
-
5_252Fb_252Fd_252Fb_252F5bdb1e7179665a588e22cefd66910da250c45f52_17105010_d3ace83b-707d-4563-9b7f-64907d48c674.jpg
17105010
£157.45
Bathroom,Commercial,Laundry Room,Office,Toilet,Warehouse
ACM
125 mm
Inline
5 in
White
IPX4
Ceiling
17105010
25 dB
3
5015135093976
30 W
240 V
-
-
-
Vent-Axia ACM150T 150mm (6") In-line Timer Mixed Flow Extractor Fan - 17106020
17106020
£225.23
Bathroom,Commercial,Laundry Room,Office,Toilet,Warehouse
ACM
150 mm
Inline
6 in
White
IP44
Ceiling
17106020
36 dB
3
5015135094003
48 W
240 V
-
-
Vent-Axia ACM200 Mixed Flow 200mm (8") In-line Extractor Fan - 17108010
17108010
£276.68
Bathroom,Commercial,Laundry Room,Office,Toilet,Warehouse
ACM
200 mm
Inline
8 in
White
IP44
Ceiling
17108010
41 dB
3
5015135094010
110 W
240 V
-
Commercial
240 L/s
