Product Overview

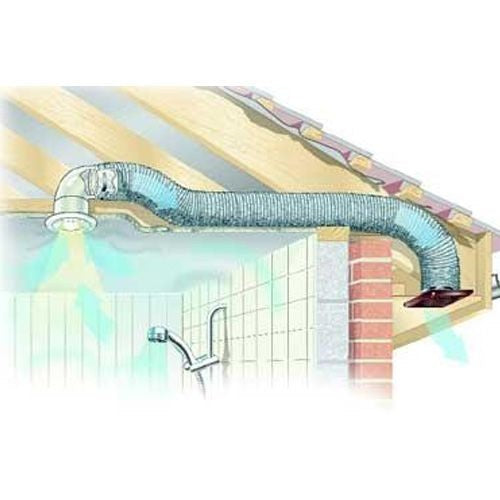

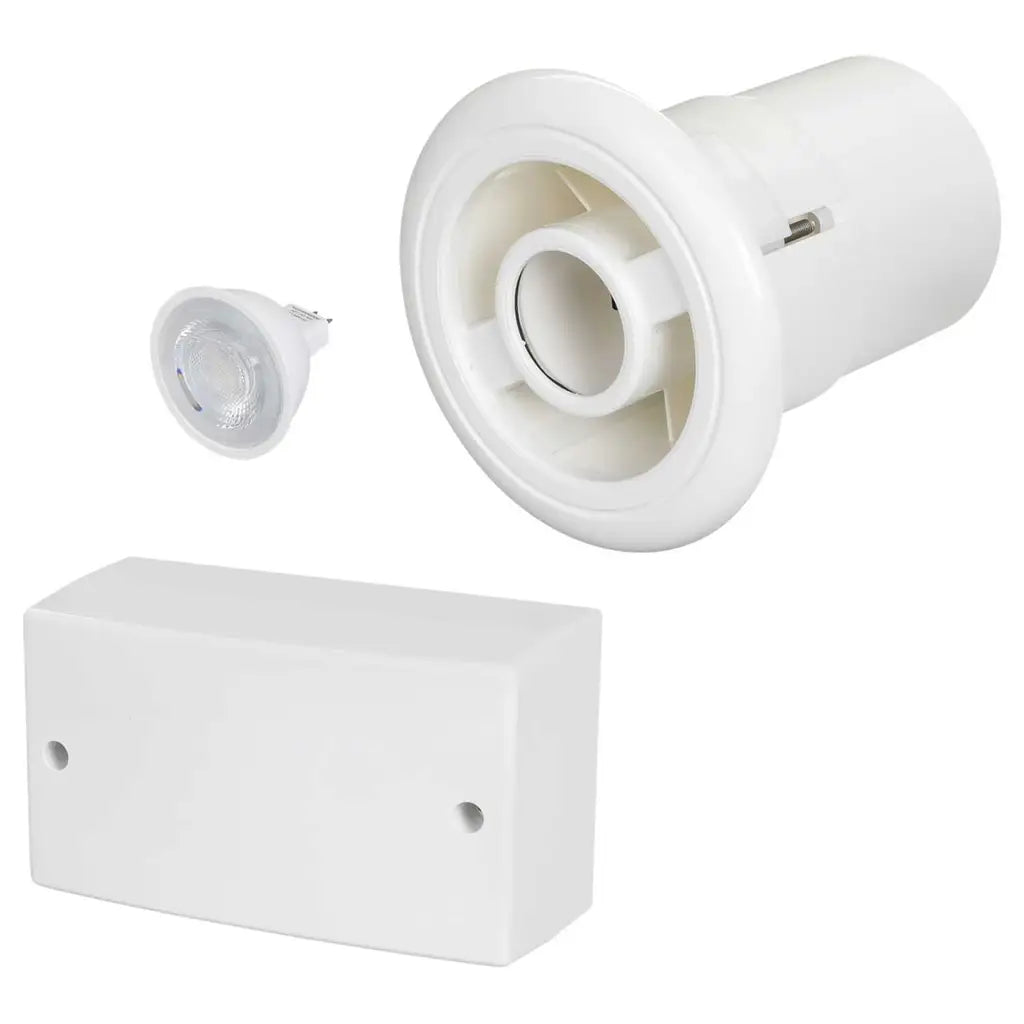

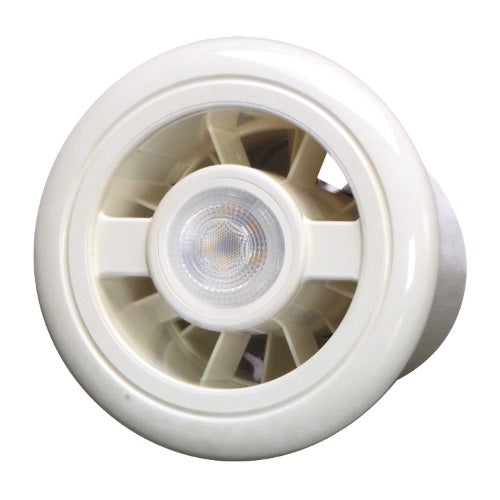

The revolutionary Vent-Axia LuminAir Safety Extra Low Voltage fan and light in a single ceiling mounted fitting. The IPX7 unit is installed directly over a shower in complete safety. Vent-Axia LuminAir extracts moisture and humidity at source, preventing damaging condensation from spreading. At the same time it bathes the shower enclosure in a rich soft light - bringing any dark shower to life.

Criteria

• Specification:
  • 110(FID, m³/h) Extract Performance
  • 31 (FID, I/S) Extract Performance
  • 35 (dB(A) @3m) Sound Pressure Level
  • 42W Electrical Power Rating
  • IPX7 Rated
  • 0.2 Amps @ 240V
• Features:
  • The original fan and light combination.
  • Suitable for shower enclosures and wet areas - can be used within reach of a person using a bath or shower.
  • Safety extra low voltage (SELV).
  • Easy installation.
• Manufacturer Code: 453413

Features

Specification

• 110(FID, m³/h) Extract Performance
• 31 (FID, I/S) Extract Performance
• 35 (dB(A) @3m) Sound Pressure Level
• 42W Electrical Power Rating
• IPX7 Rated
• 0.2 Amps @ 240V

Specification

Applicable Area	Bathroom, Shower, Toilet
Collection Name	Luminair T
Duct Size Diameter	105 mm
Extractor Type	Fan Light Kit
Fan Size Diameter	100 mm
Fan Size Diameter Inches	4 INCH
Fan Speeds	3
Finish Or Colour	White
Integrated Light	Yes
IP Rating	IPX4
Mounting	Ceiling
Voltage	240 v
Depth	180 mm
Height	300 mm
Width	180 mm
