Product Overview

The new Vent Axia Solo Pro is a new and improved version of the Vent Axia Solo model range. With improved aesthetics, sound and installation it has been specifically designed for effective ducted ventilation of internal bathrooms, toilets and other small rooms. Finished in White, the new Solo Pro range can be used with 100mm diameter smooth bore duct in straight runs equal to 50m, yet still meets the 15l/s required by the current Building Regulations Document F for ventilation of bathrooms. IPX4 Rated.

Criteria

• Specification:
  • Extract Performance: 80 m³/hr
  • Extract Performance: 22 l/s
  • Max Watts: 19W
  • Voltage: 230V
  • Sound@3m: 30dB(A)
  • Amps @ 240V: 0.26
  • Dimensions: H: 154mm x W: 154mm x D: 144mm
• Features:
  • 100mm high performance centrifugal extract fan for internal bathrooms, toilets and other small rooms
  • Updated design
  • Now even quieter at just 30dB(A)
  • Extract performance 24l/s
  • Single speed and overrun timer models
  • Suitable for wall, ceiling, panel and window mounting
  • SELV models suitable for installation over or within reach of a shower or bath
  • Suitable for use with flat ducting
  • IPX4 rated - IPX7 rated (SELV)
  • Transformer complies with BS EN 60742
• Manufacturer Code: 409165

Features

• 100mm high performance centrifugal extract fan for internal bathrooms, toilets and other small rooms
• Updated design
• Now even quieter at just 30dB(A)
• Extract performance 24l/s
• Single speed and overrun timer models
• Suitable for wall, ceiling, panel and window mounting
• SELV models suitable for installation over or within reach of a shower or bath
• Suitable for use with flat ducting
• IPX4 rated - IPX7 rated (SELV)
• Transformer complies with BS EN 60742

Short Description

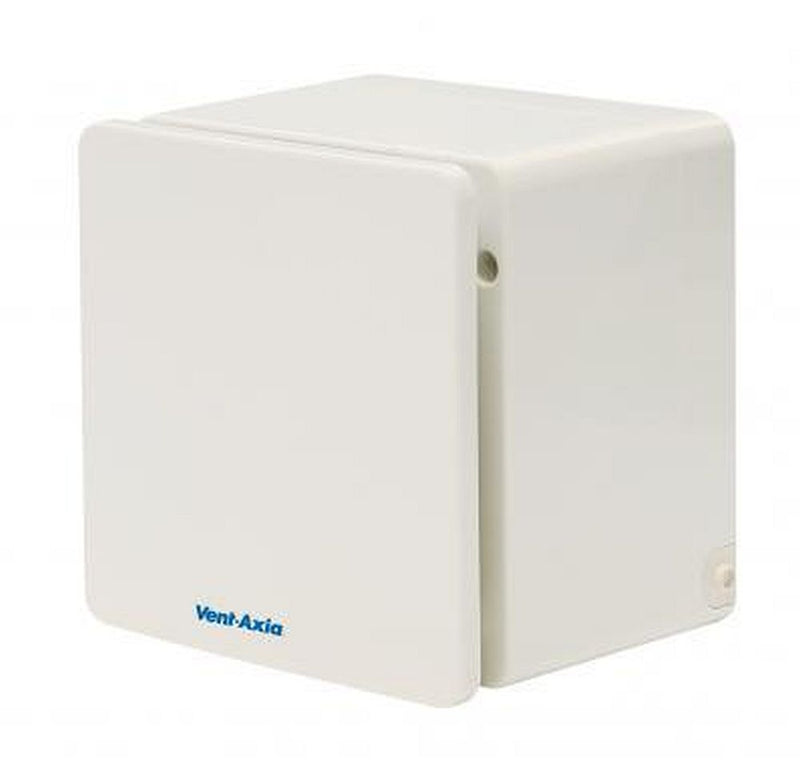

Vent-Axia Solo Pro SELV SVHPT Centrifugal Fan - 409165

Specification

• Extract Performance: 80 m³/hr
• Extract Performance: 22 l/s
• Max Watts: 19W
• Voltage: 230V
• Sound@3m: 30dB(A)
• Amps @ 240V: 0.26
• Dimensions: H: 154mm x W: 154mm x D: 144mm

Specification

Applicable Area	Bathroom, Laundry Room, Toilet
Backdraft Shutter	Yes
Bathroom Zones	Zone 1, 2
Collection Name	Solo Pro
Duct Size Diameter	105 mm
Extractor Type	Centrifugal
Fan Size Diameter	100 mm
Fan Speeds	3
Finish Or Colour	White
Humidistat	Yes
IP Rating	IPX7
Mounting	Ceiling, Panel, Wall, Window
Noise Level Maximum	30 Db
Number Of Speeds	3
power consumption	18 w
Pull Cord	Yes
Timer	Yes
Voltage	24 v
Depth	192 mm
Height	232 mm
Width	192 mm
