Xpelair XID200 8"/200mm Centrifugal Metal Inline Fan - 90104AA

Product Overview

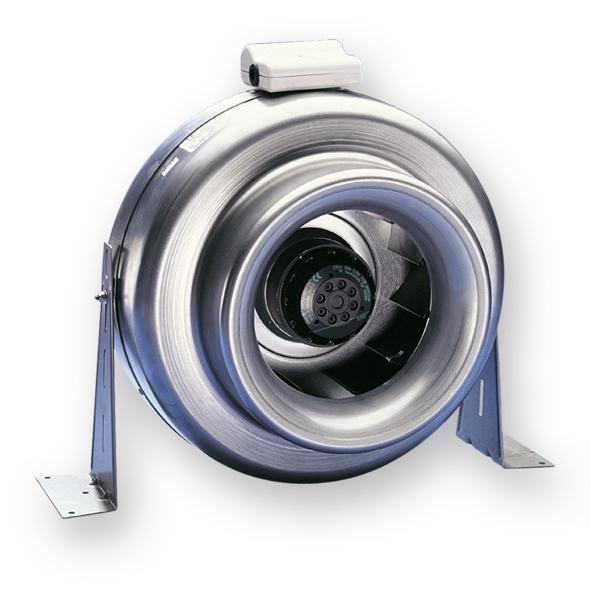

Xpelair XID200 8"/200mm Centrifugal Metal Inline Fan - 90104AA

The Xpelair XID inline range is engineered for trouble-free operation, delivered with adjustable mounting brackets and terminal box.

These practical, reliable XID fans are ideal for ducted applications in shops, schools, factories, offices, pubs, hotels, restaurants, and kitchens and are available in a variety of duct size diameters to suit any application.

The XID range is manufactured in zinc coated corrosion resistant sheet metal with 30mm long spigot connections for ease of connection to ductwork.

The XID fans are suitable for use in ambient temperatures ranging from -30ºC to +50ºC. The fan is fully speed controllable using the XIC1 speed controller.

A full choice of ventilation accessories are available to complement this range to design a complete system.

Features

• Compact and robust zintec steel construction
• Pressure developing, centrifugal inline fan suitable for extract or intake applications
• Extra length 30mm spigots
• Can be mounted at any angle using the universal mounting bracket supplied
• External rotor motor - totally enclosed and lubricated for life
• Insulation Class F. Fitted with safety thermal overload protection - protected to IPX4
• Impeller is backward curved
• Supply Voltage - 220-240V 50Hz

Specification

• Spigot Diameter - 197mm
• Extract Performance (m³/s) 0Pa - 0.29
• 100Pa - 0.23
• 200Pa - 0.17
• 300Pa - 0.12
• 400Pa - 0.08
• 500Pa - 0.02
• Sound Pressure Level (dB(A)@3m) - 29
• Max Electrical Power Rating (W) - 157
• Weight (kg) - 5
