Product Overview

The Xpelair XID inline range is engineered for trouble-free operation, delivered with adjustable mounting brackets and terminal box.
These practical, reliable XID fans are ideal for ducted applications in shops, schools, factories, offices, pubs, hotels, restaurants, and kitchens and are available in a variety of duct size diameters to suit any application.
The XID range is manufactured in zinc coated corrosion resistant sheet metal with 30mm long spigot connections for ease of connection to ductwork.
The XID fans are suitable for use in ambient temperatures ranging from -30ºC to +50ºC. The fan is fully speed controllable using the XIC1 speed controller.
A full choice of ventilation accessories are available to complement this range to design a complete system.

Criteria

• Specification:
  • Spigot Diameter - 97mm
  • Extract Performance (m³/s) 0Pa - 0.08
  • 100Pa - 0.06
  • 200Pa - 0.04
  • 300Pa - 0.01
  • Sound Pressure Level (dB(A)@3m) - 25
  • Max Electrical Power Rating (W) - 85
  • Weight (kg) - 2.5
• Features:
  • Compact and robust zintec steel construction
  • Pressure developing, centrifugal inline fan suitable for extract or intake applications
  • Extra length 30mm spigots
  • Can be mounted at any angle using the universal mounting bracket supplied
  • External rotor motor - totally enclosed and lubricated for life
  • Insulation Class F. Fitted with safety thermal overload protection - protected to IPX4
  • Impeller is backward curved
  • Supply Voltage - 220-240V 50Hz
• Manufacturer Code: 90101AA

Features

• Compact and robust zintec steel construction
• Pressure developing, centrifugal inline fan suitable for extract or intake applications
• Extra length 30mm spigots
• Can be mounted at any angle using the universal mounting bracket supplied
• External rotor motor - totally enclosed and lubricated for life
• Insulation Class F. Fitted with safety thermal overload protection - protected to IPX4
• Impeller is backward curved
• Supply Voltage - 220-240V 50Hz

Short Description

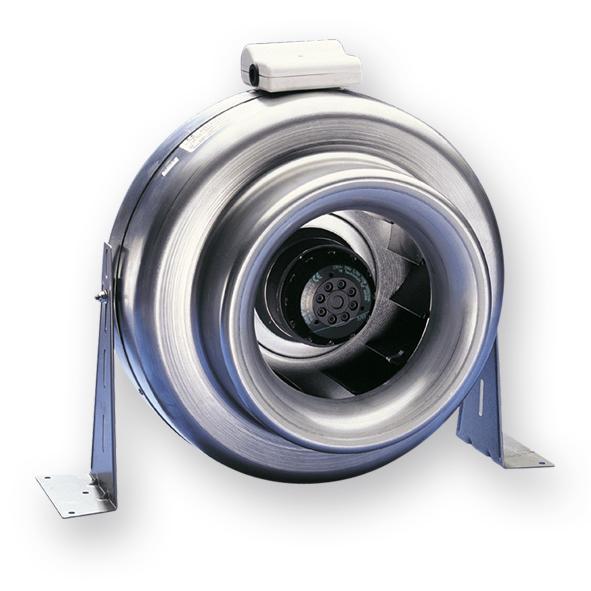

Xpelair XID100 Centrifugal Metal Inline Fan (90101AA)

Specification

• Spigot Diameter - 97mm
• Extract Performance (m³/s) 0Pa - 0.08
• 100Pa - 0.06
• 200Pa - 0.04
• 300Pa - 0.01
• Sound Pressure Level (dB(A)@3m) - 25
• Max Electrical Power Rating (W) - 85
• Weight (kg) - 2.5

Specification

Applicable Area	Conservatory, Living Room, Office, Warehouse
Collection Name	XID
Duct Size Diameter	100 mm
Extractor Type	Inline
Fan Size Diameter	100 mm
Finish Or Colour	Silver
IP Rating	IPX4
Lip Depth	20 mm
Mounting	Ceiling
Number Of Speeds	1
Height	242 mm
Weight	2.5 KG
Width	146 mm
