Product Overview

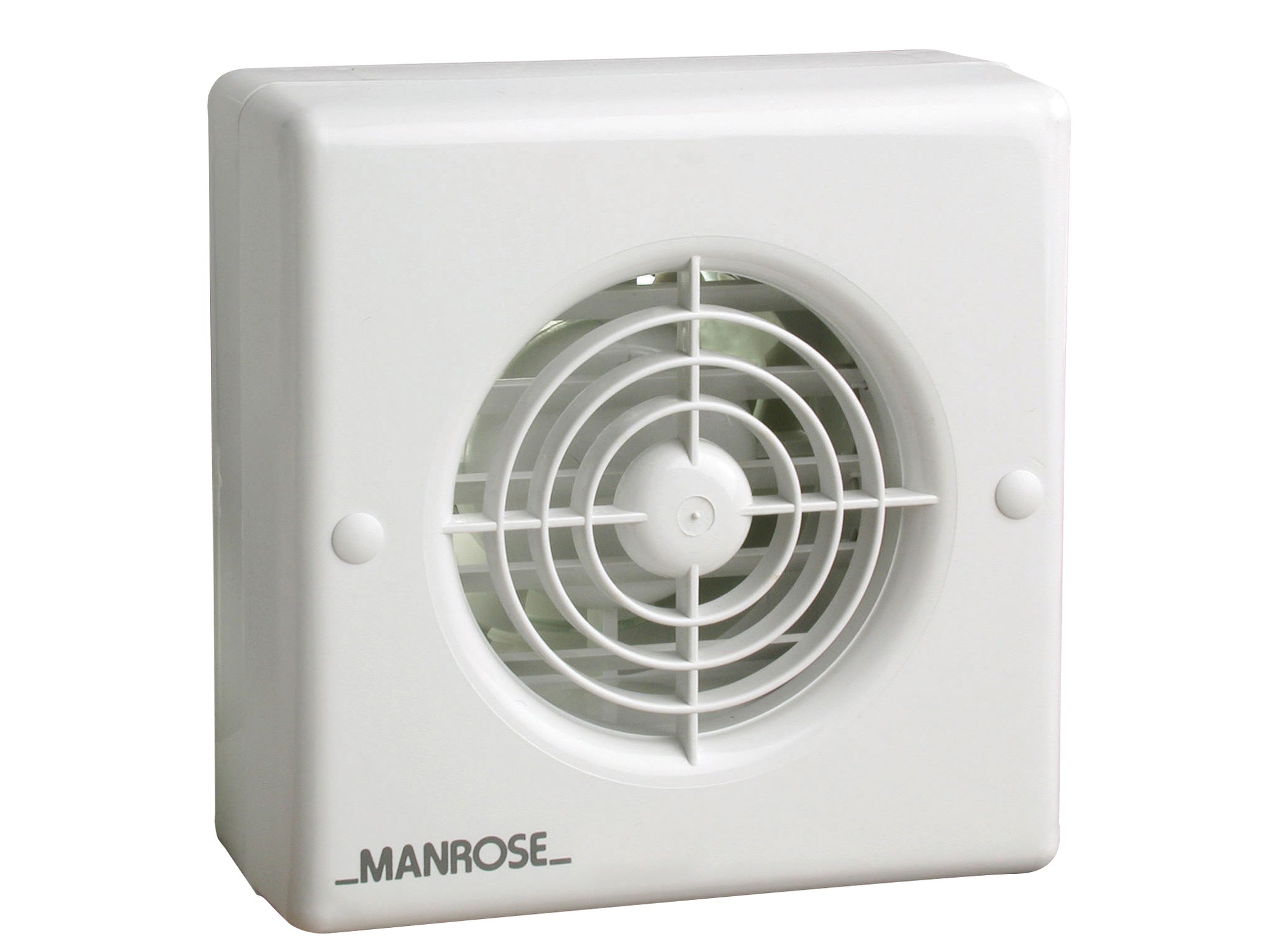

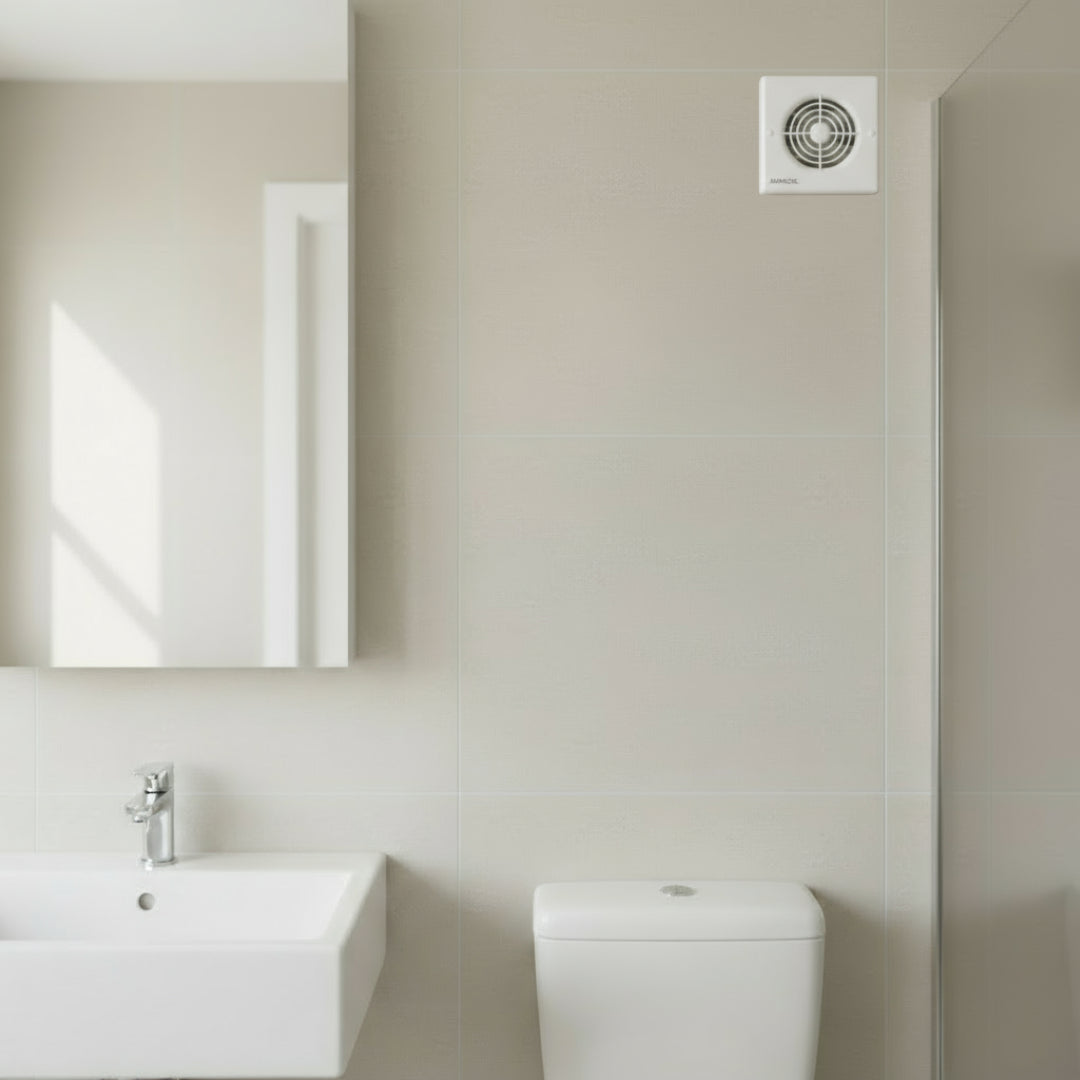

Designed for wall, ceiling or window mounting, the Automatic extractor fan range is available in ten options, all incorporating thermo-activated internal shutters behind the interior grille which open silently approximately 45 seconds after the fan is switched on.

The range is available in three sizes – 100mm (4″), 120mm (5″) and 150mm (6″).

The extract rate of the 100mm series is 85m³/hr, 23 litres per second, whilst the 120mm units for larger bathrooms, toilets and utility rooms are 56% more powerful with an impressive extract rate of 130m³/hr, 36 litres per second. The largest fan in this range, the 150mm (6″), has a maximum performance of 230m³/hr, 64 litres per second.

Power is provided by a single-phase induction motor with pre-oiled bearings for a maintenance-free life. The units are all manufactured using high gloss ABS thermoplastics for strength and durability, aesthetics and easy cleaning.

Downloads

Download XF Product Datasheet

Specification

Applicable Area	Bathroom
Extractor Type	Axial
Finish Or Colour	White
Humidistat	No
IP Rating	IP44
Minimum Voltage	230V
Mounting	Ceiling, Wall, Window
MPN	XF100A
Noise Level Maximum	41dB
Old GTIN	5020953553007
power consumption	20W
Timer	No
Voltage	240V
Depth	108mm
Height	163mm
Width	163mm
