Product Overview

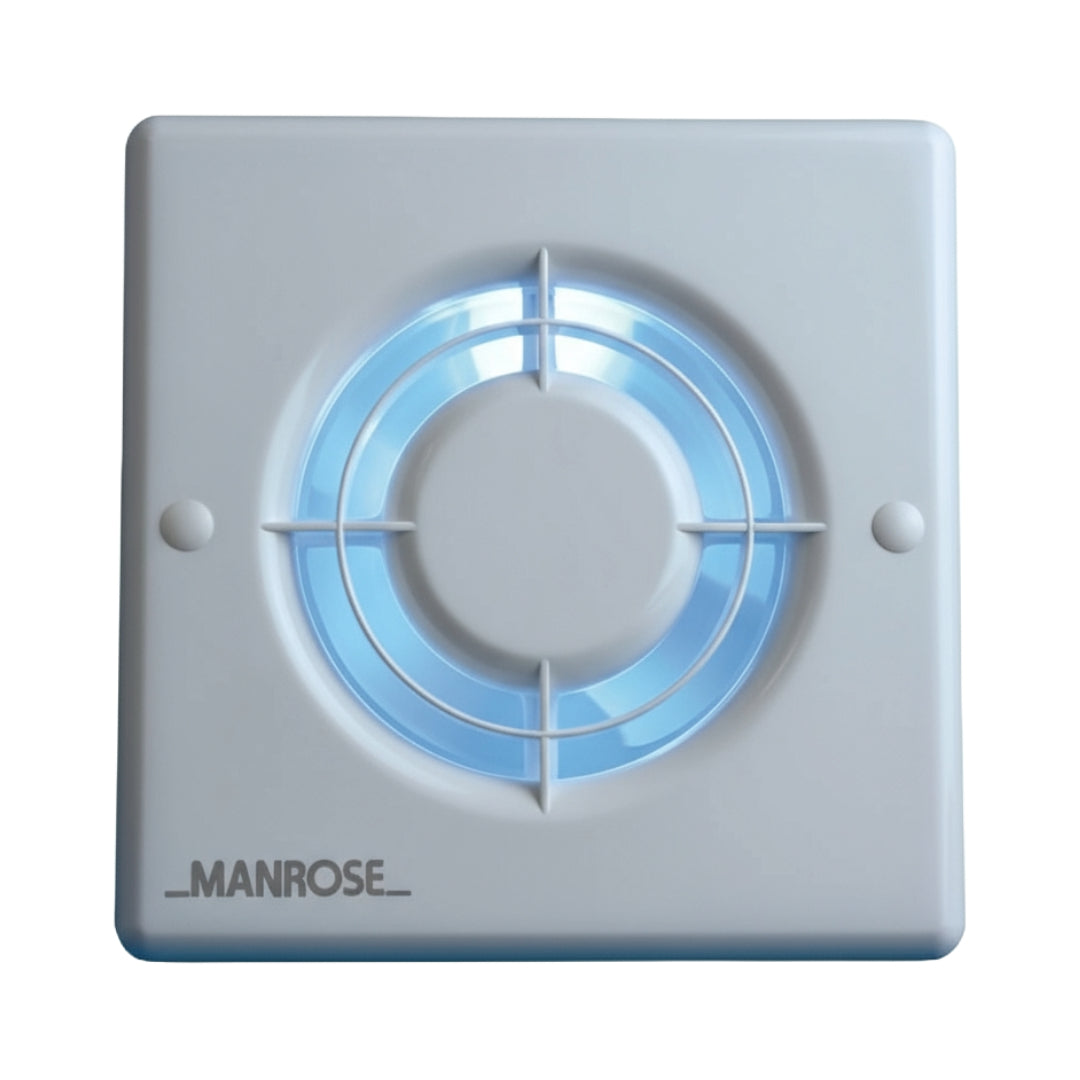

This comprehensive range of 4" fans from Manrose have been designed for Wall, Ceiling or Window mounting for use in bathrooms, toilets or kitchens. Quiet and efficient the 100mm (4") series has an impressive extract rate of 85m³/hr, 23 litres per second. The units are are all manufactured using high ABS thermoplastics for strength, durability, aesthetics and easy cleaning. XF100 Series designed for wall mounting (pullcord version wall mounting only) through 100mm (4") diameter flexible or rigid pipes or Manrose low profile, flat channel ducting systems.

• Single phase consuming 15 Watts
• Designed for wall, ceiling or window mounting, this comprehensive range offers a wide selection of models for use in bathrooms and toilets.
• Quiet and efficient, the 100mm (4") series has an impressive extract rate of 85m³/hr, 23 litres per second, and is available in the eleven options detailed opposite.
• The units are all manufactured using high ABS thermoplastics for strength and durability, aesthetics and easy cleaning.
• Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance- free life.
• Designed to comply with the Building Regulations on Ventilation (F1).
• Mounting: Wall
• Noise: 41.0 dB(A)
• Hole Size: 4"
• Type of Extractor: Axial
• Number of Speeds: 1
• Extraction Rate: 23 litres per second
• XF/WF100 Series 85m³/hr, 23 l/s
• 100mm (4")
• Maximum pressure: 20 p.a.
• Fan speed: 2400 r.p.m.
• Sound volume: 41.0 dB(A)
• Maximum operating temperature: 40ºC.
• Dimensions: Height: 163mm x Width: 163mm x Depth: 75mm

Short Description

Manrose 100mm 20W Axial Bathroom Fan

Specification

• Energy Type: 220-224V - AC.50Hz.
• Width: 163mm.
• Height: 163mm.
• Projection: 30mm.
• Recess Depth: 45mm.
• Cutout: 98mm.
• Finish: White
• Maximum pressure: 20 p.a.
• Fan speed: 2400 r.p.m.
• Sound volume: 41.0 db(A).
• Maximum operating temperature: 40°C.

Specification

Applicable Area	Bathroom, Toilet
Collection Name	XF100
Extraction Rate Litres Second	23 l
Extractor Type	Axial
Fan Size Diameter	4 INCH
Fan Speeds	1
Finish Or Colour	White
Humidistat	Yes
Installation Kit	Yes
IP Rating	IP24
Lip Depth	30 mm
Minimum Voltage	220 v
Mounting	Ceiling, Wall
power consumption	14 w
SELV	Yes
Timer	Yes
Voltage	240 v
Height	163 mm
Weight	0.01 KG
Width	163 mm
