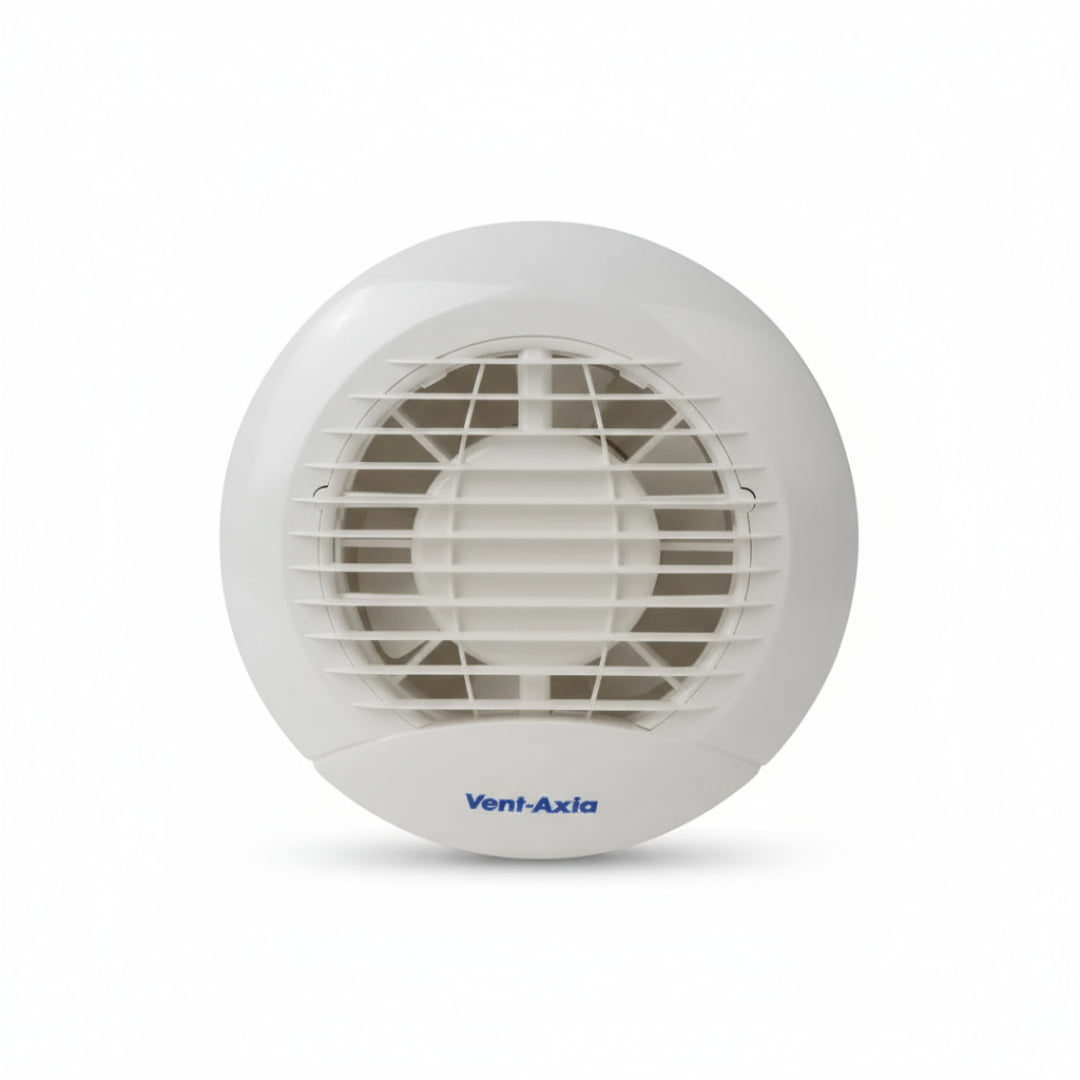

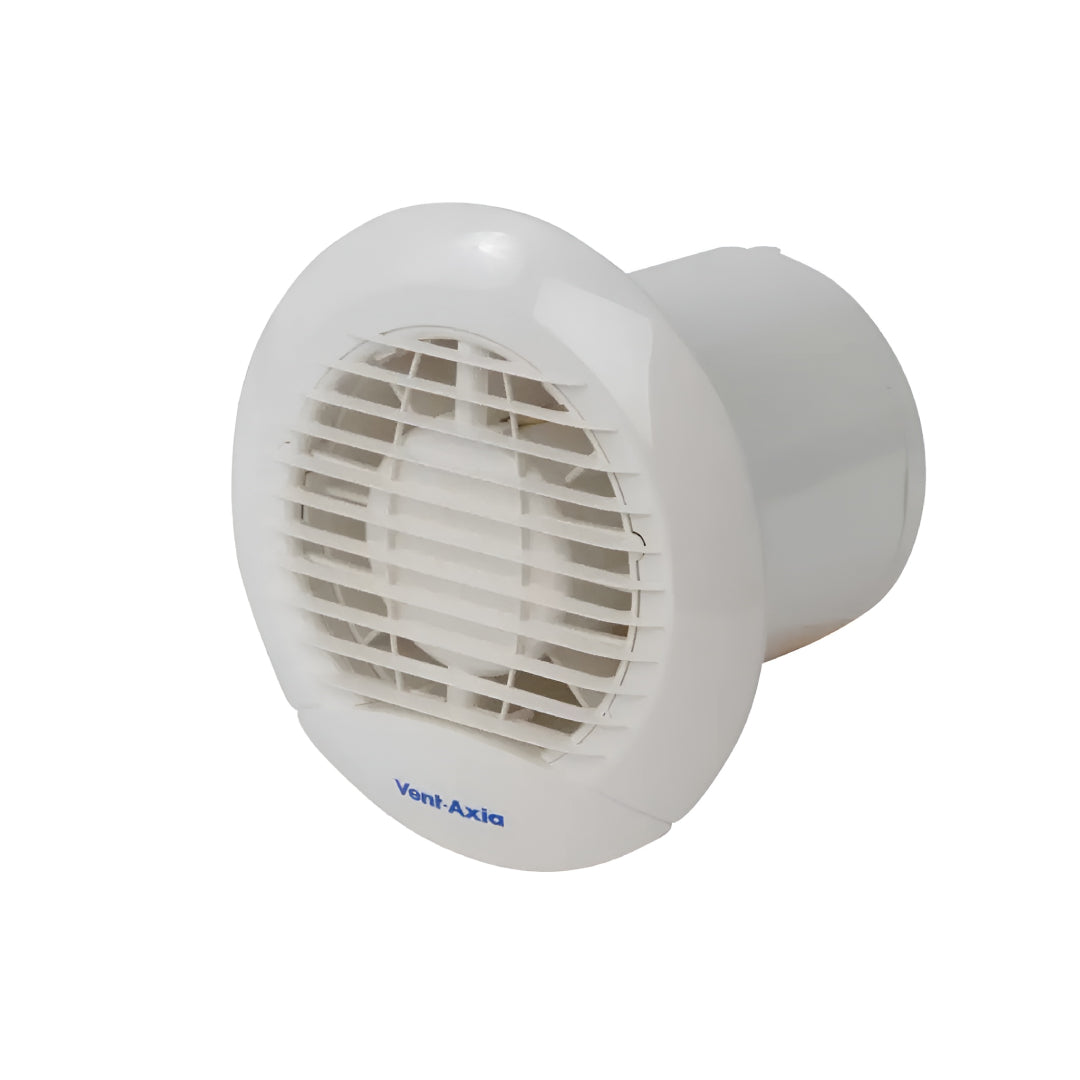

Vent-Axia Eclipse 150X 150mm (6") Extractor Fan With Back-Draft Shutter - 427283

Product Overview

The Vent-Axia Eclipse 150X is a circular axial extractor fan designed for wall or ceiling mounting in kitchens, bathrooms, utility rooms or toilets. Its 150 mm (6-inch) duct size enables stronger airflow compared to smaller fans, making it suitable for larger rooms or those with greater ventilation demand. It features an integral back-draft shutter that closes when the fan is off to prevent external air, odors or drafts from entering the building when the fan is idle.

In terms of performance, this model delivers an airflow of about 260 m³/h (approximately 72 l/s) while consuming roughly 16 W of power. It produces sound levels of about 45 dB(A) at 3 m, making it relatively quiet for a fan of its capacity. Its front face diameter is approximately 201 mm, and the entire unit has a shallow depth (around 19 mm faceplate) for a discreet appearance on the wall.

The Eclipse 150X holds an IPX4 rating, making it splash-proof and suitable for installation in bathrooms (within zones permitted under wiring regulations). It is designed to comply with Building Regulations (Approved Document F) for intermittent extract ventilation, ensuring it meets minimum airflow requirements. Its unobtrusive, almost flush-mount styling and back-draft shutter make it an effective yet visually subtle choice for domestic ventilation projects.

Downloads

Download 427283 Product Manual

Specification
