Vent-Axia Eclipse 100XT 100mm (4") Bathroom Extractor Fan with Timer - 427282

Product Overview

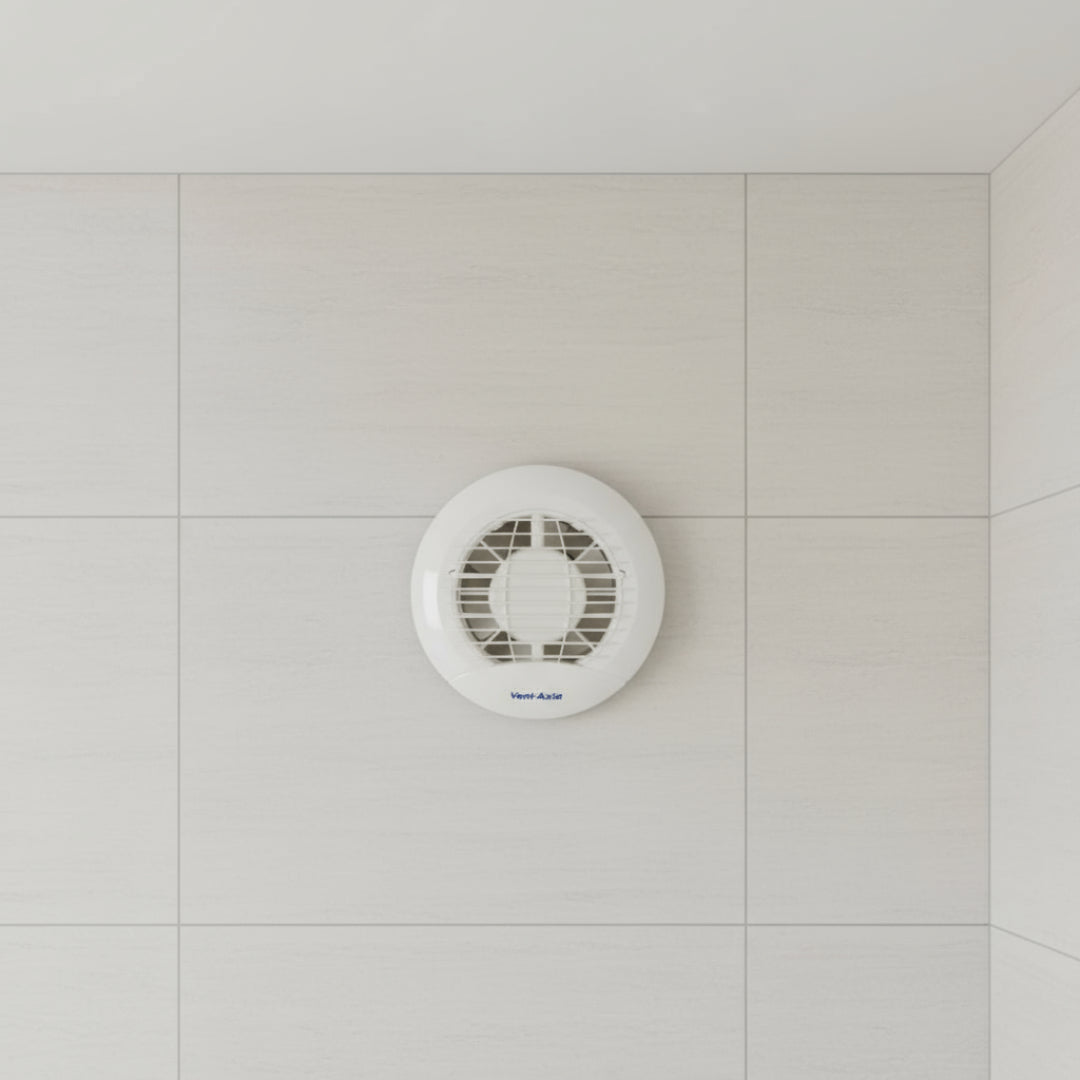

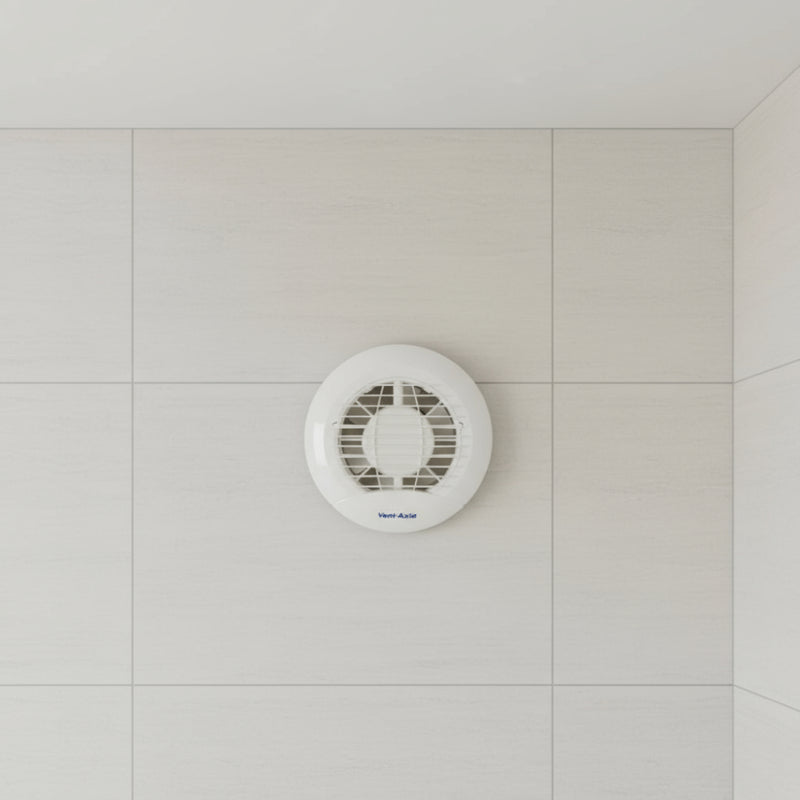

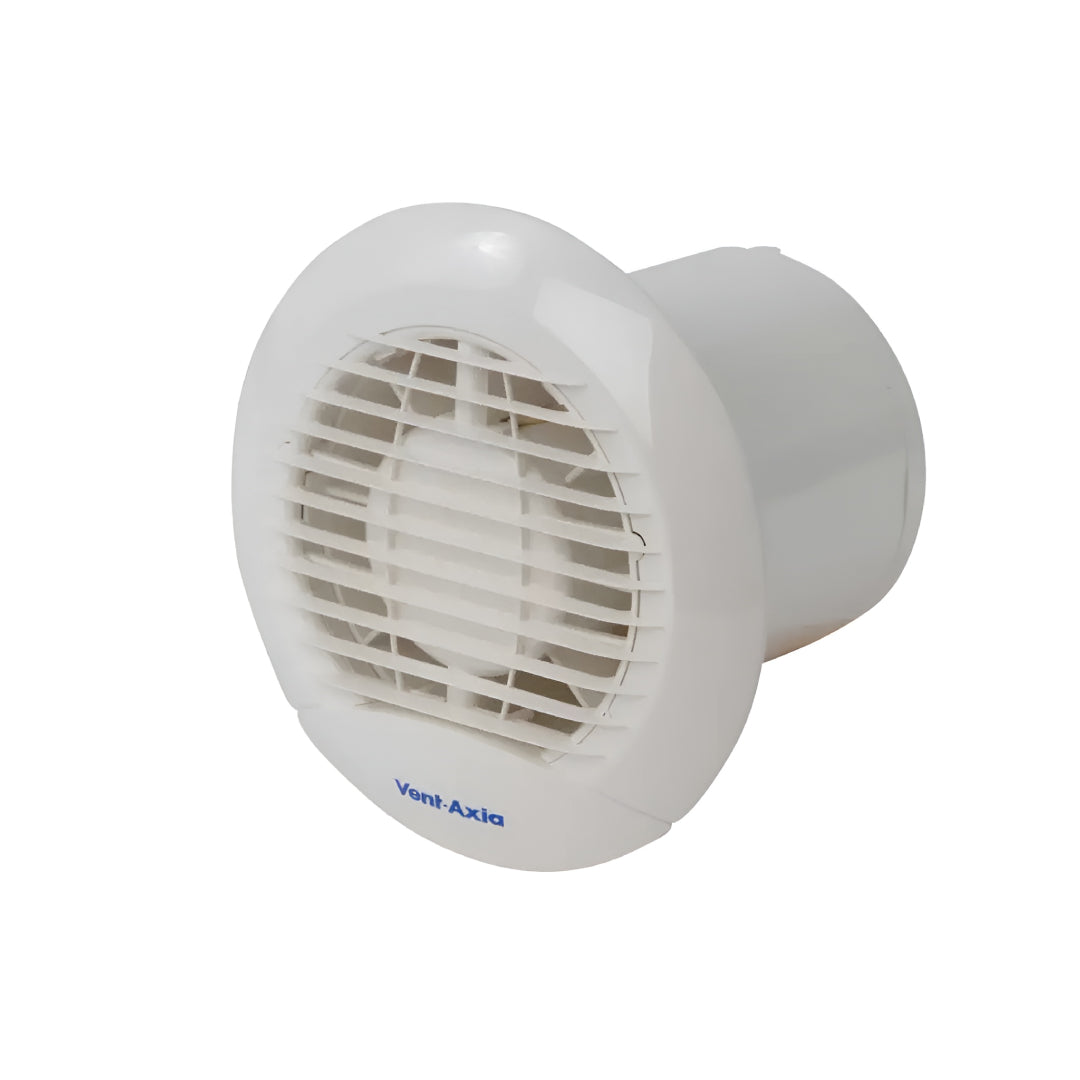

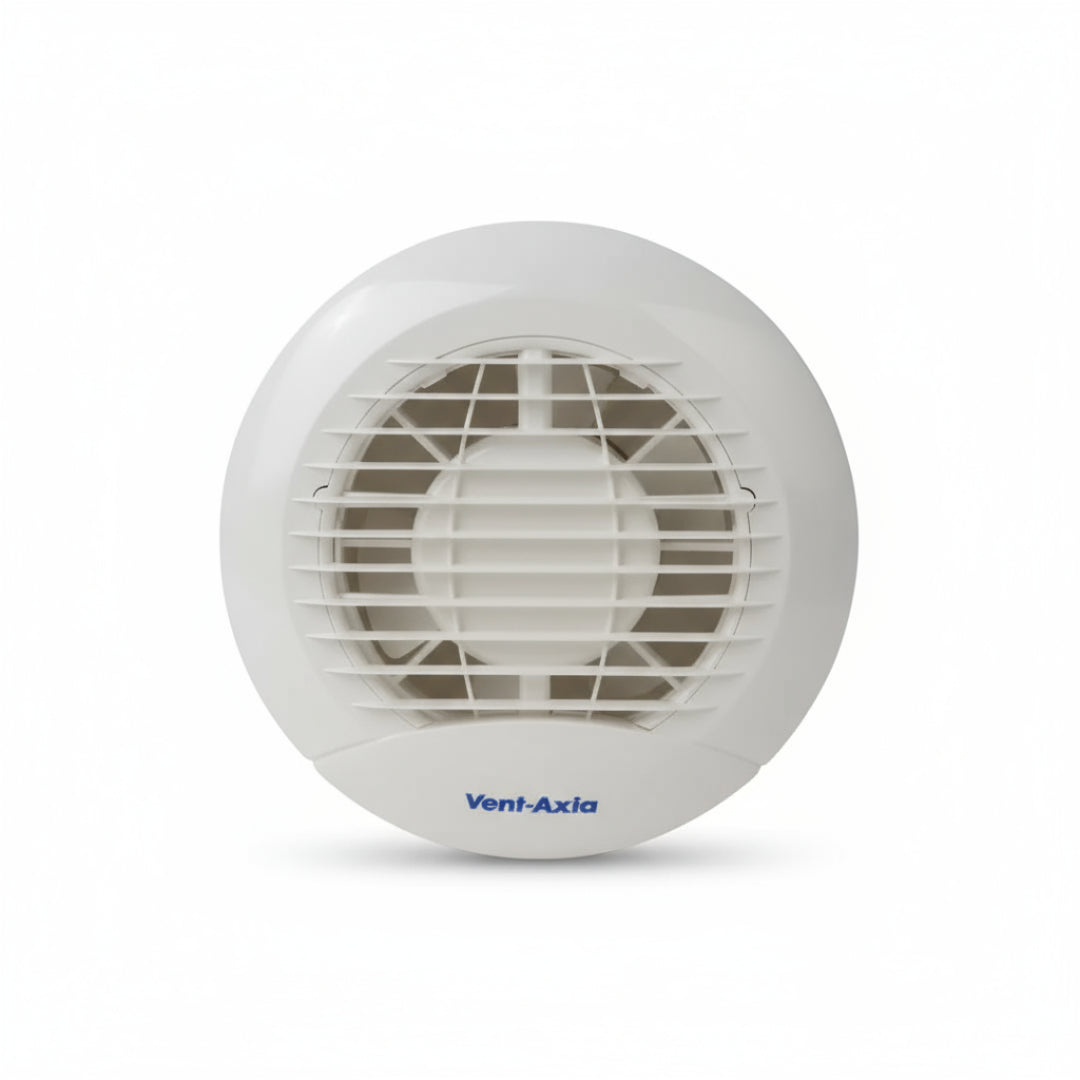

The Vent-Axia Eclipse 100XT is a compact axial extractor fan designed specifically for bathroom or toilet ventilation. It features a 100 mm (4-inch) duct size and can be mounted on a wall or ceiling, giving flexibility during installation. It also includes a built-in backdraught shutter to prevent external air or odors reentering the room when the fan is not running.

In terms of performance, this model delivers approximately 25 litres per second (around 90 m³/h) of airflow, while using a modest amount of power (around 14–23 W depending on source). It operates at a sound level of about 38 dB (measured at 3 metres), making it relatively quiet for a bathroom environment.

One of the key conveniences is the adjustable over-run timer, which allows the fan to continue operating for between 5 to 30 minutes after the room is vacated, helping to remove lingering moisture. With its sleek, discreet circular design, IP44 rating (suitable for bathroom zones), and two-year warranty, it’s a generally practical and trade-trusted option for residential ventilation upgrades.

Downloads

Download 427282 Product Manual

Specification
