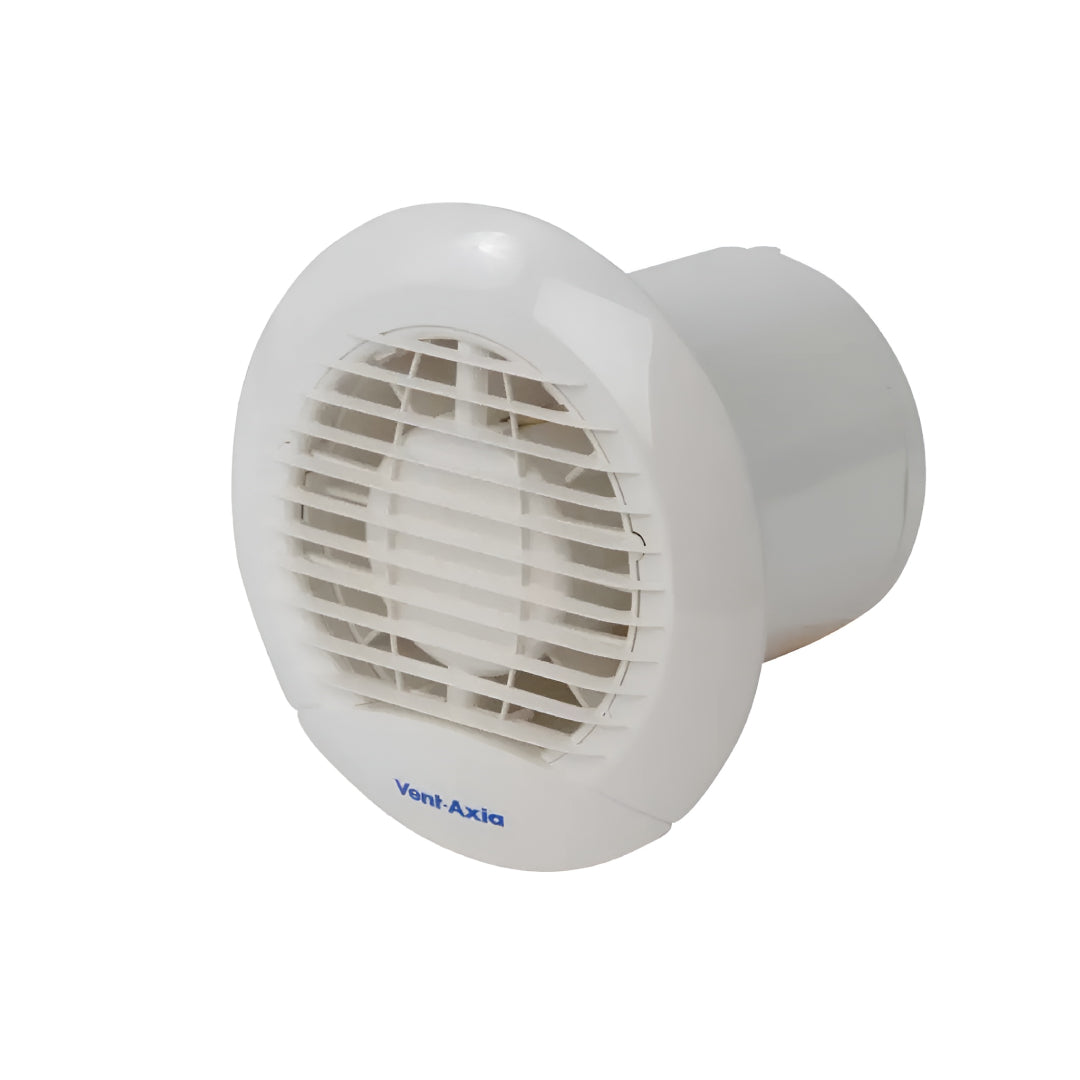

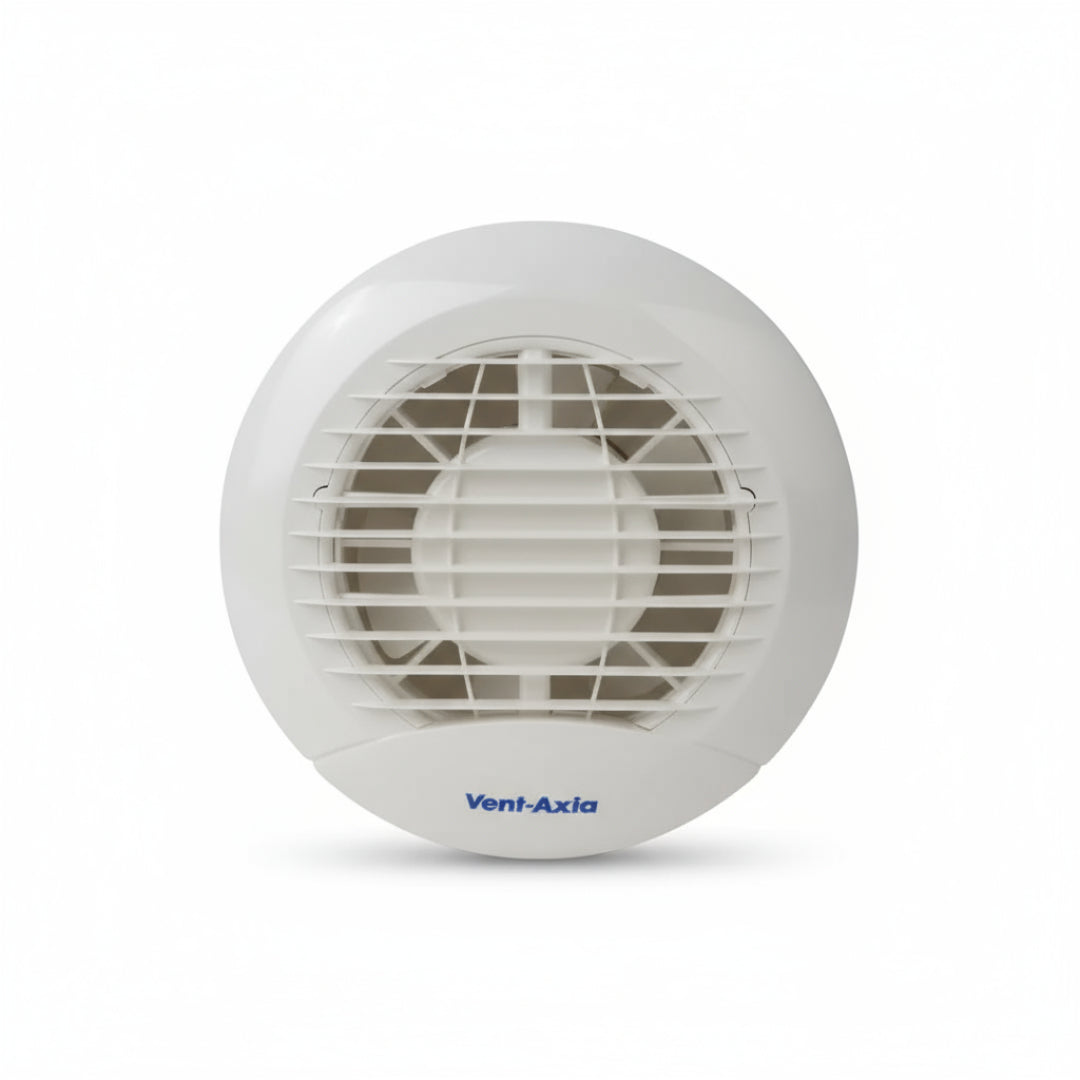

Vent-Axia Eclipse 150XP 150mm (6") Axial Extractor Fan with Pullcord & Backdraught Shutter - 427313

Product Overview

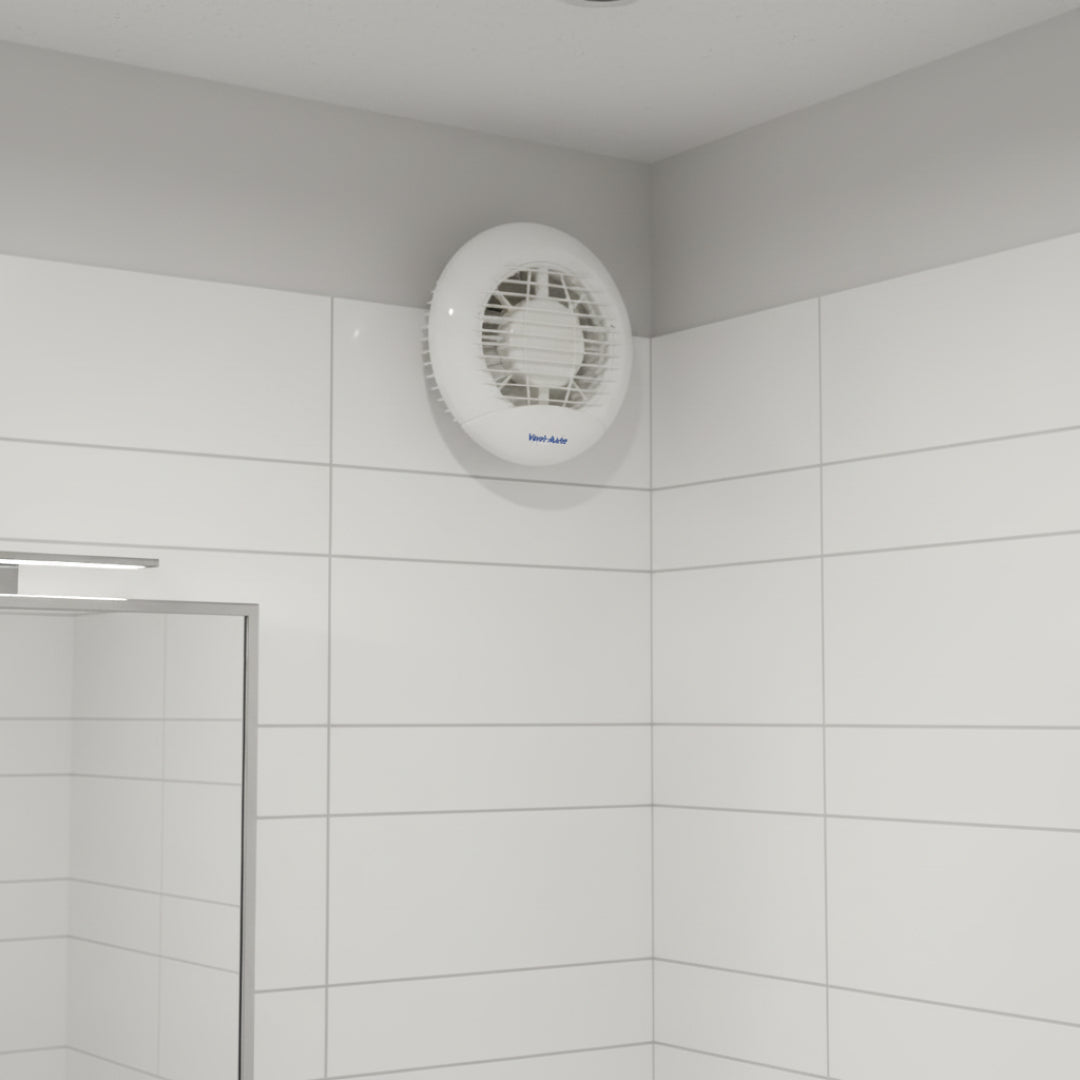

he Eclipse 150XP is a 150 mm (6-inch) axial extractor fan designed for mounting on walls, ceilings or panels in bathrooms, kitchens, utility rooms or toilets. It comes with a pullcord control built in, giving simple manual switching without needing a separate switch. An integral back-draught shutter helps prevent unwanted airflow or odors entering the space when the fan is off.

In terms of performance, it delivers an extraction rate of around 220 m³/h (≈ 61 l/s) while consuming only ~16 W of power. i-Its acoustic output is about 45 dB(A) measured at 3 metres, which is relatively moderate for a fan of this capacity. The front face diameter is about 201 mm, and its low profile design results in only about 19 mm protrusion from the mounting surface.

With an IPX4 rating, the unit offers splash protection, making it suitable for bathroom zones specified under wiring regulations. It is compliant with Building Regulations (Approved Document F) for intermittent extract ventilation, meaning it meets required standards for domestic ventilation. Its clean circular appearance and flush mounting make it a discreet choice in modern interiors.

Downloads

Download 427313-spec-sheet

Specification
