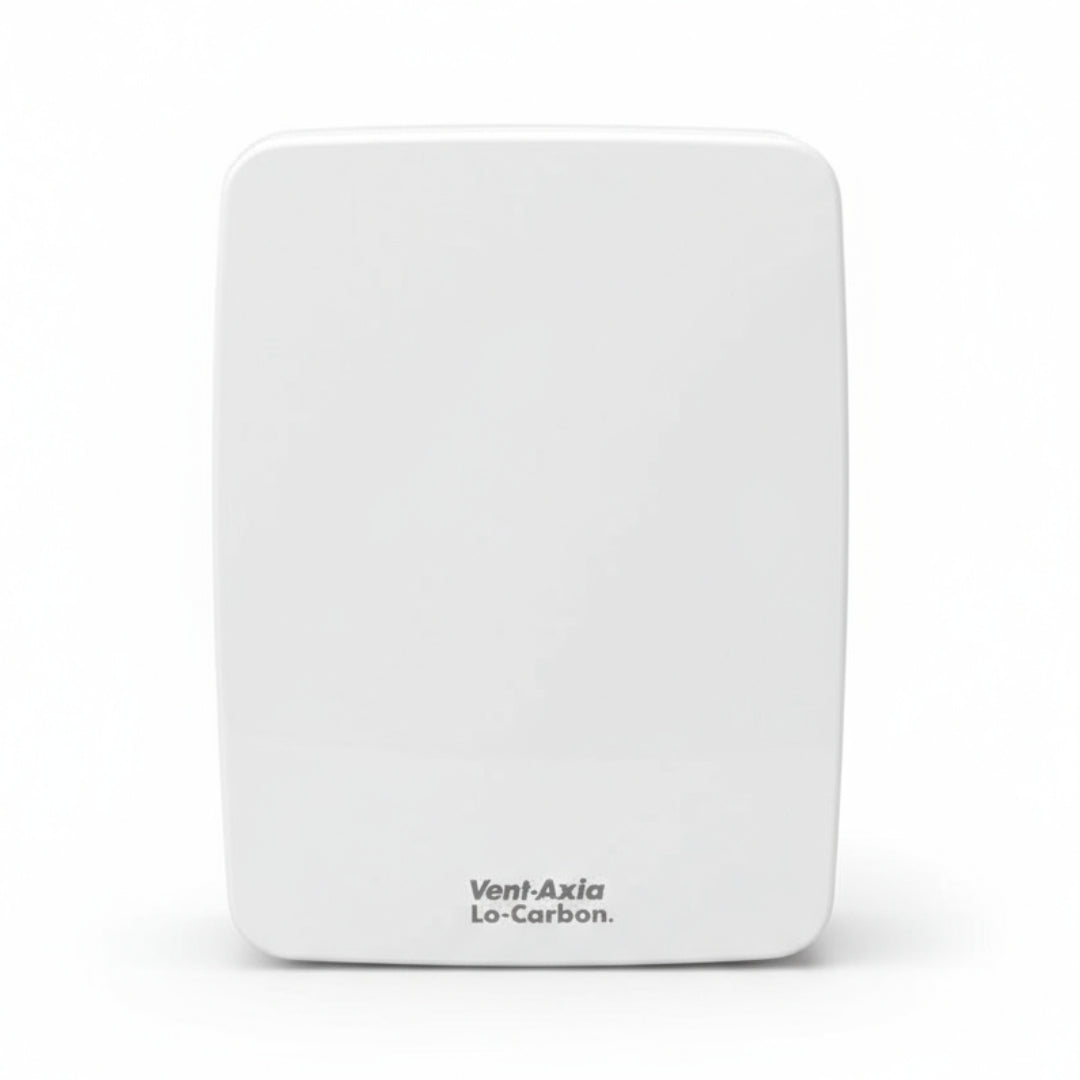

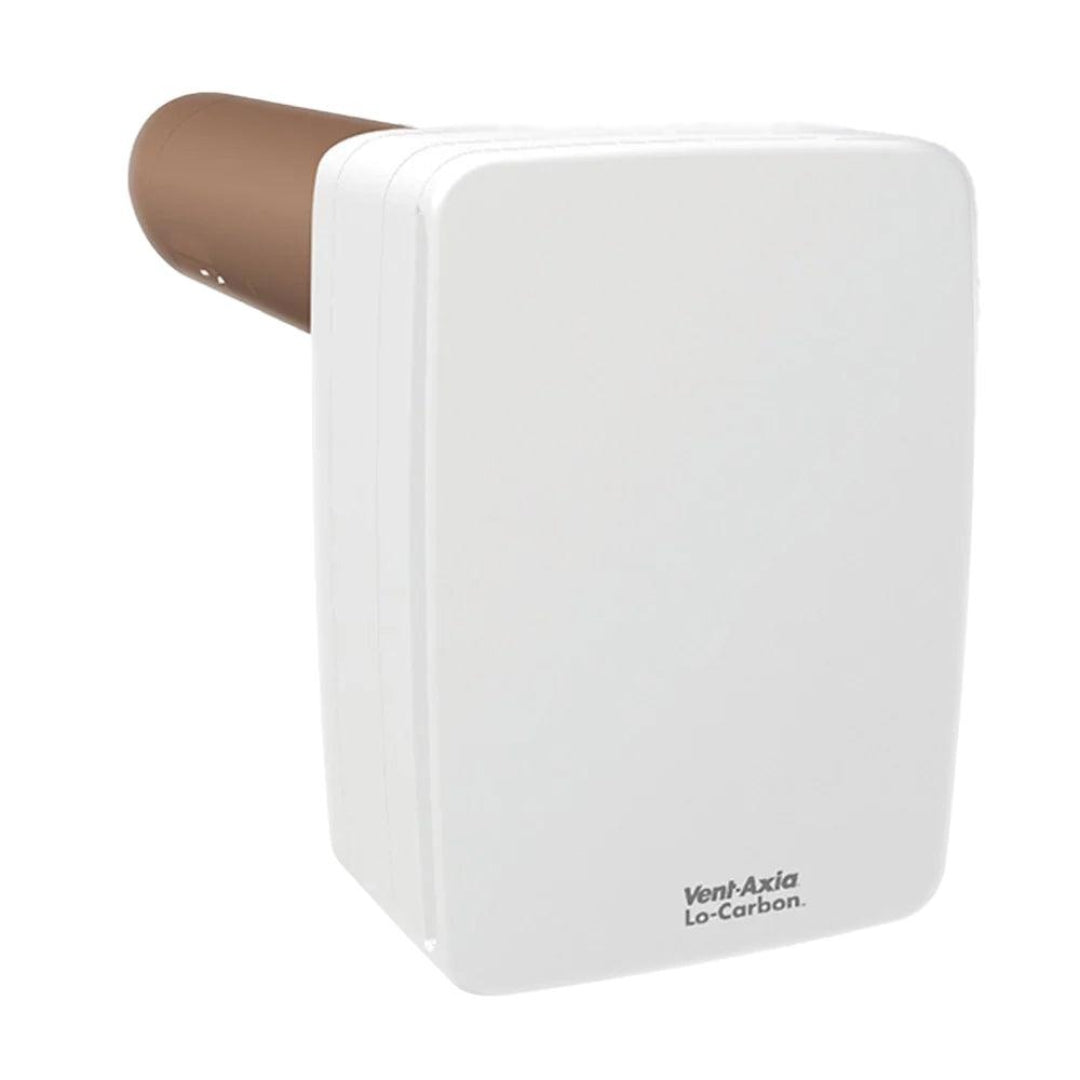

Vent-Axia Lo-Carbon Tempra 100mm (4") Heat Recovery Extractor Fan with Timer - 443310

Product Overview

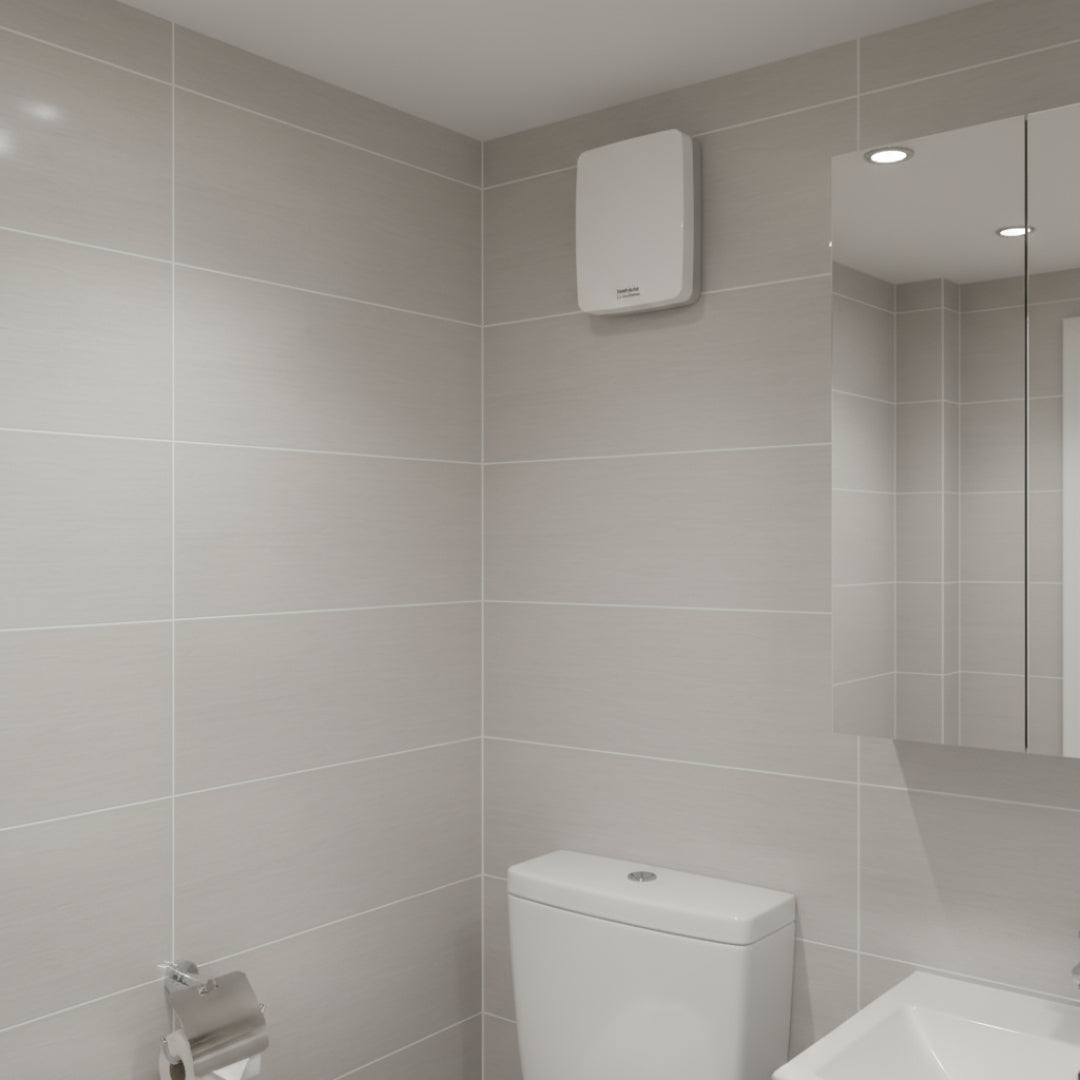

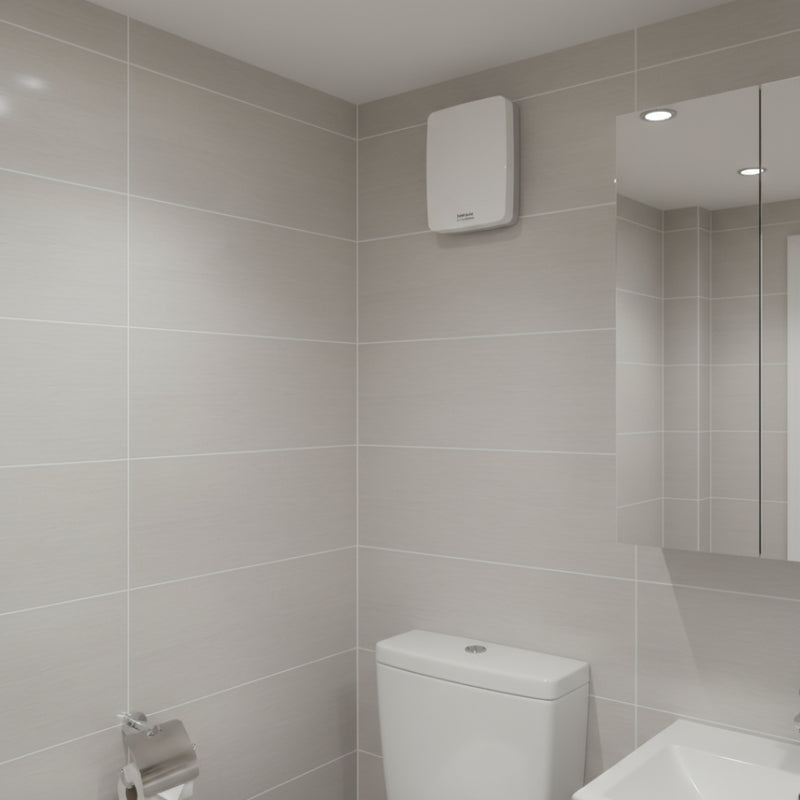

The Tempra 443310 is a single-room through-the-wall heat recovery fan designed for retrofit into existing 100 mm (4″) wall penetrations. It fits in the same diameter hole as a standard extractor fan, making it ideal for upgrading bathrooms, kitchens, toilets or utility spaces without the need for major structural work. The unit is rated IPX4, ensuring suitability in moisture-prone environments like bathrooms.

In operation, the Tempra T offers continuous trickle ventilation modes of either 6 l/s or 9 l/s, with a boost mode up to 15 l/s for intermittent extraction when high demand (e.g. showering) occurs. It features a built-in overrun timer (adjustable) that keeps the unit running after the triggering event (e.g. light switch) to clear residual humidity. The heat recovery core of the unit can reclaim up to ~78% of the thermal energy from the extracted air and use it to warm incoming fresh air, reducing heat loss and improving energy efficiency.

From an installation and user perspective, the Tempra T includes a manual “summer setting” which can be engaged to disable the heat recovery intake shutter, effectively placing the unit into extract-only mode during hot periods. It operates with very low power consumption (trickle power as low as ~3.2 W) and is engineered for quiet operation (e.g. ~20 dB in trickle mode) to minimise disturbance. The unit is offered in spigot lengths suitable for typical wall depths (e.g. 320 mm) with options for deeper walls where required

Downloads

Download 443310 Product Manual

Specification
